| Peak output power | - |
| Power rating | 30 W |
| Power rating at 2 Ω | - |
| Power rating at 4 Ω | - |
| Power rating at 8 Ω | - |
| Power rating at 16 Ω | - |
| Power rating at 100 V | - |
| Power rating with 4 Ω bridged operation | - |
| Power rating with 8 Ω bridged operation | - |
| Output impedance | - |
| Channels | 1 |
| Zones | 1 |
| Inputs | 4.5 mV/600 Ω (mic 1-3), 120 mV (line 2-3), 60 mV (line 4-5) 90 mV (tel.) |
| Attenuation factor | - |
| Frequency range | 60-15,000 Hz |
| Crossover network | - |
| Crossover frequency | - |
| Integrated limiter | - |
| Equalizer bass | yes |
| Equalizer midrange | - |
| Equalizer treble | yes |
| S/N ratio | 72 dB (mic) 85 dB (line) |
| Crosstalk attenuation | - |
| THD | < 0.5% |
| Phantom power | 48 V |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 100 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | 2.5 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 320 mm |
| Height | 95 mm |
| Depth | 245 mm |
| Rack spaces, RS | - |
| Weight | 3.95 kg |

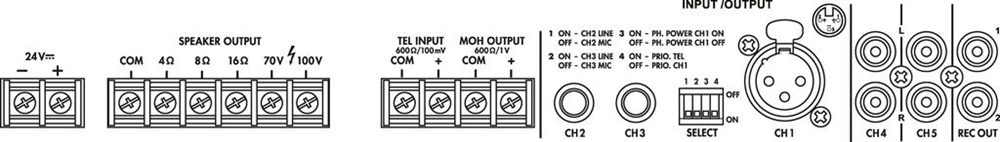

| Connections | 1 x XLR (mic 1), 2 x 6.3 mm jack (mic 2-3/line 1-2), 2 x RCA L/R (line 3-4), 2 x RCA (master out), 1 x IEC (FM), screw terminals (emergency, MOH, DC 24 V, speakers) |
