100V forstærker 1000W digital - PA-9100D

Fjernlager
På lager, 2-4 Hverdage
Bedømmelse for 100V forstærker 1000W digital - PA-9100D
Produktet er endnu ikke bedømt

Mono class D PA mixing amplifier

1 x 1,000 W
Class D concept with PASCAL amplifier module
Energy-efficient concept due to high efficiency
Lightweight design due to compact switch-mode power supply
Silent operation due to fanless cooling concept

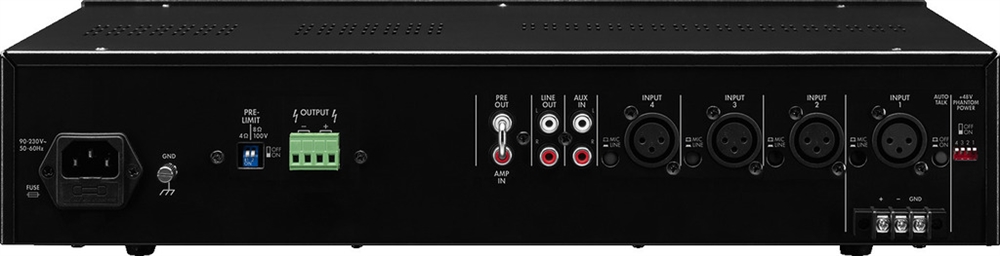

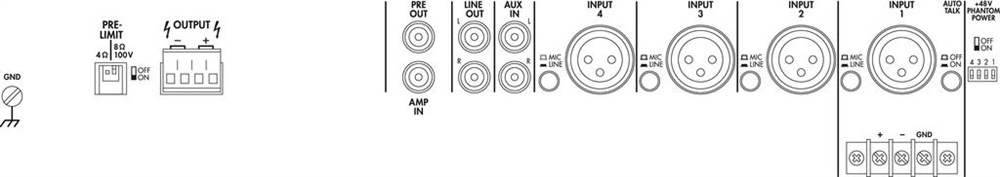

4 balanced mic/line inputs
Mic 1 with priority circuit and automatic talkover
Additional connection for desktop microphone via screw terminal
1 aux input
Speaker outputs via screw terminals
Line output
Insert facility, e.g. for effect units, equalizers, feedback controllers

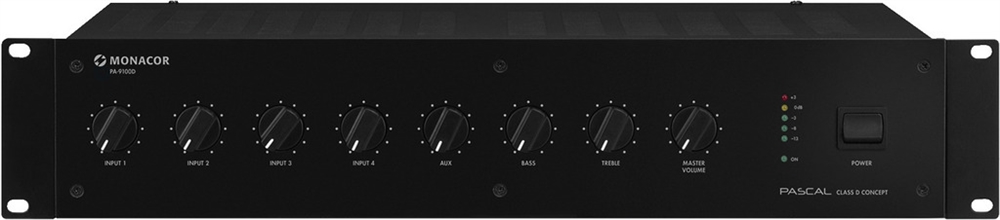

Input level control and output level control
2-way tone control for the output
48 V phantom power supply for each microphone input, to be activated individually
Limiter switch 4 Ω/8 Ω/100 V
Removable mounting brackets

Peak output power	-
Power rating	1,000 W
Power rating at 2 Ω	-
Power rating at 4 Ω	900 W
Power rating at 8 Ω	1,000 W
Power rating at 16 Ω	-
Power rating at 100 V	1000 W/9.2 Ω
Power rating with 4 Ω bridged operation	-
Power rating with 8 Ω bridged operation	-
Output impedance	4-8 Ω
Channels	5
Zones	-
Inputs	3 mV (mic), 200 mV (line), 140 mV (aux)
Attenuation factor	-
Frequency range	20-20,000 Hz
Crossover network	-
Crossover frequency	-
Integrated limiter	yes
Equalizer bass	± 10 dB/100 Hz
Equalizer midrange	-
Equalizer treble	± 10 dB/10 kHz
S/N ratio	> 80 dB
Crosstalk attenuation	-
THD	< 0.1%
Phantom power	48 V
Mains voltage	∼ 90-230 V
Mains frequency	50-60 Hz
Power consumption, operation	1,030 VA
Power consumption, standby	-
Standby current	-
Operating voltage (possible alternative)	-
Power supply (possible alternative)	-
Admiss. ambient temp.	0-40 °C
Width	482 mm
Height	88 mm
Depth	275 mm
Rack spaces, RS	2
Weight	5.3 kg
Connections	4 x XLR (mic/line), 1 x RCA L/R (aux), screw terminals (speakers)

Varenr.: 1000149
