Peak output power
|
25 W
|
|
Power rating
|
10 W
|
|
Power rating at 100 V
|
10 W
|
|
Channels
|
1
|
|
Inputs
|
1 V/47 kΩ (bal.), 22 kΩ (unbal.)
|
|
Frequency range
|
42-18,000 Hz
|
|
S/N ratio
|
97 dB
|
|
THD
|
< 0.1%
|
|
Phantom power
|
9-12 V
|
|
Operating voltage (possible alternative)
|
DC 12-26 V, rec. DC 24 V
|
|
Admiss. ambient temp.
|
-20 °C to +40 °C
|
|

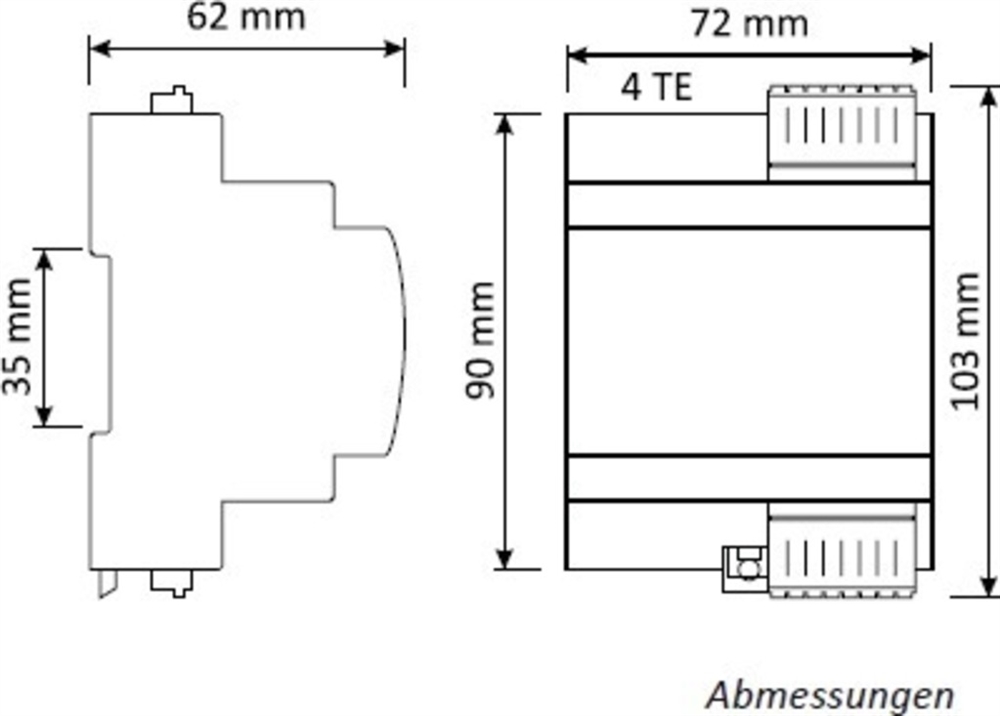

Width
|
72 mm
|
|
Height
|
103 mm
|
|
Depth
|
62 mm
|
|
Weight
|
300 g
|
|
Connections
|
spring-loaded terminals
|
|
Packaging dimensions (W x H x L)
|
0.072 x 0.095 x 0.075 m
|
|
Gross weight
|
0.3284 kg
|
|
Net weight
|
0.3 kg
|
