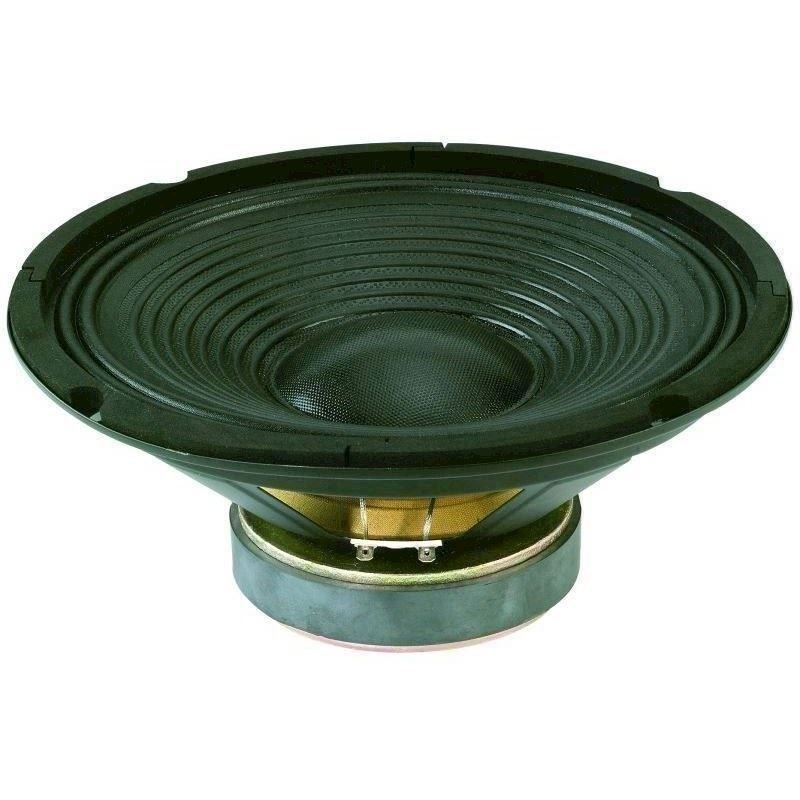

10'' højttaler - SP-252PA - MONACOR

• Fjernlager
• På lager, 2-4 Hverdage
• Bedømmelse for 10'' højttaler - SP-252PA - MONACOR

  Produktet er endnu ikke bedømt

•
  469,00DKK ved 1 stk.

Vis uden moms

Universal bass-midrange speaker, 75 W, 8 Ω
For bass-midrange applications, also in power speaker systems.



Impedance (Z)	8 Ω
Transmission method	-

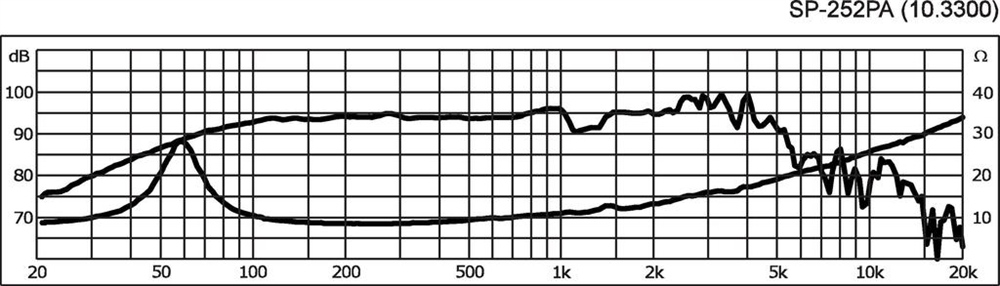

Frequency range	f3-4,500 Hz
Resonant frequency (fs)	55 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	75 W
Peak music power output	150 W
Sensitivity	90 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	0.18 mm/N
Moving mass (Mms)	30 g
Mech. Q factor (Qms)	2.13
Electr. Q factor (Qes)	1.0
Total Q factor (Qts)	0.7
Equivalent volume (Vas)	30 l
DC resistance (Re)	7.7 Ω
Force factor (BxL)	9.7 Tm
Voice coil induct. (Le)	0.6 mH
Voice coil diameter	Ø 39 mm
Voice coil former	aluminium
Linear excursion (XMAX)	±2.5 mm
Eff. cone area (Sd)	350 cm2
Magnet weight	850 g
Magnet diameter	Ø 119 mm
Mounting cutout	Ø 232 mm
Mounting depth	110 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

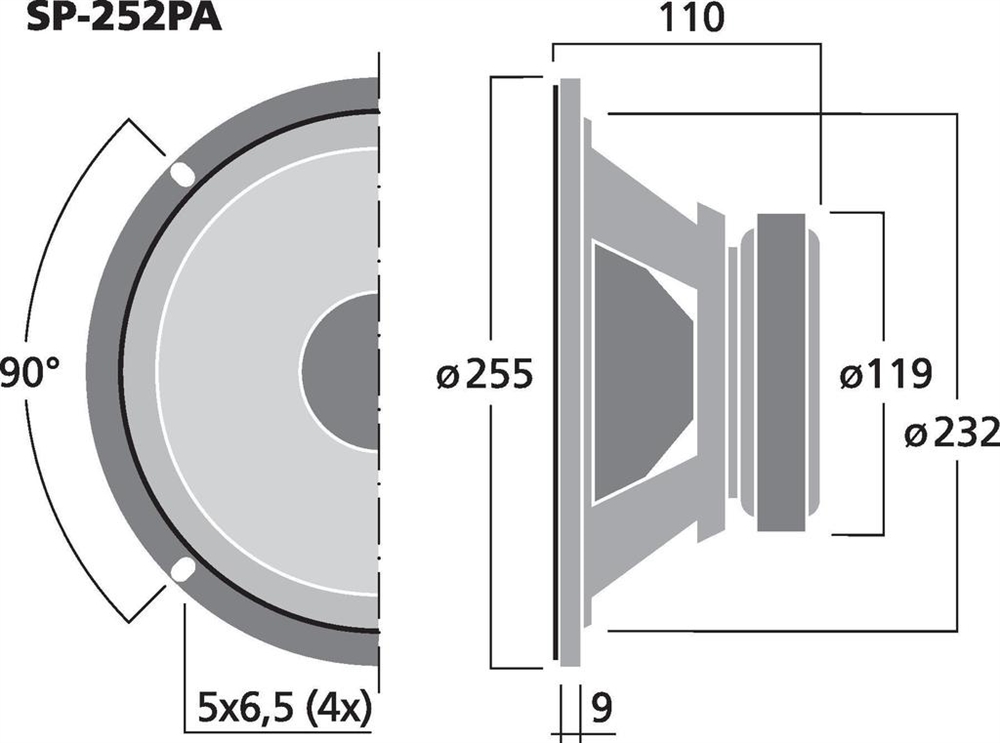

Dimensions	Ø 255 mm x 110 mm
Outside diameter	Ø 255
Width	Ø 255 mm
Height	-
Depth	110 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	2.21 kg
Packing unit	1
Type of speaker	10"

Varenr.: 103300
