Power and DMX splitter in one
2 Multipin S19 connectors (1 in, 1 out) with loop-through functionality
6 Power Pro True outlets from Seetronic
6-way DMX splitter (5-pin in/out)

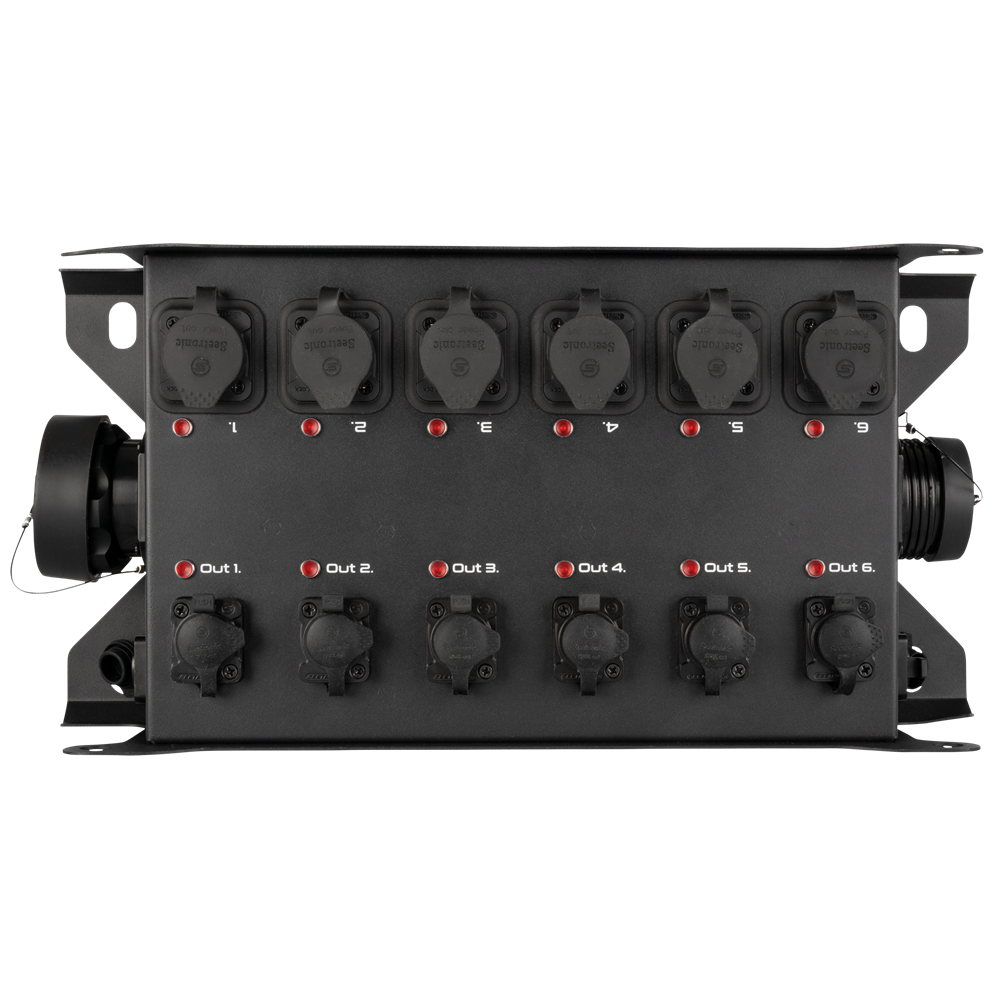

Status LEDs on each power and DMX output
Compatible with Multipin S19 and Socapex 19-pin connectors
Quick-lock mounting option for easy installation

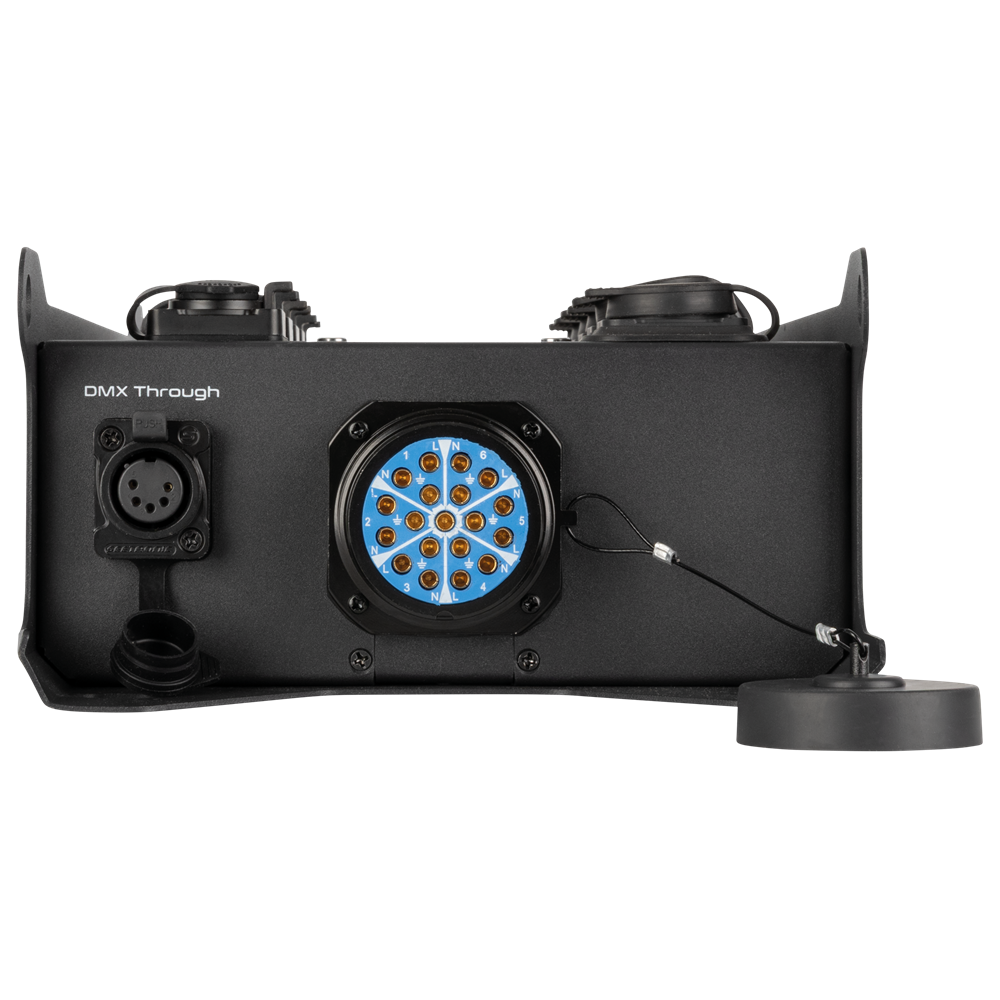

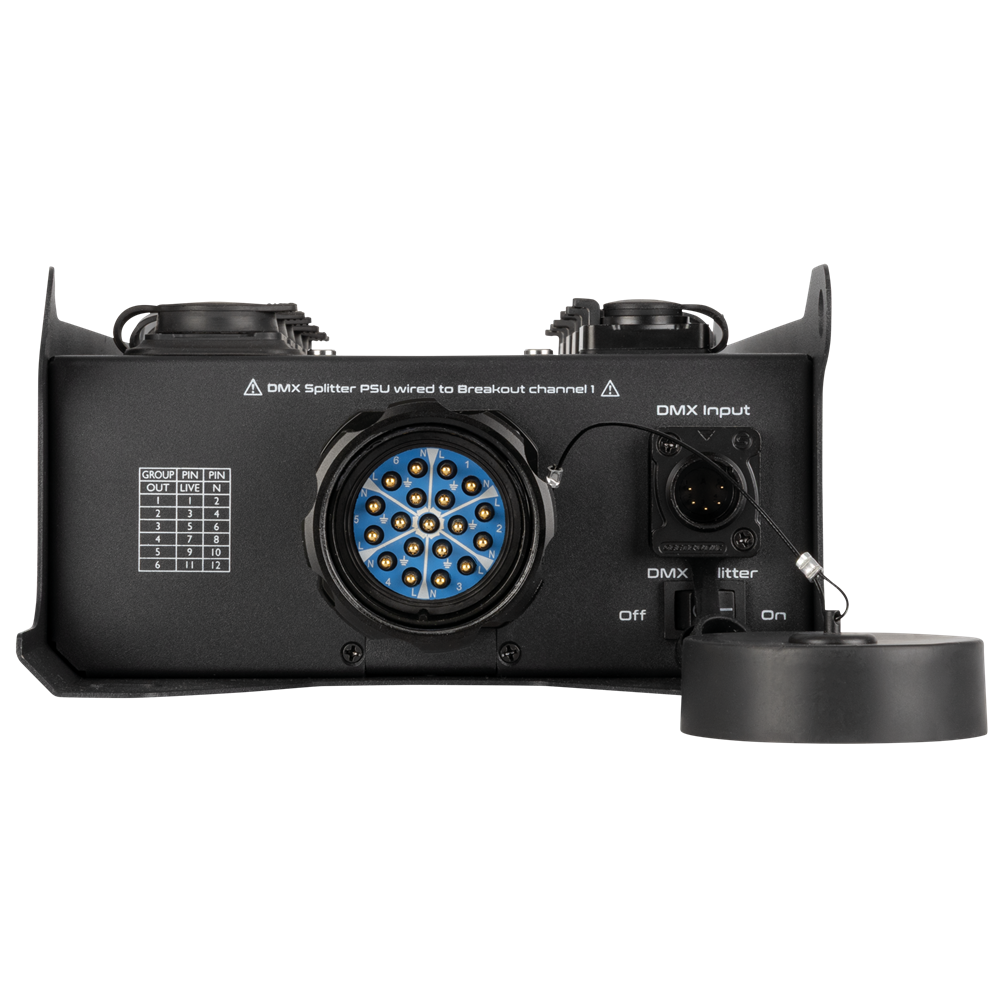

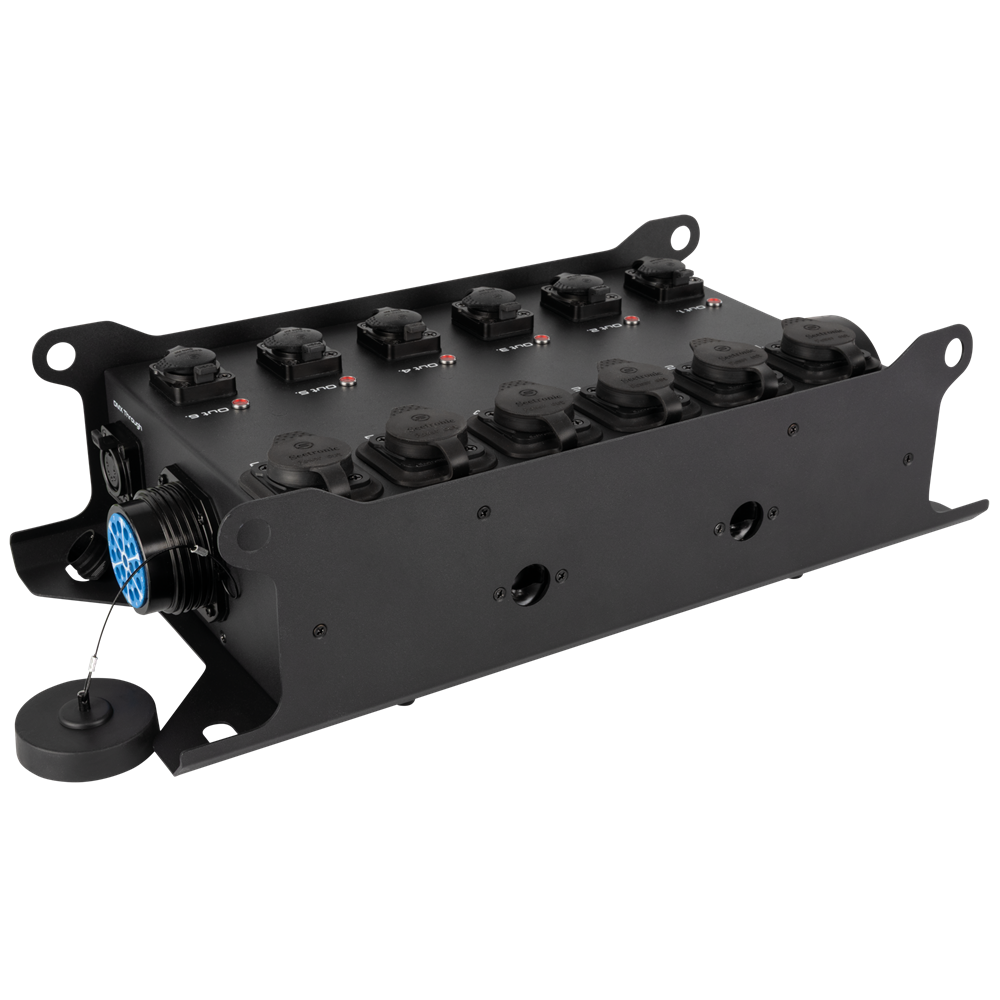

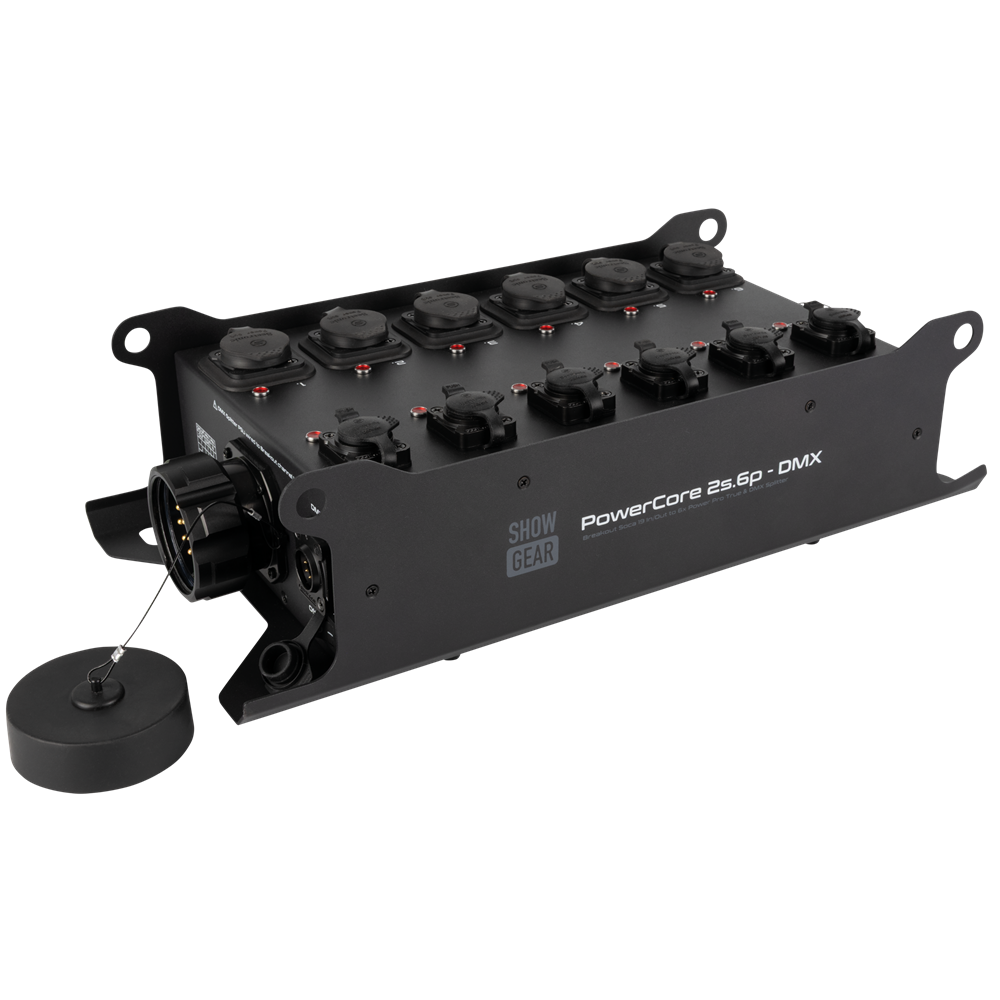

The Showgear PowerCore 2s.6p - DMX combines power and DMX signal distribution in one breakout box. It has two Multipin S19 connectors (male/female), 6 high-quality Power Pro True outlets from Seetronic and an integrated, 6-way DMX splitter. Its loop-through design connects all channels from input to output, while simultaneously powering the Power Pro True sockets for efficient distribution. The 5-pin DMX input is split into six 5-pin DMX outputs. For quick and convenient status checks, each power outlet includes a voltage indication LED, while each DMX output includes an activity LED.
It is designed for seamless integration with the Showgear PowerCore series and is compatible with all PowerCore units equipped with a Multipin S19 output connector, as well as other power distributor brands with Socapex 19-pin connectors. For flexible installation, the PowerCore 2s.6p - DMX offers multiple mounting holes for permanent setups and a quick-lock mounting point for fast, tool-free attachment using the optional PowerCore Quick Lock Bracket.
Power Supply: 230 V AC 50/60 Hz
Power Consumption: 8 W
Rated Current (A): 16 A
Power Connector In: Multipin S19
Power Connector Out: Power Pro True / Multipin S19
DMX Connector In: XLR 5P
DMX Connector Out: XLR 5P
Length (mm): 405 mm
Height (mm): 112 mm
Width (mm): 198 mm
Weight: 4.3 kg
IP Rating: IP20 (indoor use only)
Material: Metal
Colour: Black
LED Indicators: Power / Signal
Maximum Ambient Temperature: 40 °C
Minimum Ambient Temperature: -5 °C
Mounting Options: Quick-Lock / Wall
Fixed Mounting Option: 11 mm
Safety Attachment: Yes
