2 Multipin S19 connectors (1 in, 1 out) with loop-through functionality
6 CEE 16A (1P+N+PE) outlets from PCE

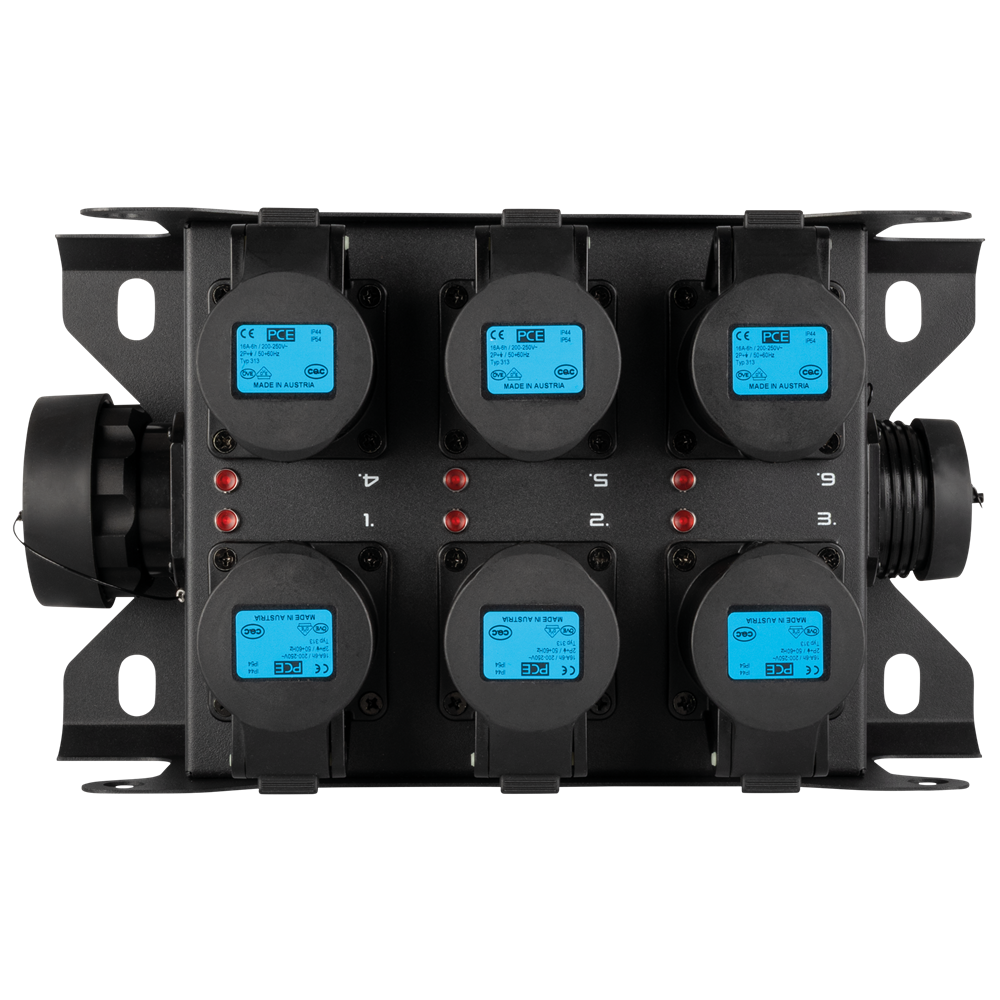

Voltage indication LED on each output
Compatible with Multipin S19 and Socapex 19-pin connectors
Quick-lock mounting option for easy installation

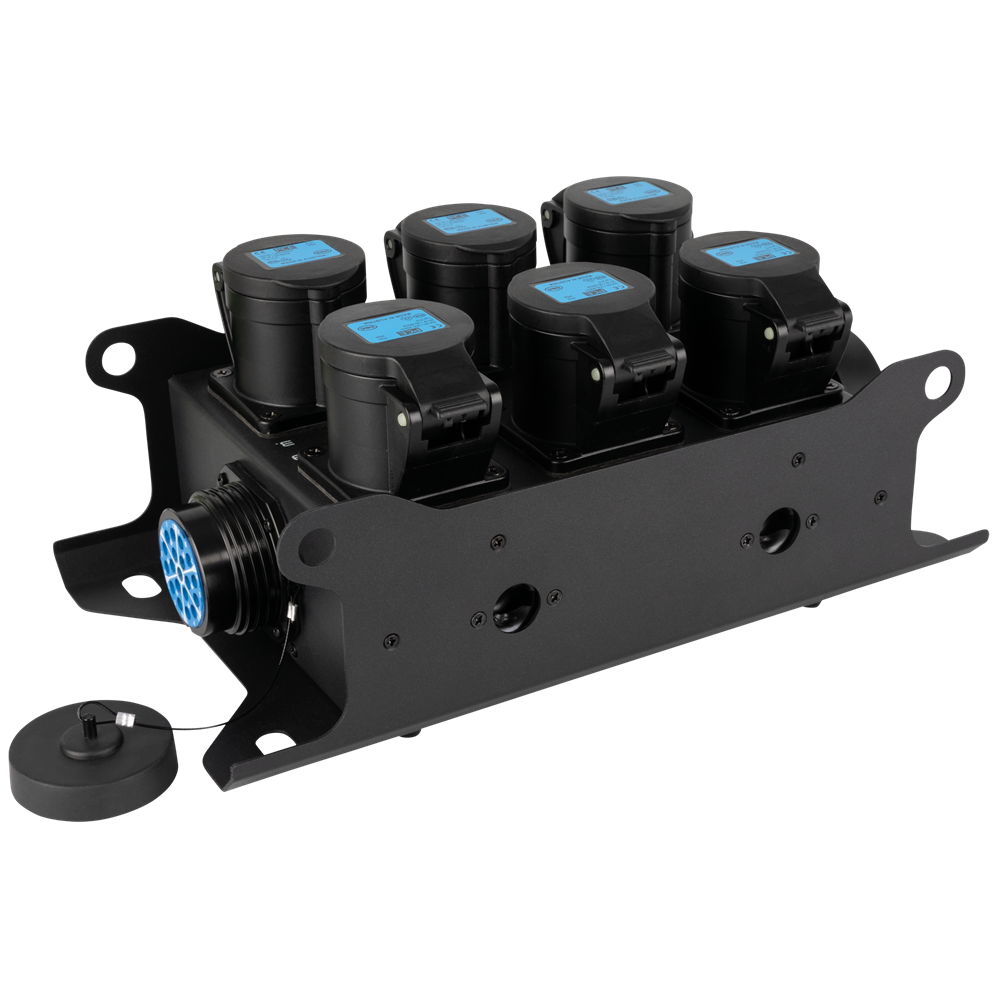

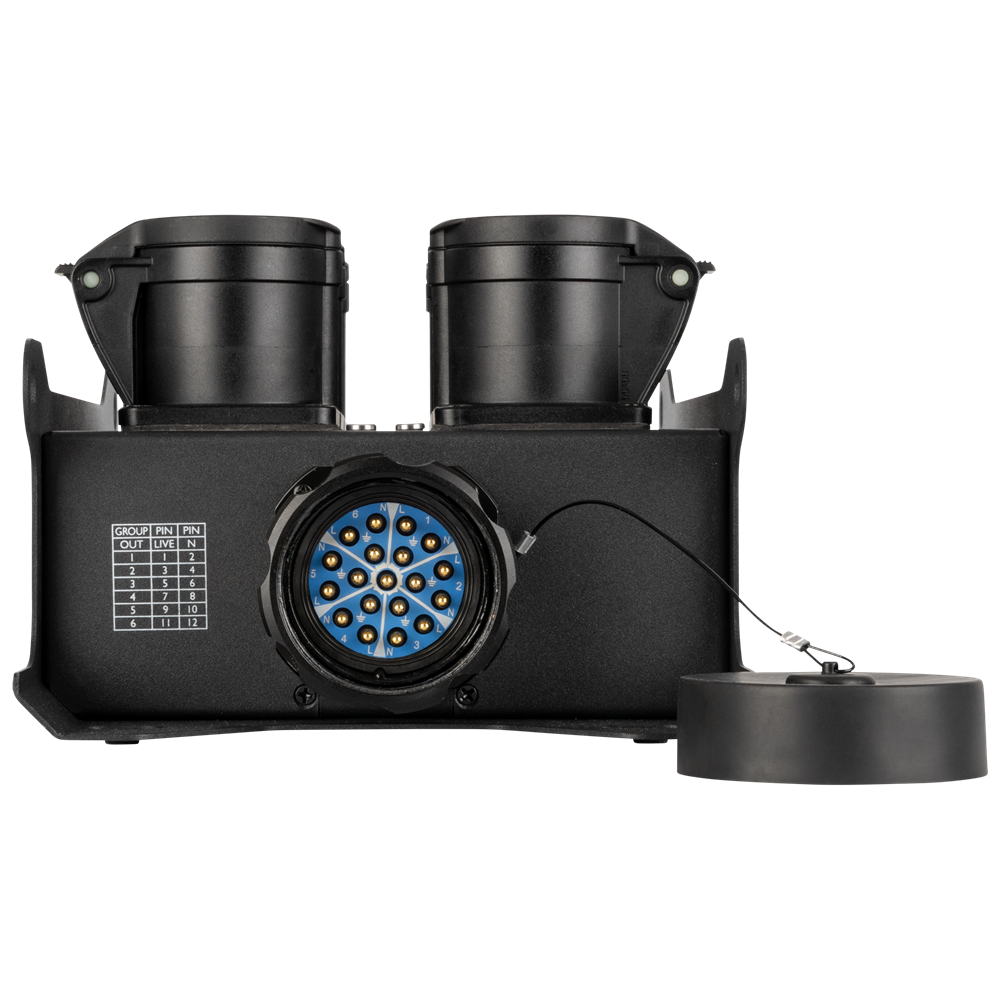

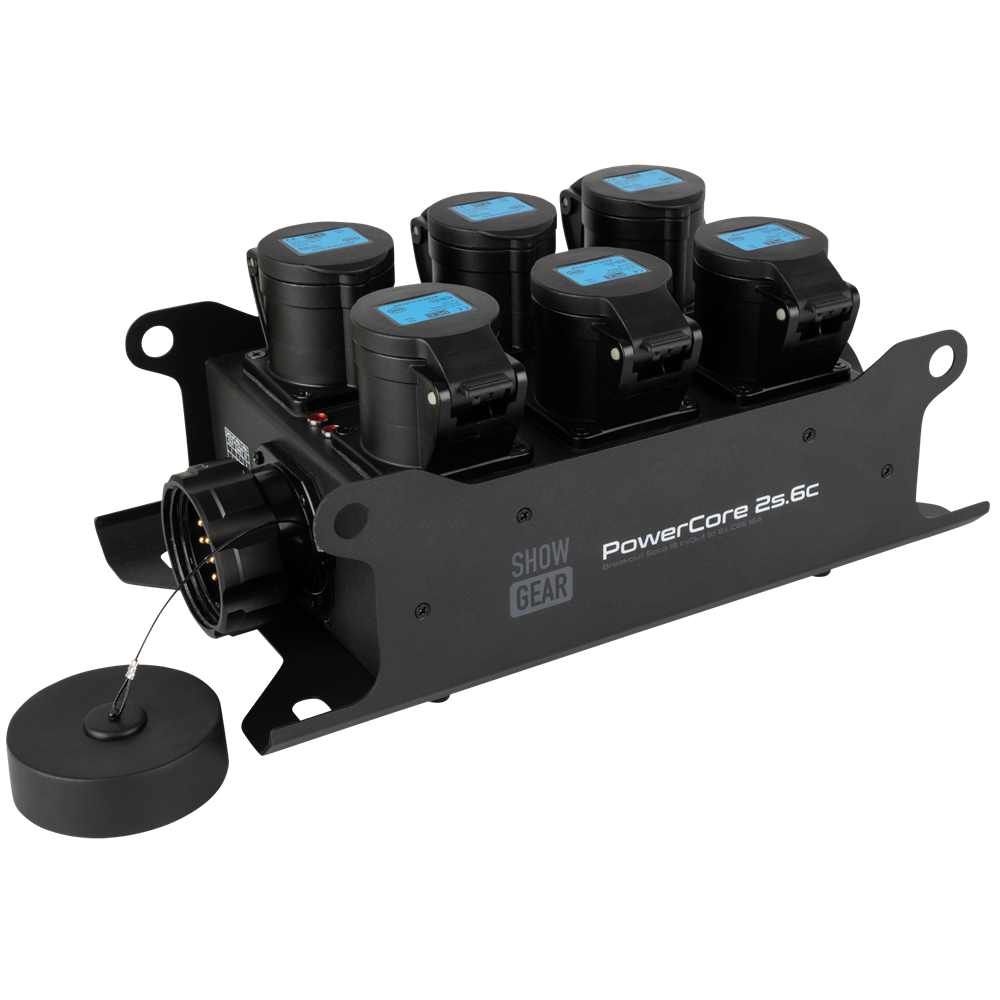

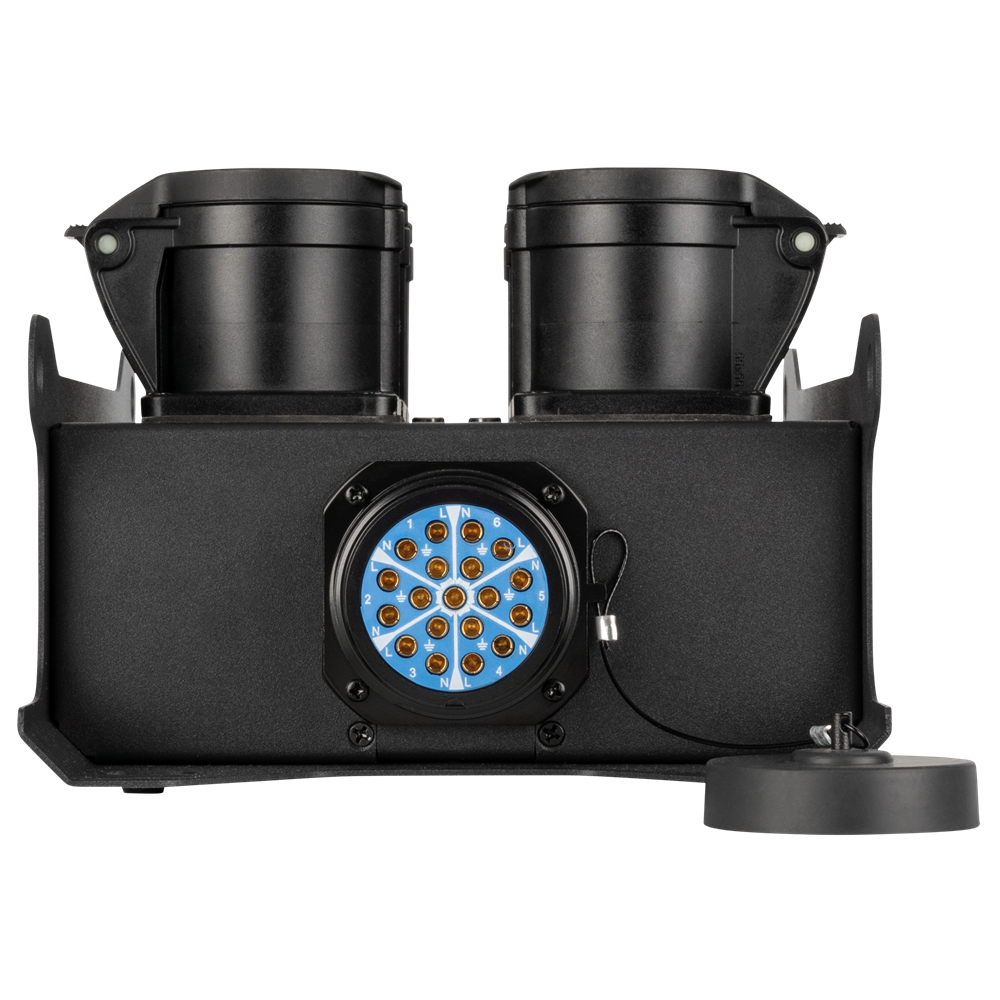

The Showgear PowerCore 2s.6c is a breakout power box with two Multipin S19 connectors (male/female) and 6 high-quality CEE 16A (1P+N+PE) outlets from PCE. Its loop-through design connects all 8 channels from input to output, while simultaneously powering the CEE sockets for efficient distribution. Each outlet includes a voltage indication LED for quick and convenient status checks. It is designed for seamless integration with the Showgear PowerCore series and is compatible with all PowerCore units equipped with a Multipin S19 output connector, as well as other power distributor brands with Socapex 19-pin connectors.
For flexible installation, the PowerCore 2s.6c offers multiple mounting holes for permanent setups and a quick-lock mounting point for fast, tool-free attachment using the optional PowerCore Quick Lock Bracket.
Power Supply: 230 V AC 50/60 Hz
Rated Current (A): 16 A
Power Connector In: Multipin S19
Power Connector Out: CEE3P 16 A / Multipin S19
Length (mm): 310 mm
Height (mm): 135 mm
Width (mm): 175 mm
Weight: 3 kg
IP Rating: IP20 (indoor use only)
Material: Metal
Colour: Black
LED Indicators: Power
Maximum Ambient Temperature: 40 °C
Minimum Ambient Temperature: -5 °C
Mounting Options: Quick-Lock / Wall
Fixed Mounting Option: 11 mm
Safety Attachment: Yes
