1 Multipin S19 input
6 Power Pro True outlets from Seetronic

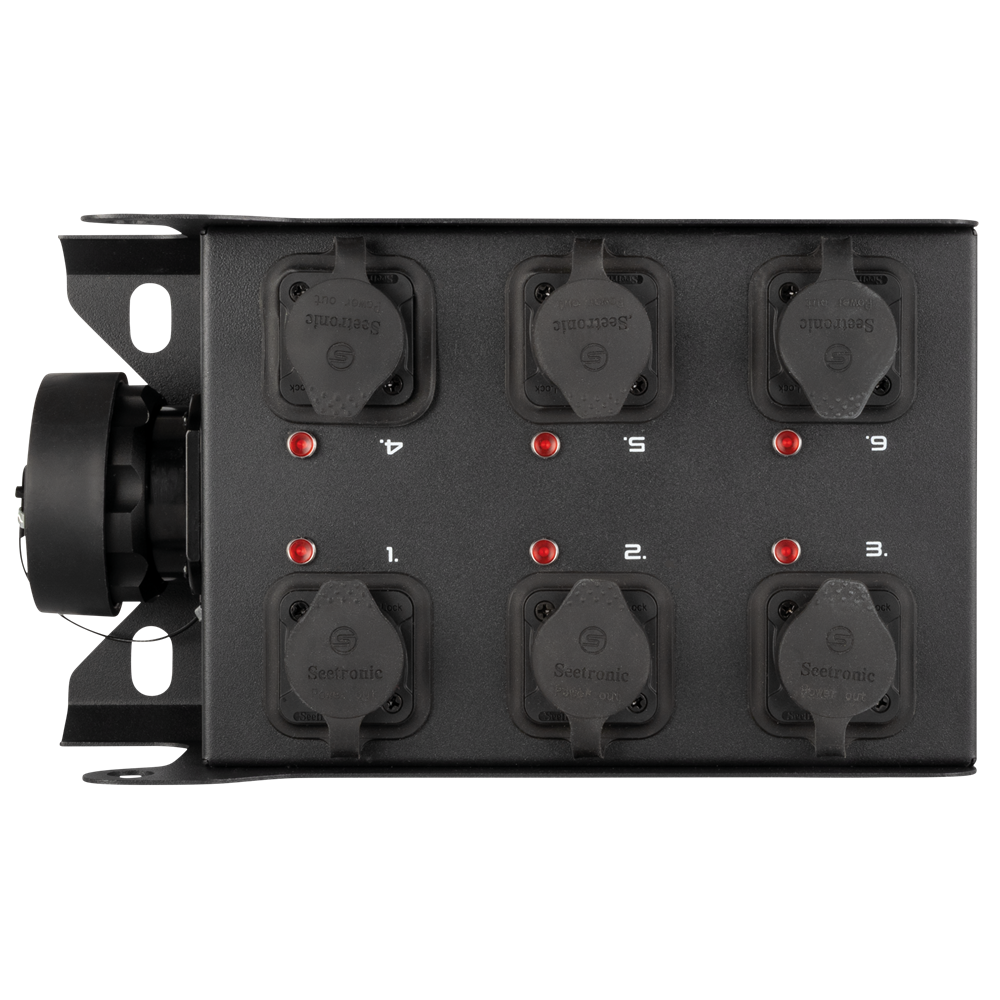

Voltage indication LED on each output
Compatible with Multipin S19 and Socapex 19-pin connectors
Quick-lock mounting option for easy installation

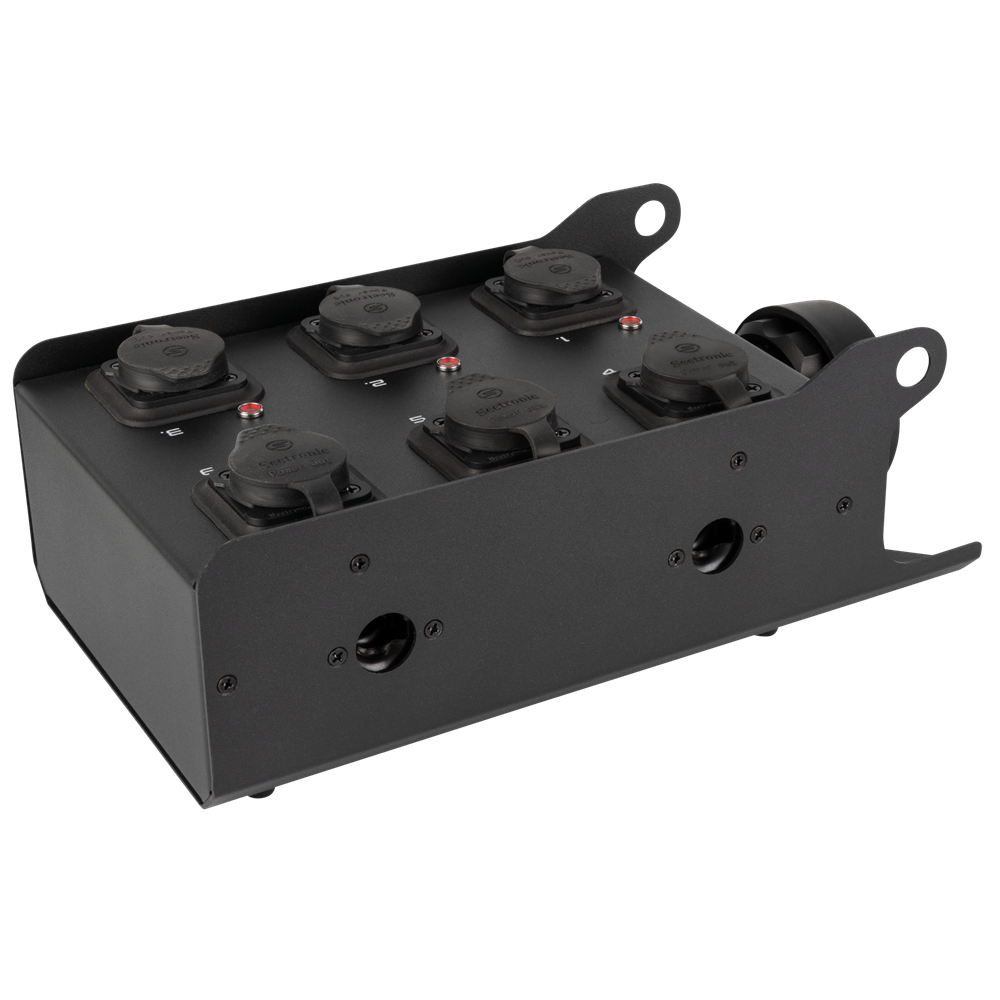

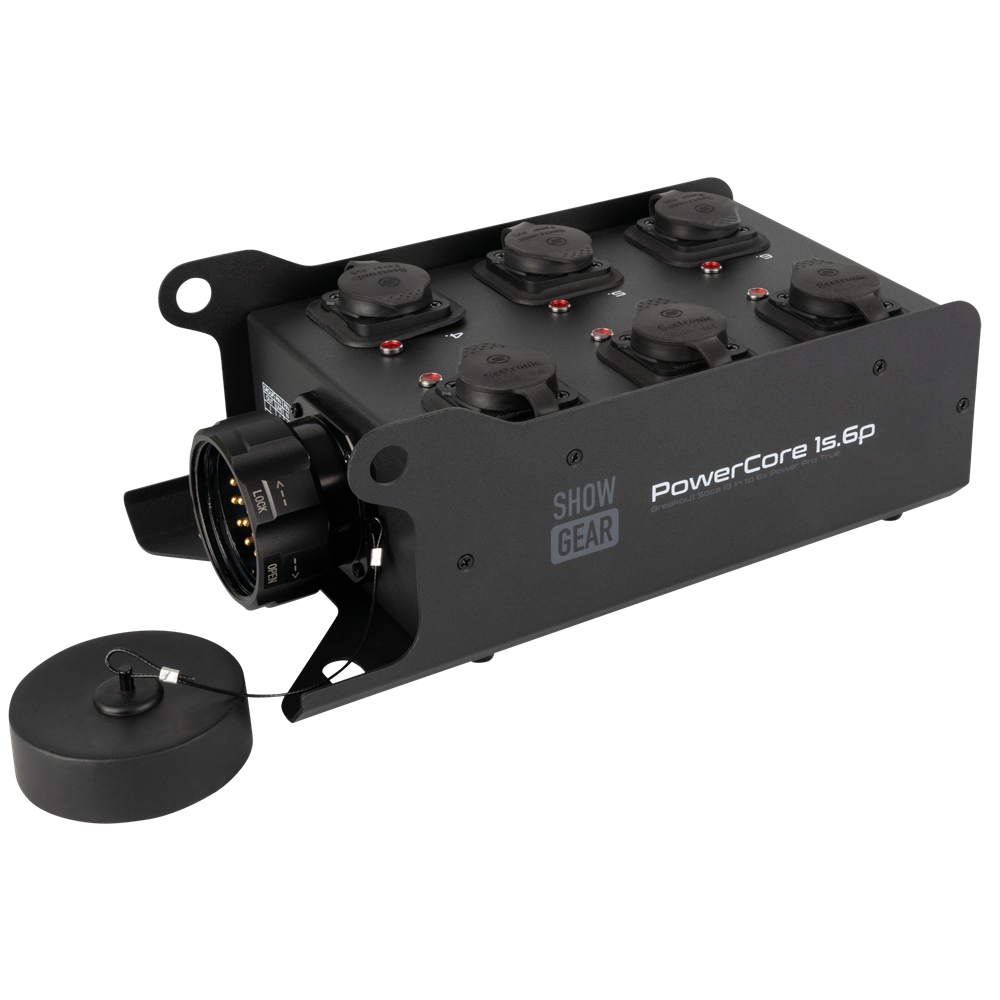

The Showgear PowerCore 1s.6p is a compact breakout power box with one Multipin S19 input and 6 high-quality Power Pro True outlets from Seetronic. Each outlet includes a voltage indication LED for quick and convenient status checks. It is designed for seamless integration with the Showgear PowerCore series and is compatible with all PowerCore units equipped with a Multipin S19 output connector, as well as other power distributor brands with Socapex 19-pin connectors.
For flexible installation, the PowerCore 1s.6p offers multiple mounting holes for permanent setups and a quick-lock mounting point for fast, tool-free attachment using the optional PowerCore Quick Lock Bracket.
Power Supply: 230 V AC 50/60 Hz
Rated Current (A): 16 A

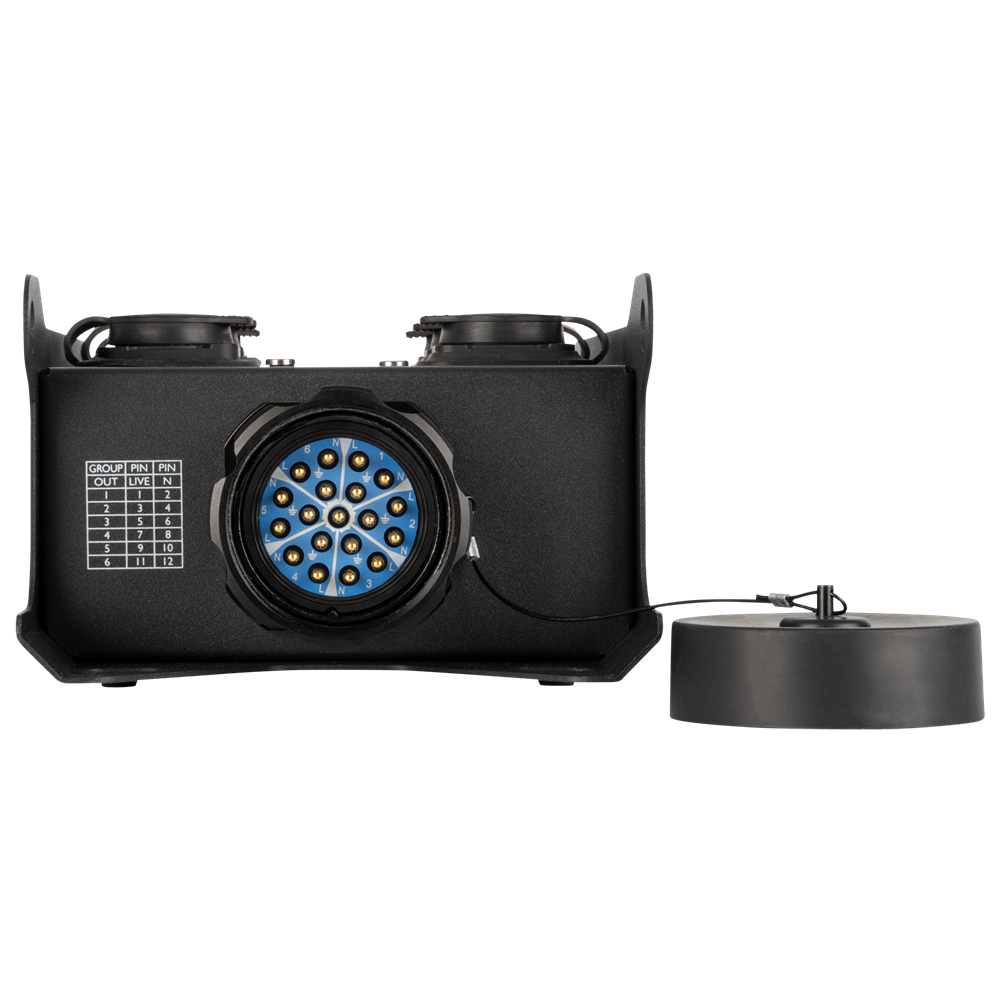

Power Connector In: Multipin S19
Power Connector Out: Power Pro True
Length (mm): 260 mm
Height (mm): 102 mm
Width (mm): 150 mm
Weight: 2.1 kg
IP Rating: IP20 (indoor use only)
Material: Metal
Colour: Black
LED Indicators: Power
Maximum Ambient Temperature: 40 °C
Minimum Ambient Temperature: -5 °C
Mounting Options: Quick-Lock / Wall
Fixed Mounting Option: 11 mm
Safety Attachment: Yes
