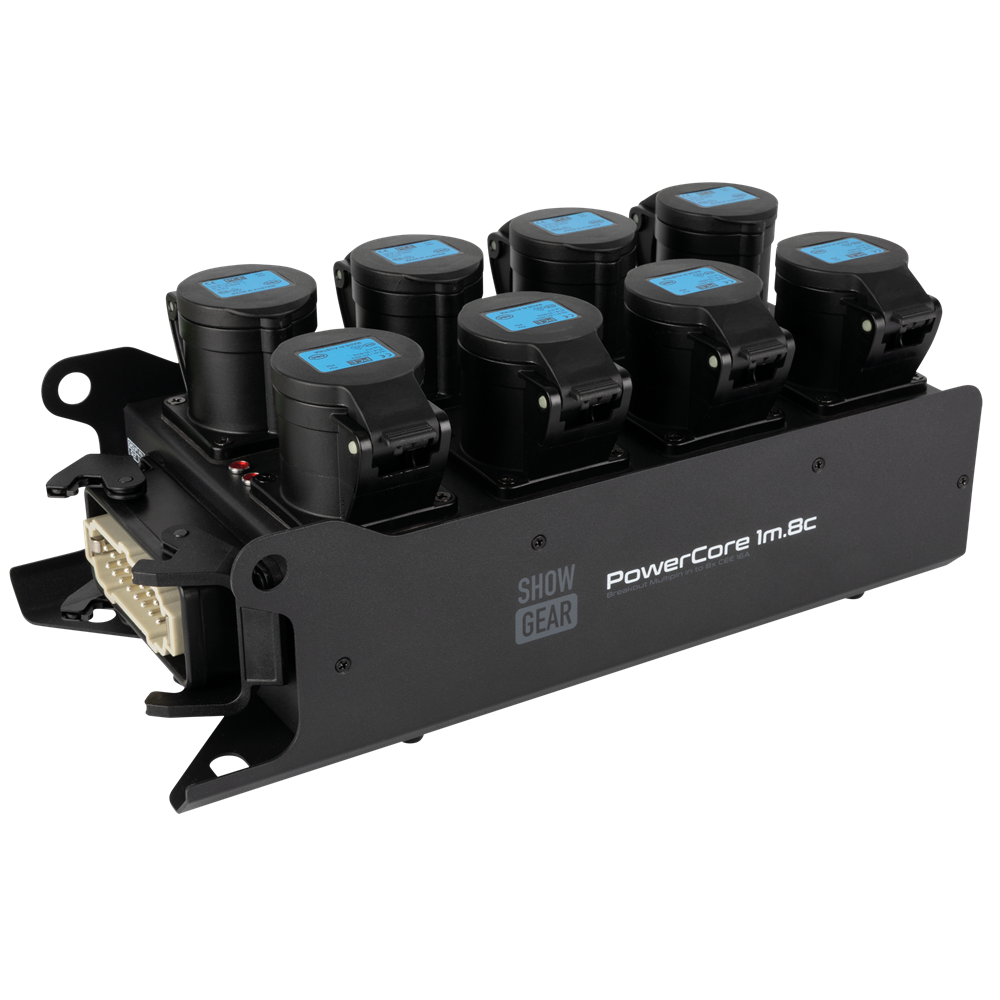

SHOWGEAR PowerCore 1m.8c Breakout Multipin H16 in to 8x CEE 16A (1P+N+PE)

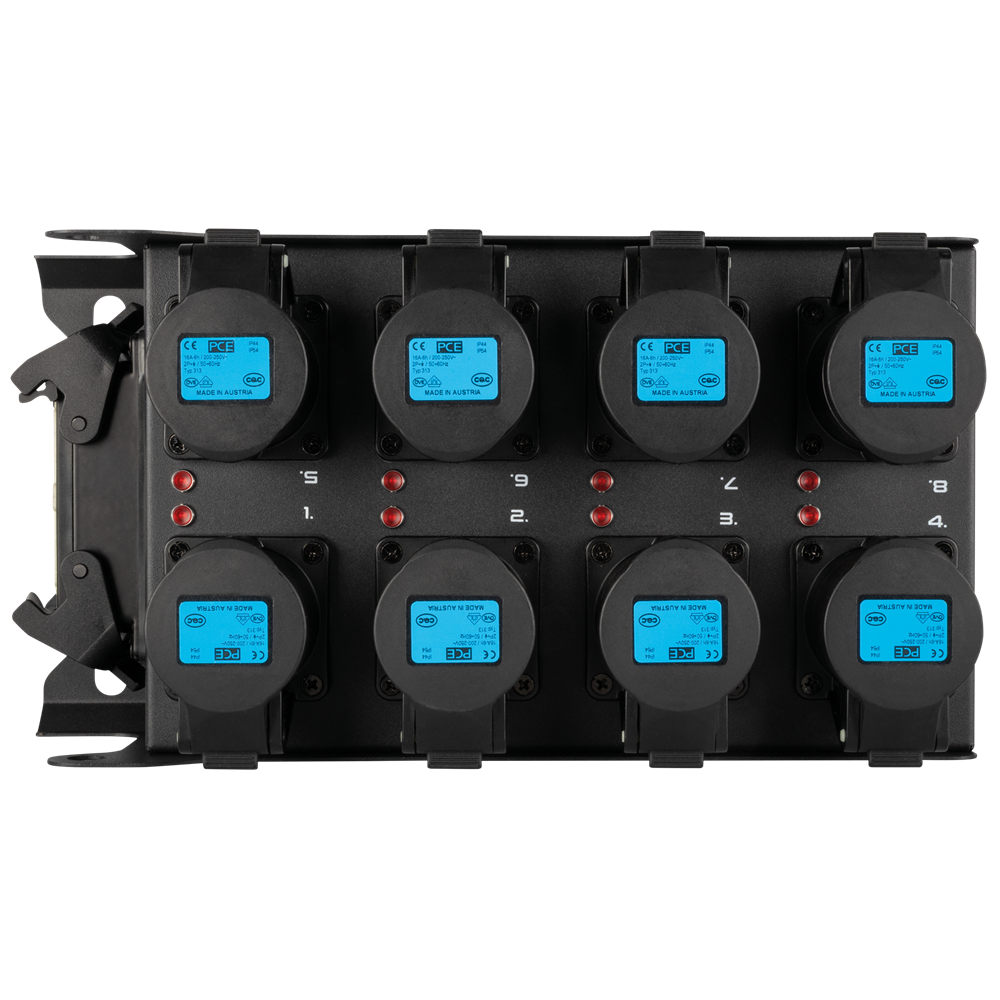

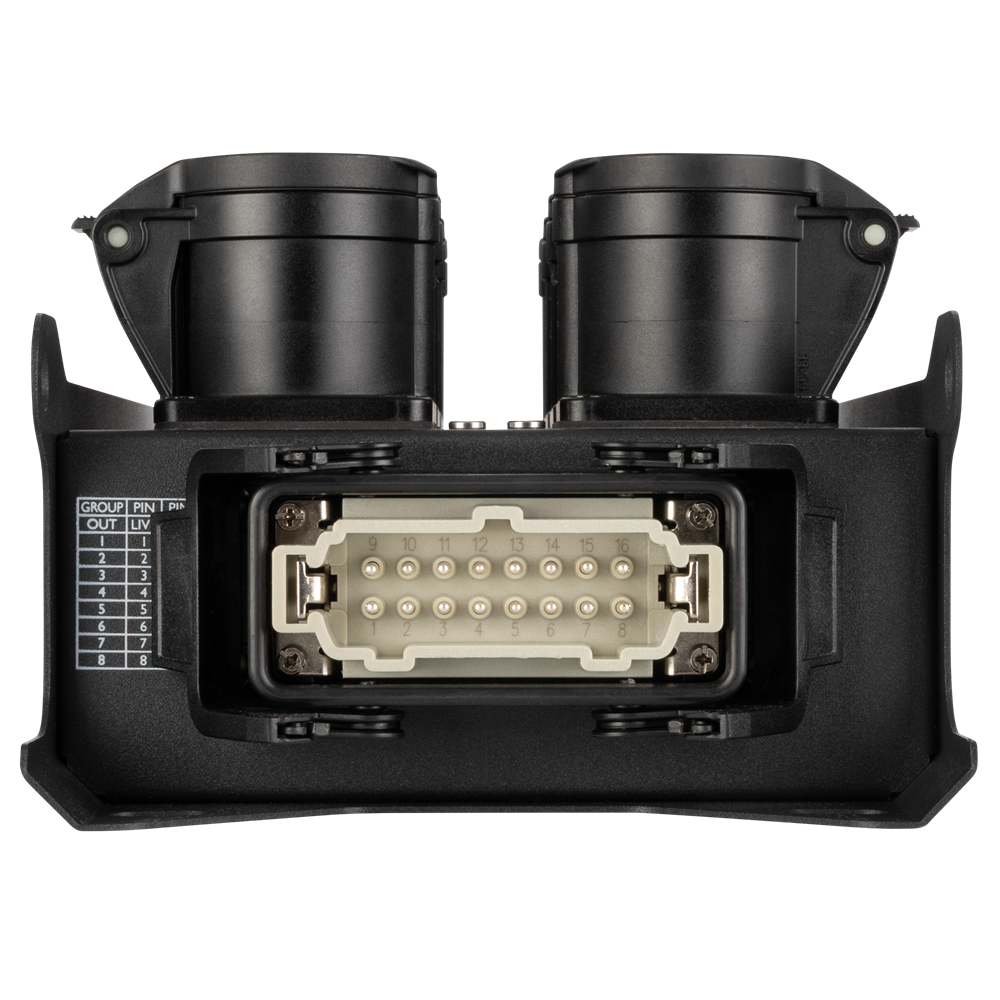

The Showgear PowerCore 1m.8c is a compact breakout power box with one Multipin H16 input and 8 high-quality CEE 16A (1P+N+PE) outlets from PCE. Each outlet includes a voltage indication LED for quick and convenient status checks. It is designed for seamless integration with the Showgear PowerCore series and is compatible with all PowerCore units equipped with a Multipin H16 output connector. It is also compatible with Harting HAN16 and other power distributor brands that use the 1-9 standard (pin 1+9 is channel 1, pin 2+10 is channel 2, etc.)

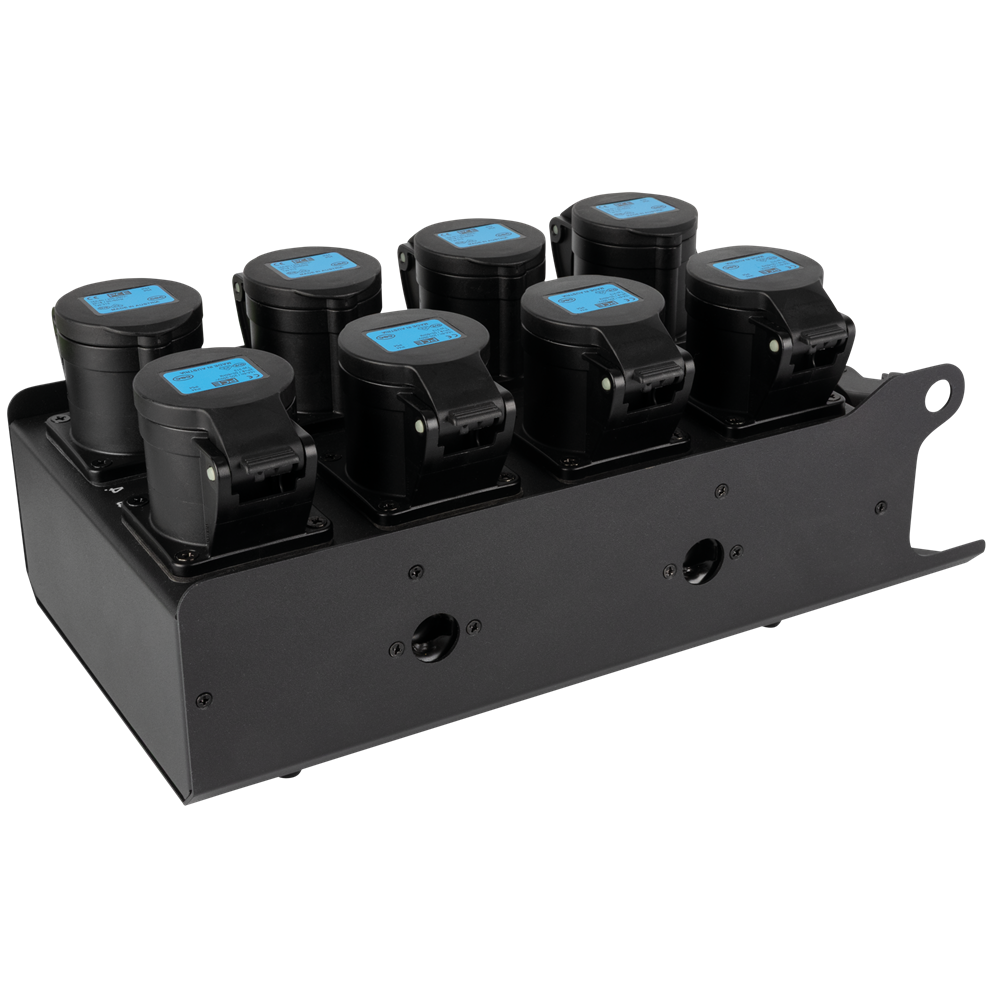

For flexible installation, the PowerCore 1m.8c offers multiple mounting holes for permanent setups and a quick-lock mounting point for fast, tool-free attachment using the optional PowerCore Quick Lock Bracket.

Power Supply: 230 V AC 50/60 Hz
Rated Current (A): 16 A
Power Connector In: Multipin H16
Power Connector Out: CEE3P 16 A
Length (mm): 330 mm
Height (mm): 135 mm
Width (mm): 175 mm
Weight: 3.2 kg
IP Rating: IP20 (indoor use only)
Material: Metal
Colour: Black
LED Indicators: Power
Maximum Ambient Temperature: 40 °C
Minimum Ambient Temperature: -5 °C
Mounting Options: Quick-Lock / Wall
Fixed Mounting Option: 11 mm
Safety Attachment: Yes
