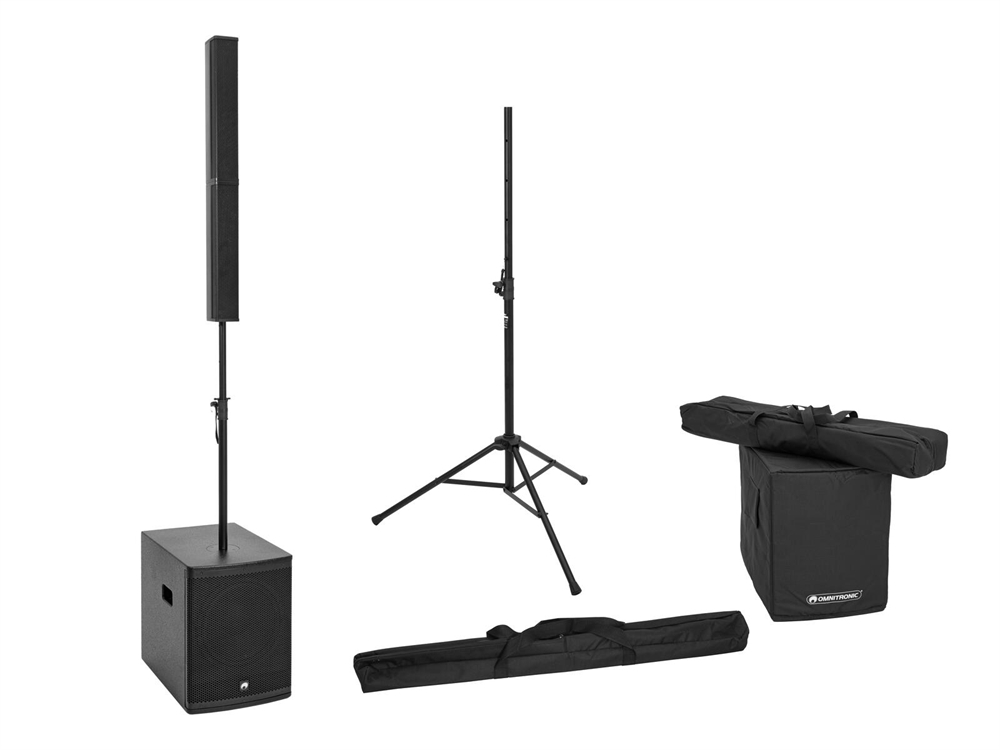

OMNITRONIC ROD-1283 Active Column Speaker System
Mobile column PA system with DSP, mixer, stereo Bluetooth link, 800 W RMS
- Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
- 4-channel mixer
- 2.1 stereo mode or 1.1 mono mode with stacked modules
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
bass
- Black metal grille with acoustic foam
- 2 recessed carrying handles
- 4 x plastic feet
integrated amplifier module
- Digital signal processor
- DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
- Multicolor LCD display
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
- The device is cooled by low-noise cooling fan
OMNITRONIC ROD-1283 Speaker Stand
Speaker system stands
- Adjustable height
OMNITRONIC ROD-1283 Cover set
Recommended accessory
OMNITRONIC BOB Transport Bag for Tripod/Distance Tube
Accessory for the BOB series
- Suitable for stands and distance tubes
- Made of easy-care artificial black textile
- High-quality workmanship with textile , black
Scope of delivery
1 x OMNITRONIC ROD-1283 Active Column Speaker System
- 1 x bass
- 2 x top
- 1 x distance tube
- 1 x power cord
- 2 x speaker cable
- 2 x tie strap
- 1 x user manual
- 1 x declaration of conformity
1 x OMNITRONIC ROD-1283 Speaker Stand
- 1 x stand
- 1 x user manual
1 x OMNITRONIC ROD-1283 Cover set
- 2 x bag
1 x OMNITRONIC BOB Transport Bag for Tripod/Distance Tube
- 1 x bag
| Weight: | 33.26 kg |
| OMNITRONIC ROD-1283 Active Column Speaker System | |
| Output power: | 800 W RMS system |
| Frequency range: | 40 - 20000 Hz system |
| Max. SPL: | 128 dB system |
| DSP: | Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ |
| Weight: | 25.90 kg |
| Bass | |
| Frequency range: | 40 - 150 Hz |
| Attachment system: | M20 thread |
| Speaker: | 1 x woofer 12" with ferrit magnet Basket material: steel Voice coil lows 2.5" Conematerial: cardboard/paper |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Recessed carrying handle: | 2 pc/pcs |
| Transport aid: | 4 x plastic feet |
| Material: | MDF (medium density fiberboard), painted |
| Color: | Black, textured coating |
| Material thickness: | 16 mm |
| Dimensions: | Width: 37 cm Depth: 52 cm Height: 48 cm |
| Weight: | 22.5 kg |
| Integrated amplifier module | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 400 W |
| Output power: | 1 x 500 W RMS LF 2 x 150 W RMS (8 ohms) HF 1 x 300 W RMS (4 ohms) HF |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse: | 5 x 20 mm, T 3.15 A fuse replaceable |
| DSP: | Digital signal processor |
| DSP presets: | MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT |
| Cooling: | 1 x low-noise cooling fan |
| Filter: | Low cut: 80 Hz |
| Control: | Bluetooth |
| Bluetooth: | Version: 5.3 with stereo link (TWS) |
| Bluetooth device name: | ROD-1283 |
| Range: | Bluetooth: range up to 10m in buildings |
| Carrier frequency: | 2.4 GHz |
| Circuitry: | Class D |
| Display type: | Multicolor LCD display |
| Control elements: | Power switch, encoder, menu, BACK button |
| Controls: | Overheat; short-circuit; DC voltage; limiter |
| Status LED: | Limit |
| Connections: | Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x stereo RCA Output: line via 1 x 3-pin XLR (M) mounting version Output: top via 2 x speaker built-in socket (F) |
| Crossover frequency: | 150 Hz |
| Top | |
| Power: | Program: 160W Rated: 80W AES |
| Frequency range: | 150 - 20000 Hz |
| Sensitivity: | 90 dB (1W/1m) |
| Dispersion angle: | 100° x 20° |
| Impedance: | 8 ohms top |
| Attachment system: | Flange: Ø 25mm |
| Connections: | Input: top via 1 x speaker built-in socket (F) Link: special connector |
| Speaker: | 4 x full range loudspeaker 3" with neodymium magnet Basket material: steel Voice coil full range loudspeaker 0.75" Conematerial: cardboard/paper |
| Type of speaker: | Column speaker |
| Type of construction: | Closed Box |
| Material: | Plastic hard |
| Color: | Black |
| Dimensions: | Width: 8.5 cm Depth: 10.5 cm Height: 45 cm |
| Weight: | 1.50 kg |
| Distance tube | |
| Height: | Maximum: 95 cm Minimum: 59 cm Adjustable in 4 steps with locking pin |
| Type (general stands): | Speaker stand/manual |
| Material: | Steel, painted |
| Power cord | |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | 1.8 m |
| Speaker cable | |
| Cable construction: | 2 x 0.75 mm² speaker cable |
| Cable length: | 2 m 5 m |
| OMNITRONIC ROD-1283 Speaker Stand | |
| Maximum carrying capacity: | 14 kg |
| Height: | Maximum: 150 cm Minimum: 90 cm with locking pin |
| Attachment system: | Ø 25mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Steel |
| Color: | Black |
| Transport dimensions: | 82 cm x 12 cm x 9 cm |
| Weight: | 1.95 kg |
| OMNITRONIC ROD-1283 Cover set | |
| Material: | Nylon |
| Color: | Black |
| Weight: | 1.00 kg |
| OMNITRONIC BOB Transport Bag for Tripod/Distance Tube | |
| Material: | Textile |
| Color: | Black |
| Dimensions: | Length: 106 cm Width: 9 cm Depth: 7 cm |
| Weight: | 0.19 kg |
