| Frequency range: | 40 - 150 Hz bass |
| Max. SPL: | 129 dB |
| DSP: | Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ |
| Attachment system: | M20 thread |
| Speaker: | 1 x woofer 15" with ferrit magnet
Basket material: steel
Voice coil lows 3"
Conematerial: cardboard/paper |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Carrying handle: | 2 pc/pcs |
| Transport aid: | Wheels optional
4 x rubber feet |
| Material: | MDF (medium density fiberboard), 15 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 43.5 cm
Depth: 52 cm
Height: 51 cm |
| Integrated amplifier module |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 400 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Output power: | 1 x 500 W RMS LF
2 x 150 W RMS (8 ohms) HF
1 x 300 W RMS (4 ohms) HF |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse: | 5 x 20 mm, T 3.15 A fuse replaceable |
| DSP: | Digital signal processor |
| DSP presets: | MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT |
| Cooling: | 1 x low-noise cooling fan |
| Filter: | Low cut: 80 Hz |
| Control: | Bluetooth |
| Bluetooth device name: | MAXX-1508NG |
| Range: | Bluetooth: range up to 10m in buildings |
| Carrier frequency: | 2.4 GHz |
| Circuitry: | Class D |
| Display type: | Multicolor LCD display |
| Control elements: | Power switch, encoder, menu, BACK button |
| Controls: | Overheat; short-circuit; DC voltage; limiter |
| Status LED: | Limit |

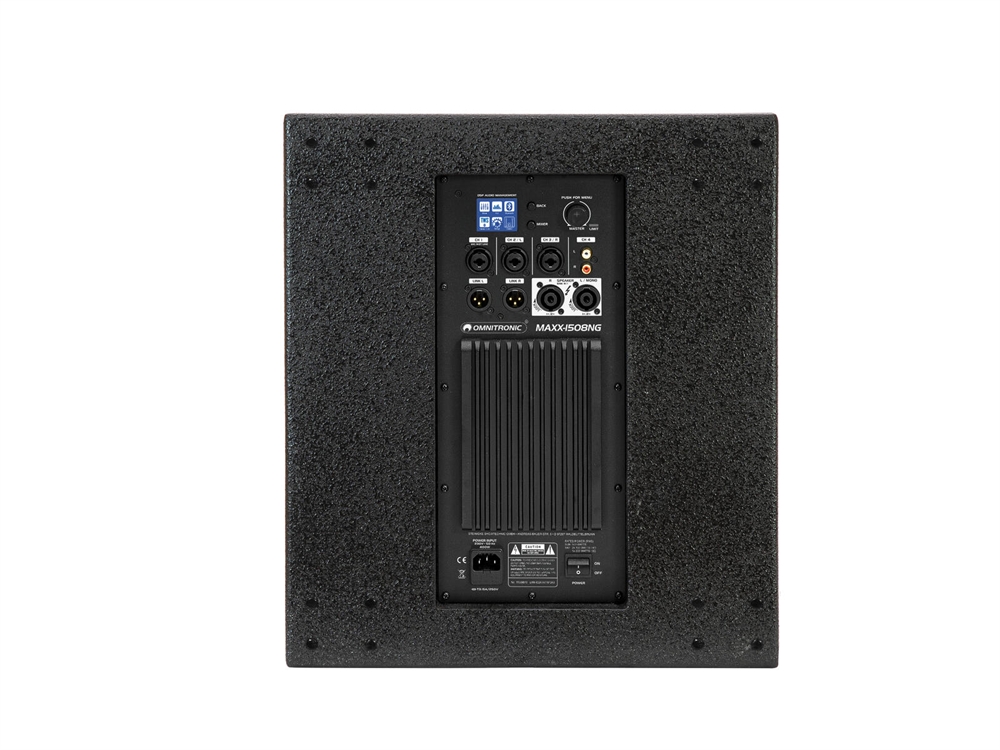

| Connections: | Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x RCA (F) mounting version
Output: line via 2 x 3-pin XLR (M) mounting version
Output: speaker via 2 x speaker built-in socket (F) |
| Input channels: | 1 x stereo via RCA, channel control via rotary dial
3 x mono via XLR or jack, channel control via rotary dial |
| Crossover frequency: | 100 Hz |
| Power cord |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | 1.8 m |
| Weight: | 0.13 kg |
