| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 500 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Device fuse: | 5 x 20 mm, T 4 A fuse replaceable |
| Power: | Rated: 250W RMS LF
Rated: 2x 100W RMS HF |
| Frequency range: | 100 - 17000 Hz top |
| Sensitivity: | 97 dB |
| Max. SPL: | 119 dB |
| DSP: | Digital signal processor |
| DSP presets: | FLAT; DJ; LIVE |
| Control: | Bluetooth |
| Bluetooth device name: | OMNITRONIC MAXX1206 |
| Attachment system: | Flange: M20 thread |
| Circuitry: | Class D |
| Control elements: | Power switch, level control, Input sensitivity switch, connect, tone control |
| Controls: | Limiter |
| Status LED: | Power, signal, limit, pairing, DSP presets |

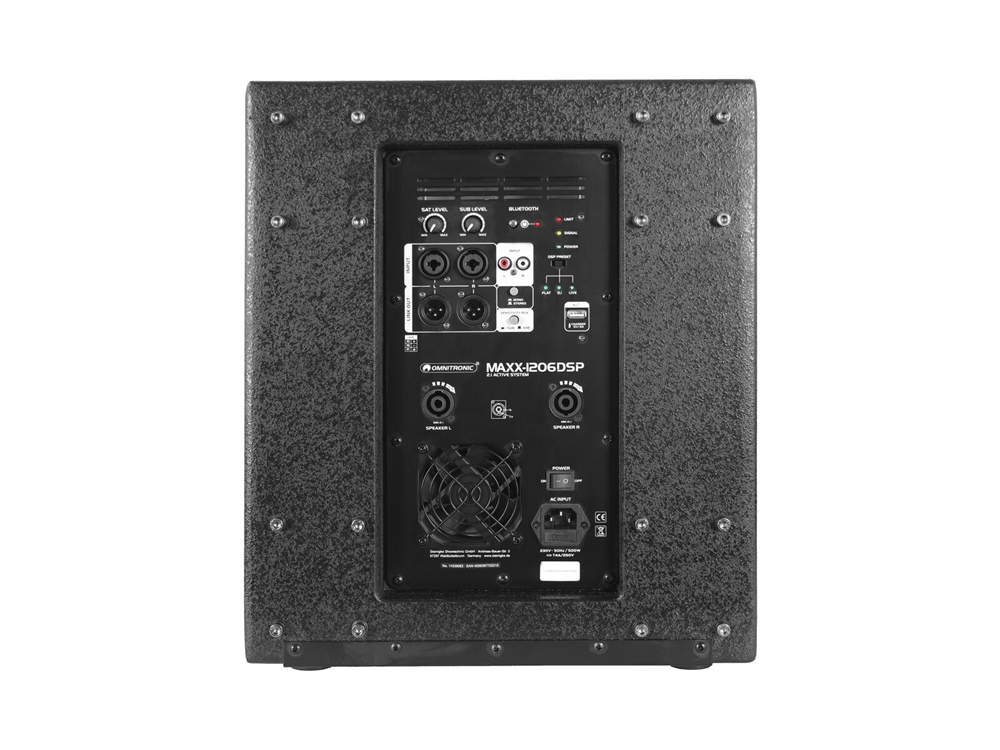

| Connections: | Input: line via 1 x stereo RCA
Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 2 x 3-pin XLR
Output: speaker via 2 x speaker built-in socket (F) |
| Input channels: | 1 x stereo via XLR or RCA or bluetooth, channel control via rotary dial |
| Speaker: | 1 x woofer 12" with ferrit magnet
Basket material: steel
Conematerial: cardboard/paper |
| USB port: | 1 x type C, 2 A |
| Type of speaker: | Subwoofer |
| Type of construction: | Vented |
| Transport aid: | Rubber feet
Wheels optional |
| Material: | MDF (medium density fiberboard), 16 mm |
| Color: | Black, textured coating, painted |
| Dimensions: | Width: 38.4 cm
Depth: 47.4 cm
Height: 45.8 cm |
| Weight: | 19.10 kg |
| Bass |
| Frequency range: | 38 - 250 Hz bass |
