Neutrik NNBLC75BVZ17

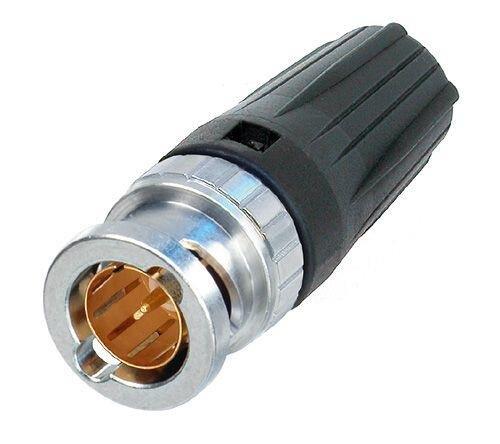

RearTWIST HD Large BNC-kabelstikket er designet til store kabeldiametre, som bruges på lange løb og høje datahastigheder (HD).
Som alle Neutrik BNC'er tilbyder den et ægte 75 design og er perfekt egnet til HD-applikationer. Den patenterede bageste TWIST-støvle garanterer nem adgang selv i applikationer med høj tæthed.
Egnede kabler:
Belden 7731A (ANH), CAE HD16720LSZH, Draka 1.6/7.3AF, RG 11, Klotz V16/72, Canford SDV-HD, Nexans HF 75 1,6/7,2 02Y(ST)C(ST)H, Percon VK9 , Tesca Sphere
Crimp størrelse:
Pind: 1,8 mm
Skjold: 10,0 mm (hex)
Technical Information
Product
Title NBLC75BVZ17
Connection Type BNC 75 Ohm
Gender male
Electrical
Contact resistance <= 3 mOhm (inner)
Contact resistance <= 2 mOhm (outer)
Dielectric strength 1,5 kVdc
Impedance 75 Ohm
Insulation resistance > 5 GOhm
Rated voltage <50 V
VSWR <=1.050/>32 dB up to 1 GHz
<=1.065/>30 dB up to 2 GHz
<=1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D. 10.4 mm
Cable retention > 30 N (Center)
Crimp size 10.0 mm (HEX)
Crimp size (pin) 1.8 mm
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Environmental
Temperature range -30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
