DIN rail mountable
Digital display and control buttons
8-bit/16-bit
Standard or smooth dimming
Built-in circuit protection

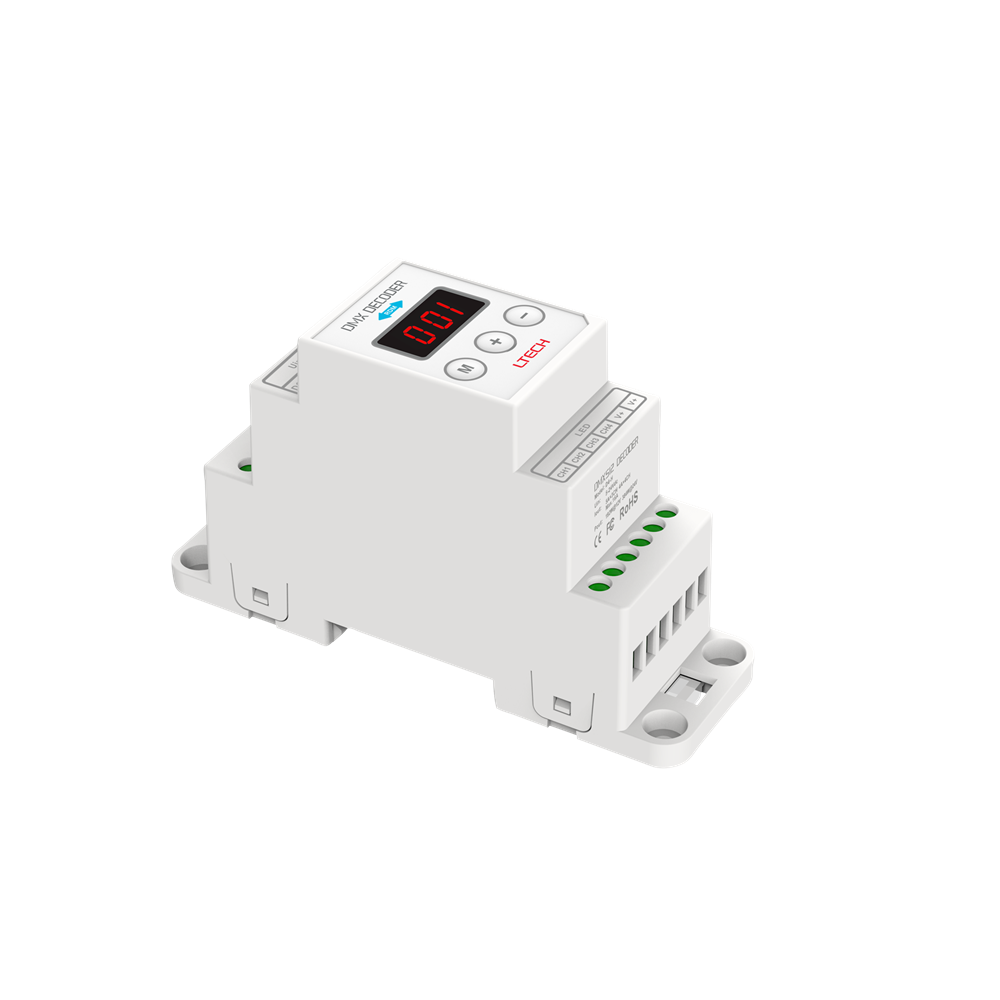

This 3x 5A / 4x 4A DMX LED Driver is designed for mounting on a DIN rail. It’s equipped with DMX/RDM signal terminals. In DMX mode, its digital display shows information about the DMX address, the Bit depth, the PWM frequency, the dimming time and mode (standard and smooth) and the screen timeout. In custom mode, the display shows information about the lighting effects, the speed of colour changes, the brightness and more. The built-in control buttons can be used to easily adjust parameters. With the RDM protocol on board too, operations can also be completed via the RDM master console.
Control Mode: DMX / RDM
DMX Channels: 512
Power Supply: 5-24 V DC
Maximum Output Current (A): 16 A
Length (mm): 112 mm
Height (mm): 67 mm
Width (mm): 35 mm
IP Rating: IP20 (indoor use only)
