EUROLITE Set Pixel Ball 360° incl. Madrix Start

EUROLITE Set Pixel Ball 360° incl. Madrix Start
  • Ikke på lager
  • Bedømmelse for EUROLITE Set Pixel Ball 360° incl. Madrix Start
    Produktet er endnu ikke bedømt
  •
    10.059,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

Trustpilot
Flexible LED pixel string

  • 6 LEDs SMD 3535 3in1 TCL RGB (homogenous color mix)
    5 segments controlled separately
  • With a beam angle of 360°
  • Matrix effect
  • Flicker-free
  • The device is cooled by passive convection cooling
  • For application areas such as: Clubs/dancing school; installation; stage; restaurants, bars and hotels
  • Silent operation
  • Application possibility: Suspended


EUROLITE LED Pixel Ball 360° 1m MK2

Flexible LED pixel string

  • 6 LEDs SMD 3535 3in1 TCL RGB (homogenous color mix)
    5 segments controlled separately
  • With a beam angle of 360°
  • Matrix effect
  • Flicker-free
  • The device is cooled by passive convection cooling
  • For application areas such as: Clubs/dancing school; installation; stage; restaurants, bars and hotels
  • Silent operation
  • Application possibility: Suspended

EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2

Control unit for EUROLITE LED Pixel Ball 360° 1m MK2

  • Series connection of 6 strings per output possible
  • Up to 150 pixel balls per bar can be controlled
  • 30 integrated show programs
  • Control via stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
  • DMX fail mode (hold; blackout)
  • Monochrome OLED display
  • Mains input and output for power linking up to 8 units
  • Built with SEETRONIC connector
  • Interface
  • The device is cooled by passive convection cooling
  • For application areas such as: Clubs/dancing school; wedding/gala/events; installation; restaurants, bars and hotels
  • Silent operation
  • Application possibility: Suspended; wall mounting

MADRIX Software 5 License start

MADRIX 5 licence "start"

  • Includes 1x MADRIX 5 License "start"
  • Requires a valid, empty, and metallic MADRIX KEY
  • Can transmit up to 1024 DMX channels
  • Compatible with Win 7, Win 8, Win 10,
  • Made in Germany
  • Engineered in Germany
  • For further information about this product, please refer to the Data Sheet under "Downloads"

MADRIX KEY

MADRIX 5 KEY - without license

  • Includes an empty MADRIX KEY
  • Requires a proper MADRIX 5 License to activate the features or output for the MADRIX 5 Software
  • The device can be connected via USB to the PC
  • Made in Germany

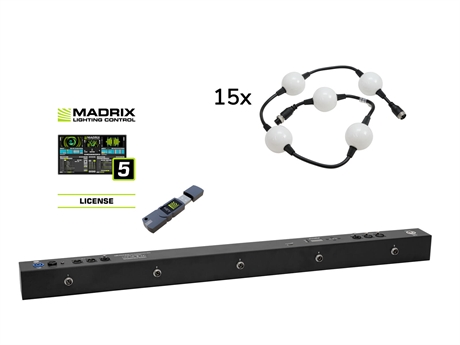

Scope of delivery

15 x EUROLITE LED Pixel Ball 360° 1m MK2

  • 1 x light effect

1 x EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2

  • 1 x device
  • 1 x user manual
  • 1 x power cord


Weight:8.28 kg
EUROLITE LED Pixel Ball 360° 1m MK2
Power supply:24V DC
Power consumption:4 W
IP classification:IP4X
Protection class:Protection class III
Power connection:Fixed power supply cord with special plug
Cable length:0.95 m
Lamp type:LED lamp
Number of lamps:5 pieces
20 cm Distance between the lamps
LED type:Each 6 x SMD 3535 3in1 TCL RGB (homogenous color mix)
Flash rate:2 - 20 Hz
Cooling:Passive convection cooling
Projection:Flicker-free
PWM frequency:3500 Hz
Beam angle:360°
Beam angle (1/2 peak):360°
Material:Plastic
Dimensions:Length: 95 cm
Diameter: Ø 5.0 cm
Weight:0.17 kg
Noise classification:Class 0 (no noise at all)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2
Power supply:100-240 V AC, 50/60 Hz
Power consumption:130 W
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:3 x 1.0 mm² H05VV-F
Power output:P-Con (gray), mounting version
Fuse:5 x 20 mm, T 1 A fuse replaceable
DMX channels:3; 5; 7; 10; 15; 19
DMX input:3-pin XLR (M) mounting version
5-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
5-pin XLR (F) mounting version
Network connection:Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
Cooling:Passive convection cooling
Control:Stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
DMX fail mode:Hold; blackout
Housing color:Black
Display type:Monochrome OLED display
USB port:Type A
Use of brands:Built with SEETRONIC connector
Material:Metal
Housing design:Interface
Dimensions:Length: 100 cm
Depth: 7.7 cm
Height: 10.7 cm
Weight:3.65 kg
Noise classification:Class 0 (no noise at all)
MADRIX Software 5 License start
DMX channels:Output 1024
Weight:0.00 kg
Operating system:Win 7, Win 8, Win 10,
MADRIX KEY
Power connection:Mains input via USB A (M) connectable version
USB port:Type A
PC connect:Via USB
Weight:0.07 kg
Varenr.: E-20001058
