EUROLITE LED KLS-402 Compact Light Set AIR

Ikke på lager
Bedømmelse for EUROLITE LED KLS-402 Compact Light Set AIR
Produktet er endnu ikke bedømt

3.679,00DKK ved 1 stk.

Vis uden moms

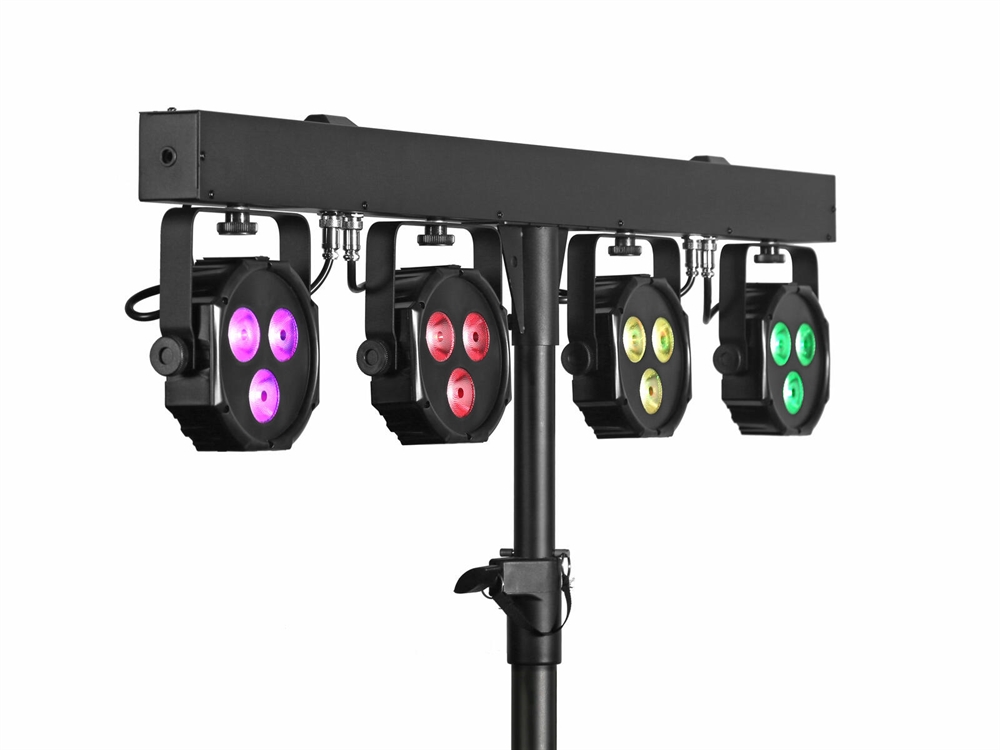

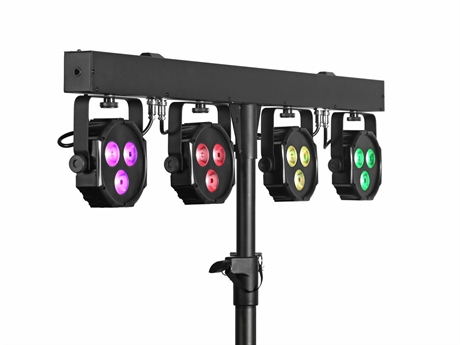

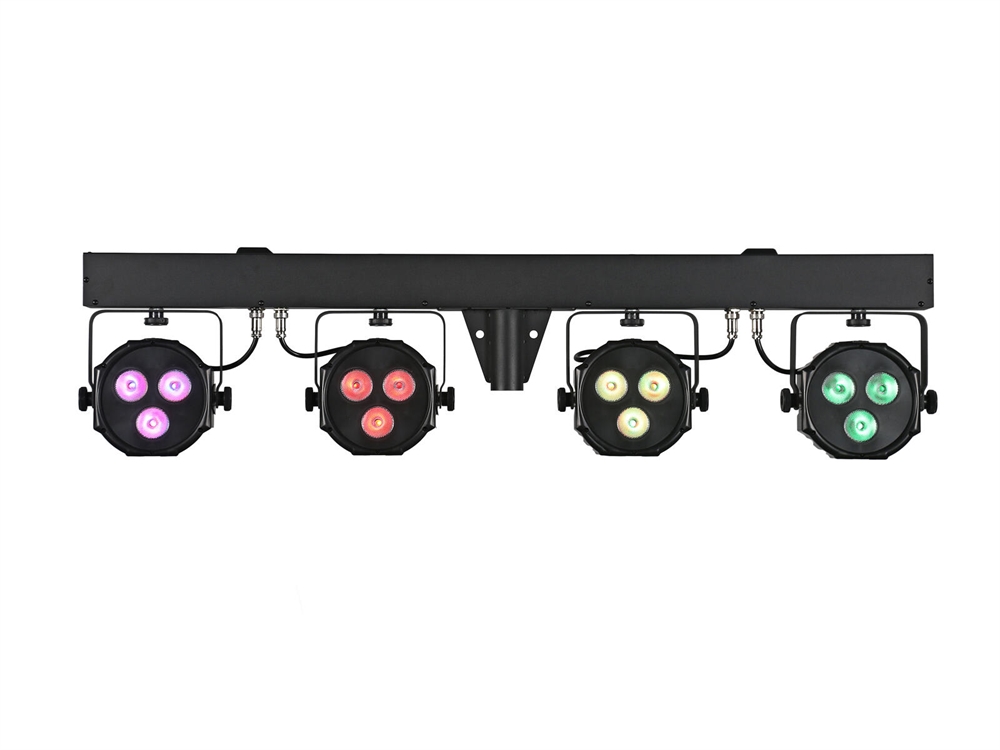

Bar with 4 powerful 4in1 QCL RGB/WW spots, AirW wireless system (2.4 GHz), wireless remote control and transport bag

Crossbar with integrated DMX control unit and stand sleeve
Integrated AirW radio transceiver for wireless master/slave operation
AirW: operating range up to 70m with line-of-sight
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
12 LEDs 10 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
4 spots controlled separately
With a beam angle of 12°
Spot effect; strobe effect
Dimmer electronic; color fade adjustable; color change adjustable; color blend stepless; color selection; program selection; program speed adjustable; color macros
Direct color selection for 20 preset colors
20 integrated show programs
Control via stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
3 buttons on the remote control for saving your own settings
DMX fail mode (blackout; hold; full on; auto)
Good color rendering index (CRI)
Flicker-free
Monochrome 4 digit 7-segment LED display
With mounting bracket
Silent operation
The device is cooled by passive convection cooling
For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels
Application possibility: Suspended; on stand
Mains input and output for power linking up to 8 units

Bar with 4 powerful 4in1 QCL RGB/WW spots, AirW wireless system (2.4 GHz), wireless remote control and transport bag

Crossbar with integrated DMX control unit and stand sleeve
Integrated AirW radio transceiver for wireless master/slave operation
AirW: operating range up to 70m with line-of-sight
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
12 LEDs 10 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
4 spots controlled separately
With a beam angle of 12°
Spot effect; strobe effect
Dimmer electronic; color fade adjustable; color change adjustable; color blend stepless; color selection; program selection; program speed adjustable; color macros
Direct color selection for 20 preset colors
20 integrated show programs
Control via stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
3 buttons on the remote control for saving your own settings
DMX fail mode (blackout; hold; full on; auto)
Good color rendering index (CRI)
Flicker-free
Monochrome 4 digit 7-segment LED display
With mounting bracket
Silent operation
The device is cooled by passive convection cooling
For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels
Application possibility: Suspended; on stand
Mains input and output for power linking up to 8 units

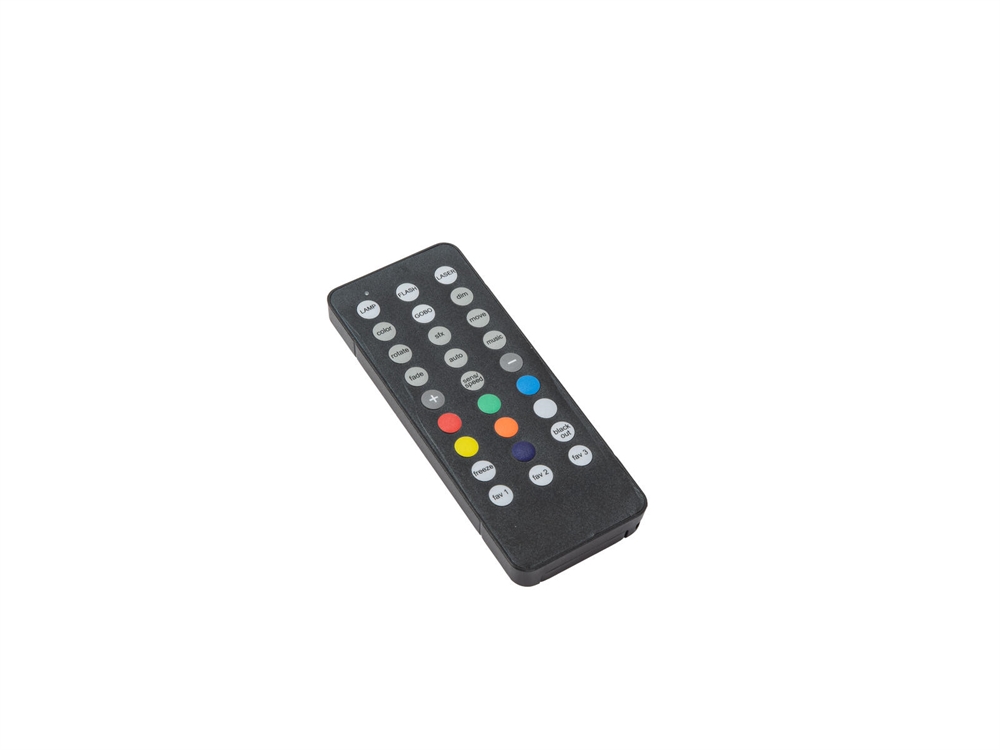

remote control

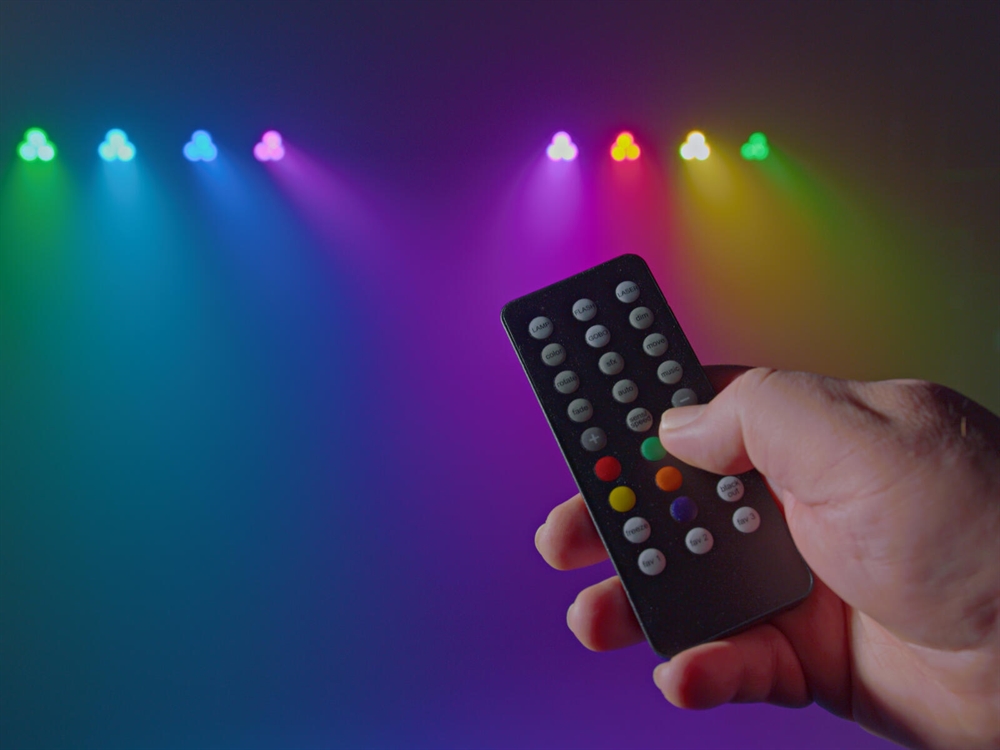

Wireless remote control: operating range up to 30m with line-of-sight

Scope of delivery

1 x device
1 x user manual
1 x power cord
1 x remote control
1 x battery

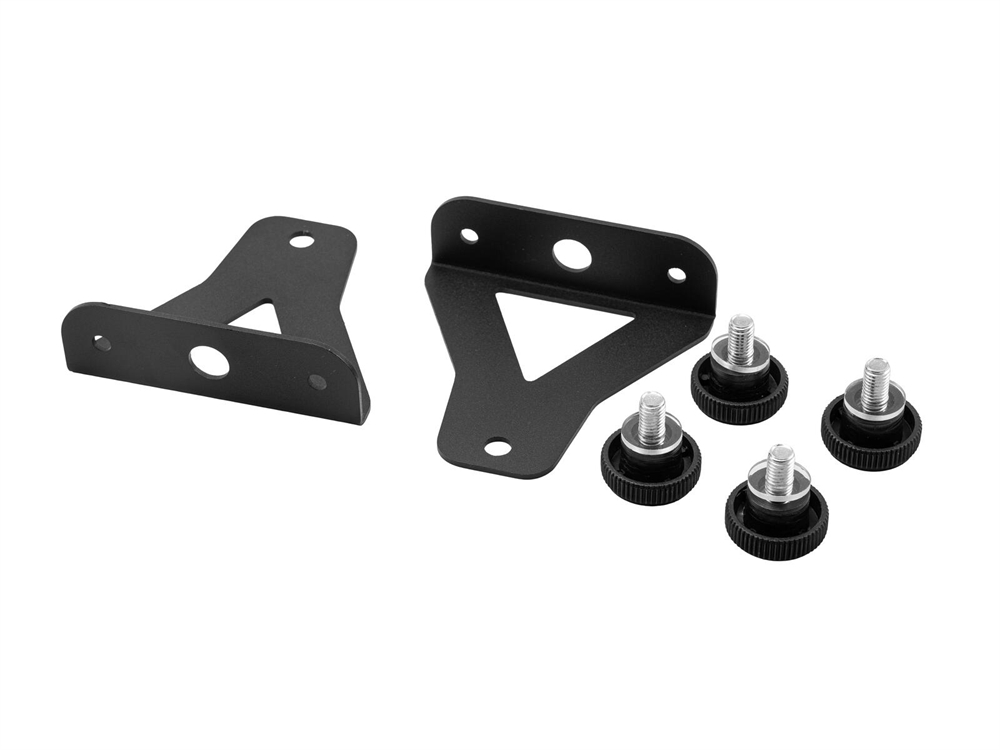

2 x mounting bracket
1 x declaration of conformity
9 x knurled screw

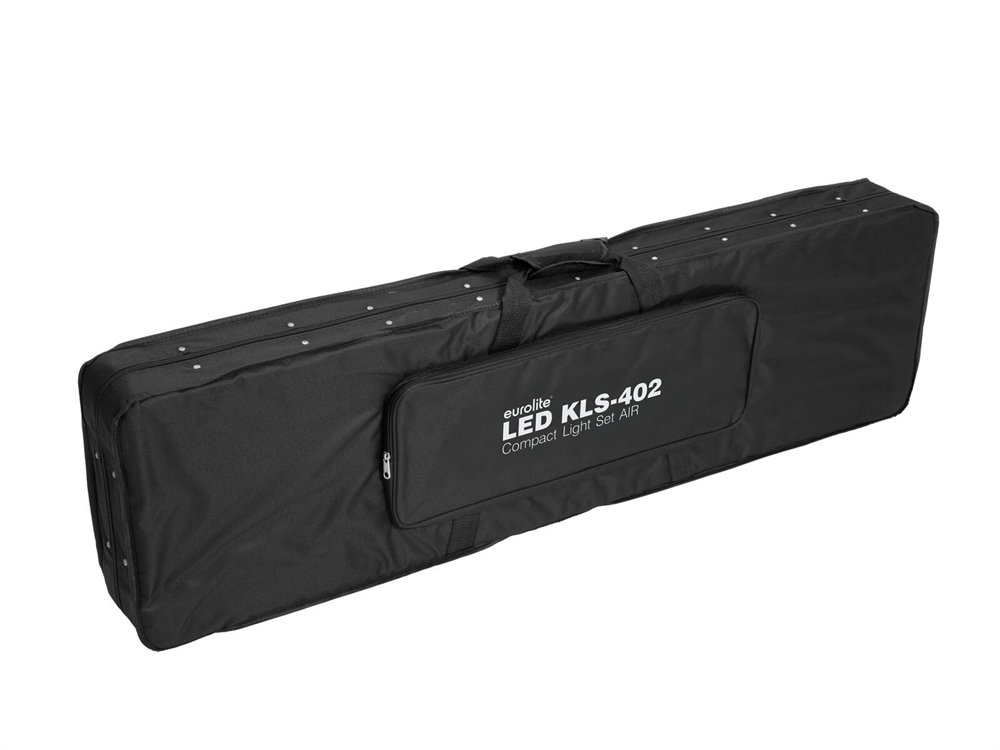

1 x bag
9 x washer
1 x adapter

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x P-Con (gray), mounting version Bypass 2 x IEC connector (F) mounting version fused / 5A
Device fuse:	5 x 20 mm, T 1.6 A fuse replaceable
Power output fuse per channel:	5 x 20 mm, T 5 A fuse replaceable
Lamp type:	LED lamp
LED type:	12 x 10 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
Flash rate:	0.3 - 20 Hz
DMX channels:	3; 4; 6; 8; 16; 18; 20
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version Bypass
Cooling:	Passive convection cooling
Control:	Stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
Projection:	Flicker-free
Range:	AirW: range up to 70m with line-of-sight
Carrier frequency:	2.4 GHz
Modulation:	GFSK
DMX fail mode:	Blackout; hold; full on; auto
Beam angle:	12°
Beam angle (1/2 peak):	Spot 12°
Beam angle (1/10 peak):	Spot 25°
Color temperature:	2880K
Color rendering index (CRI):	83 Ra
Housing color:	Black matte
Attachment system:	Tube: 1x Ø 35mm 2x mounting bracket
Display type:	1 x monochrome 4 digit 7-segment LED display
USB port:	1 x type A
Diameter mounting holes:	2 x Ø8mm
Dimensions:	Length: 104 cm Width: 5.5 cm Height: 24.9 cm
Weight:	7.40 kg
Noise classification:	Class 0 (no noise at all)
Power cord
Cable construction:	3 x 1.0 mm² H05VV-F
Cable length:	Approx. 3 m
Remote control
Battery:	1 x 12 V 23AE alkaline manganese included
Range:	Wireless remote control: range up to 30m with line-of-sight
Carrier frequency:	433.92 MHz
Bar
Material:	Metal, painted
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Varenr.: E-42109782
