| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 180 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input power supply cord with safety plug |
| Power output: | 1 x IP T-Con (F) mounting version |

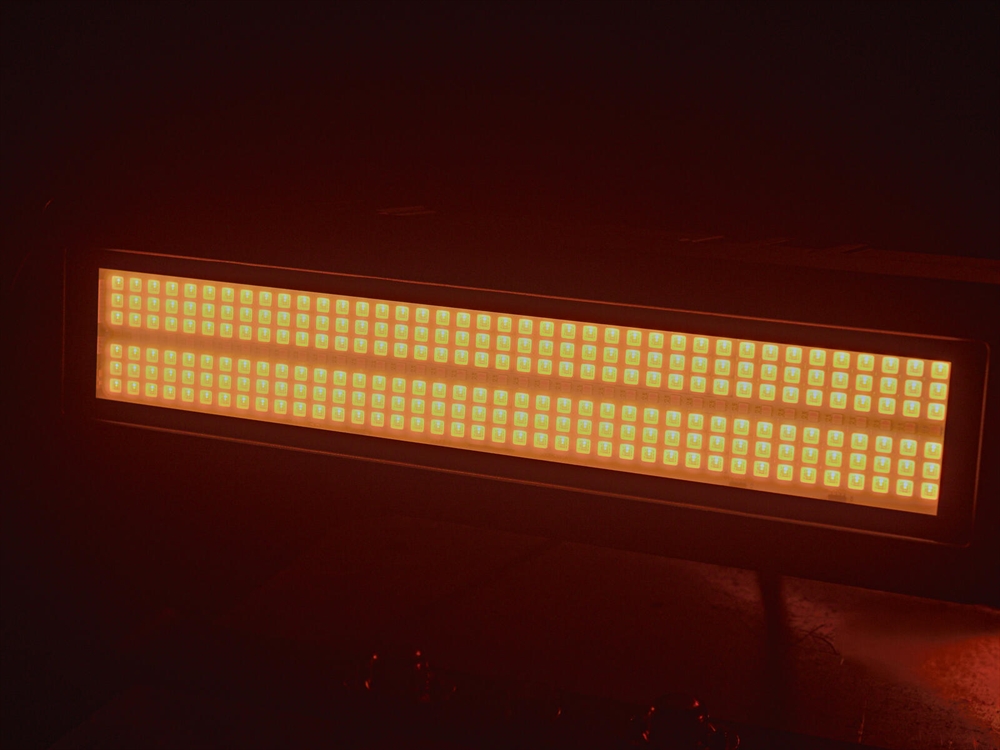

| Lamp type: | LED lamp |
| LED type: | 240 x 0.5 W SMD 5050 3in1 TCL RGB
40 x 1 W SMD 3030 2in1 BCL CW/WW |
| Flash rate: | 1 - 25 Hz |
| DMX channels: | 7; 11; 19; 25; 26; 32; 33; 35 |
| DMX input: | 1 x 3-pin XLR (M) mounting version IP |
| DMX output: | 1 x 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; sound to light via microphone; master/slave function; DMX |
| Preprogrammed in: | Light Captain |
| PWM frequency: | 4000 Hz |
| DMX fail mode: | Blackout; hold; auto; manual |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° multicolor |
| Color temperature: | 3200K - 6600K adjustable |
| Color rendering index (CRI): | 80 Ra |
| Lamp life: | 50000 h |
| Distance to wall: | 500 mm |
| Housing color: | Black matte |
| Attachment system: | Ø 12mm
Mounting bracket
Ø 12mm
Omega bracket |

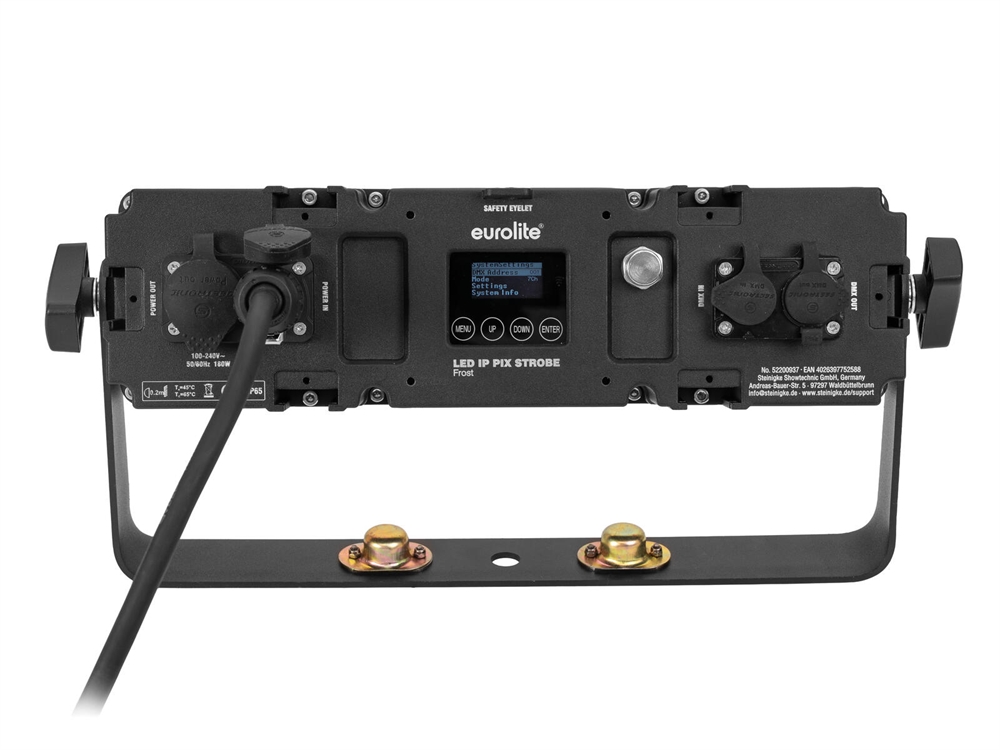

| Display type: | 1 x monochrome OLED display |
| Use of brands: | Built with SEETRONIC connector |
| Dimensions: | Length: 38 cm
Width: 10.8 cm
Height: 17.65 cm |
| Weight: | 3.70 kg |
| Noise classification: | Class 0 (no noise at all) |

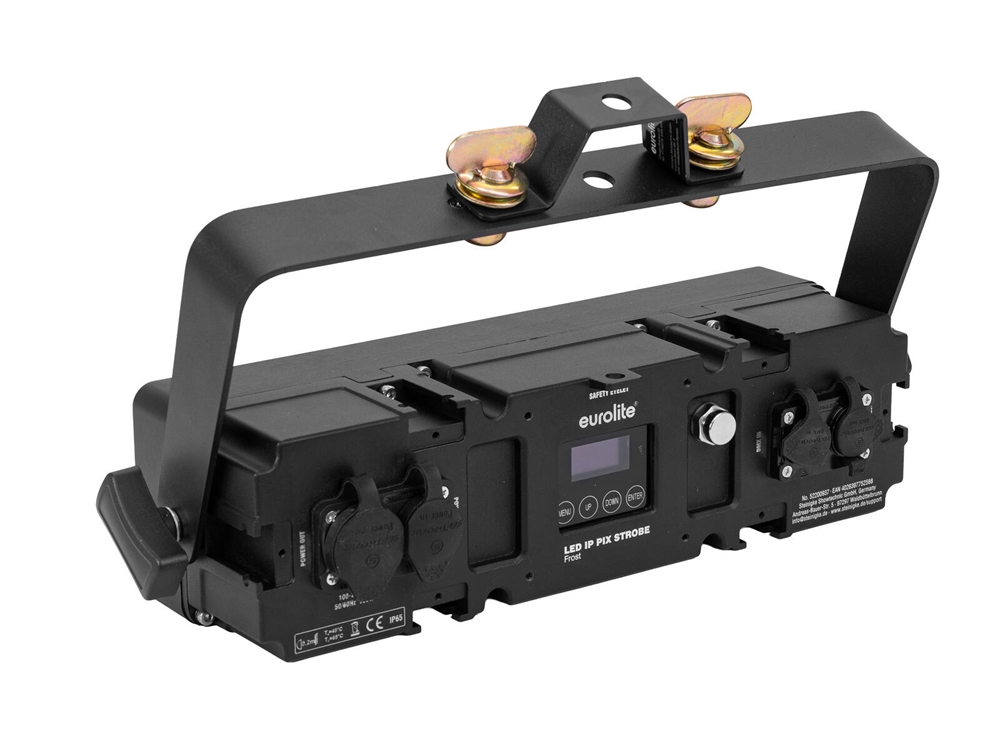

| Mounting bracket |
| Diameter mounting holes: | 1 x Ø12mm |
| Material: | Metal, painted |
| Power cord |
| Cable construction: | 3 x 1.5 mm² H07RN-F |
| Cable length: | Approx. 1.2 m |
| Omega bracket |
| Material: | Metal, painted |
| Device |
| Material: | Metal, painted |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
