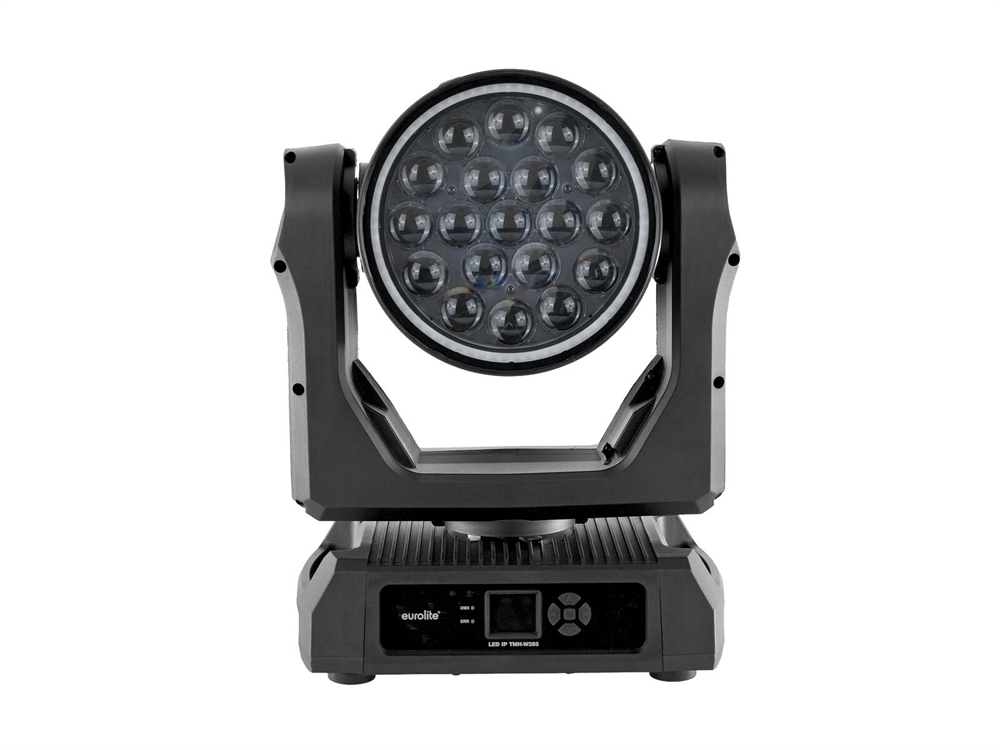

EUROLITE LED IP TMH-W285 Hypno Moving Head Wash

Ikke på lager
Bedømmelse for EUROLITE LED IP TMH-W285 Hypno Moving Head Wash
Produktet er endnu ikke bedømt

8.199,00DKK ved 1 stk.

Vis uden moms

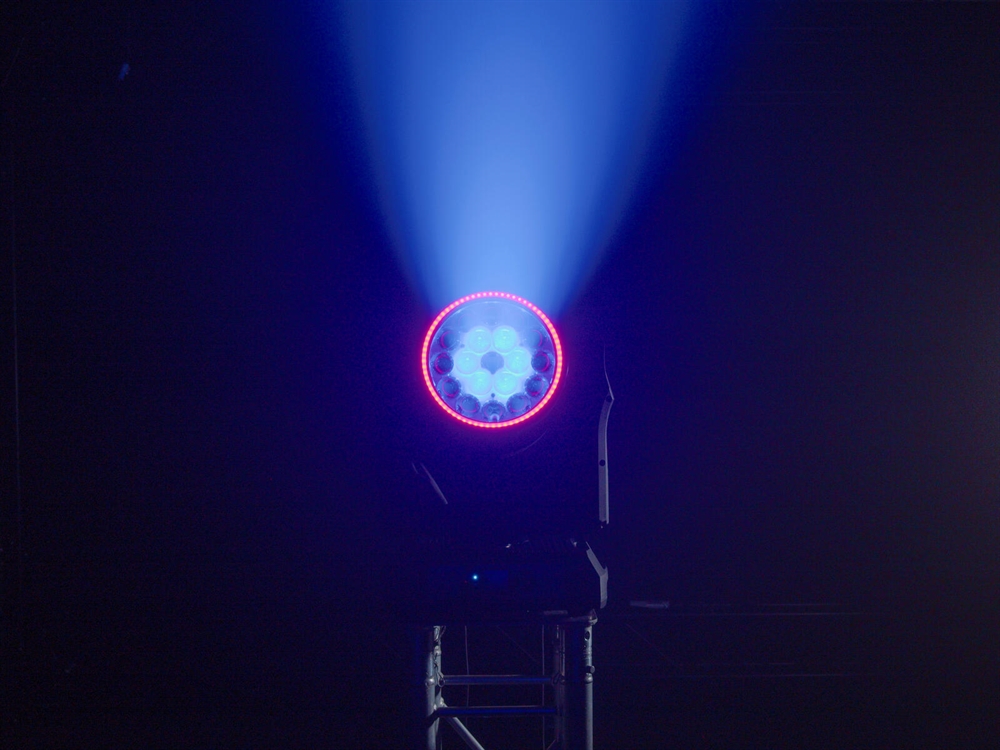

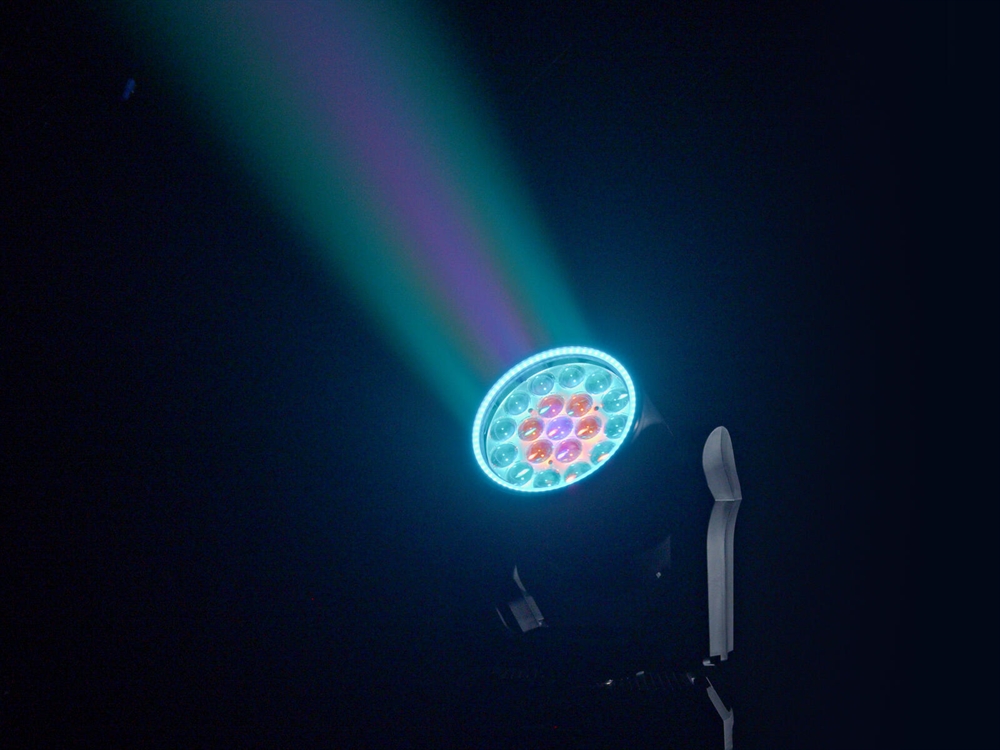

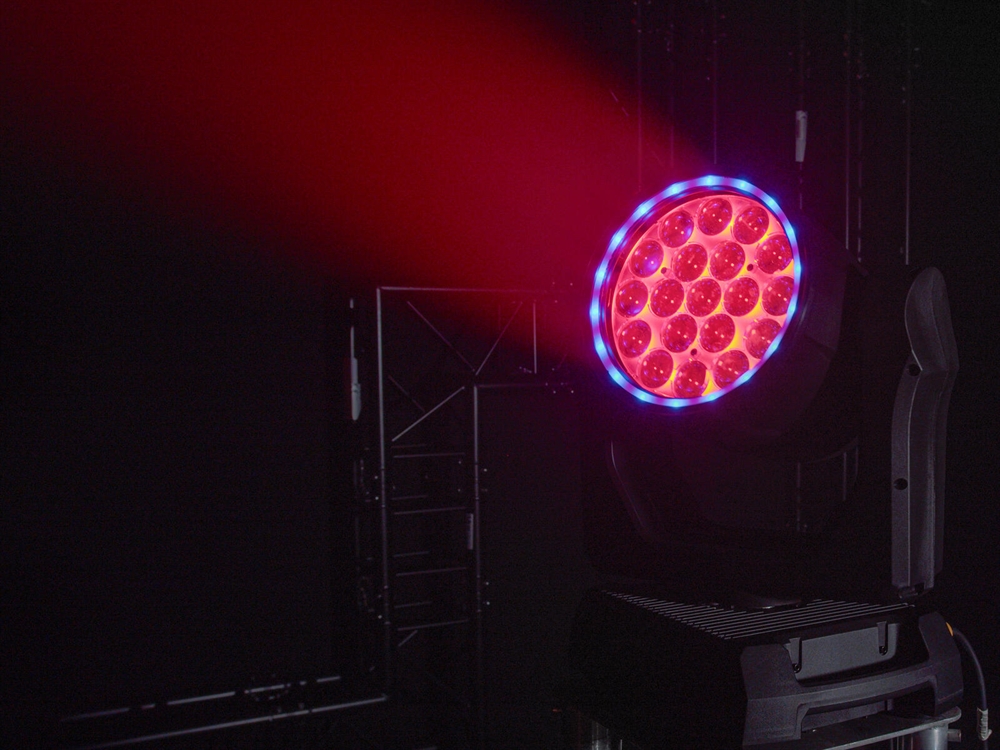

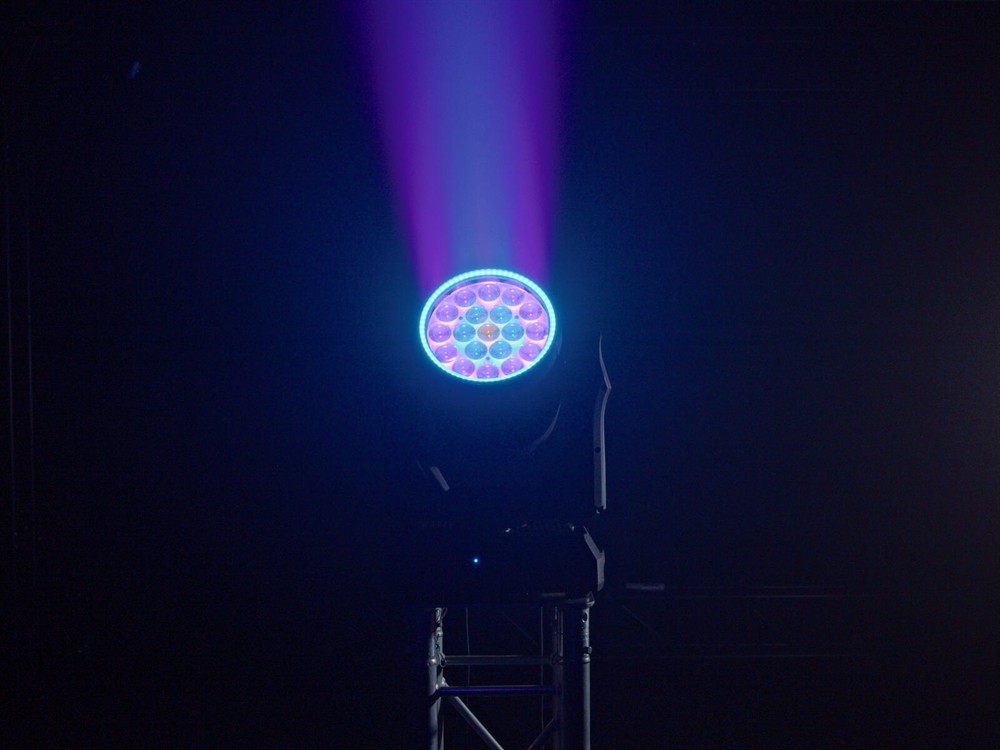

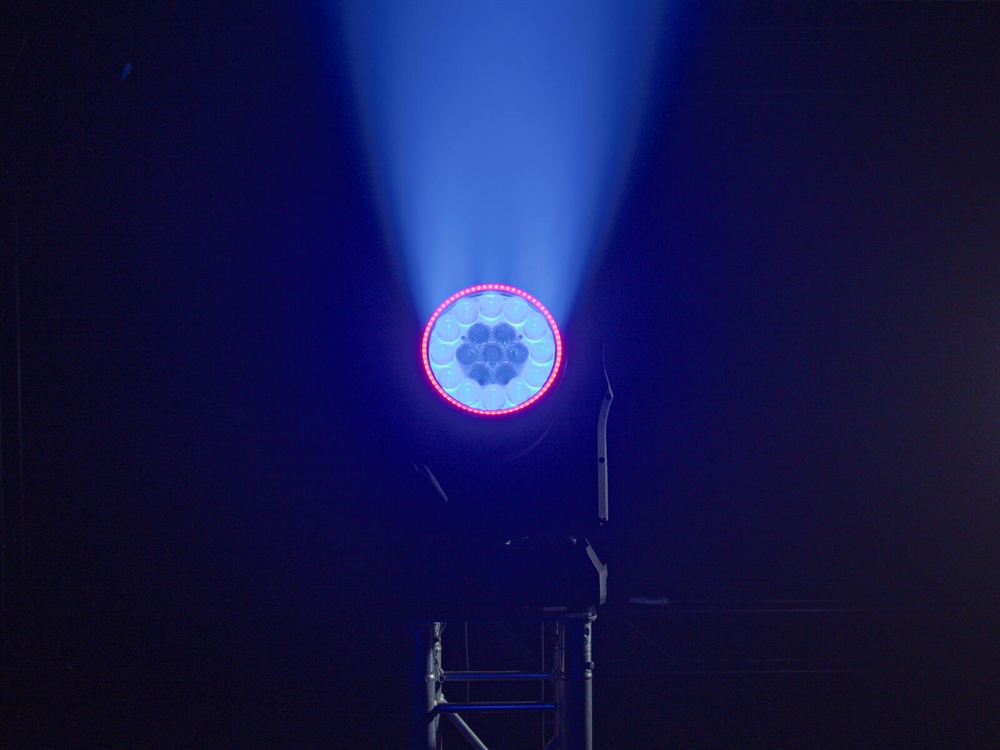

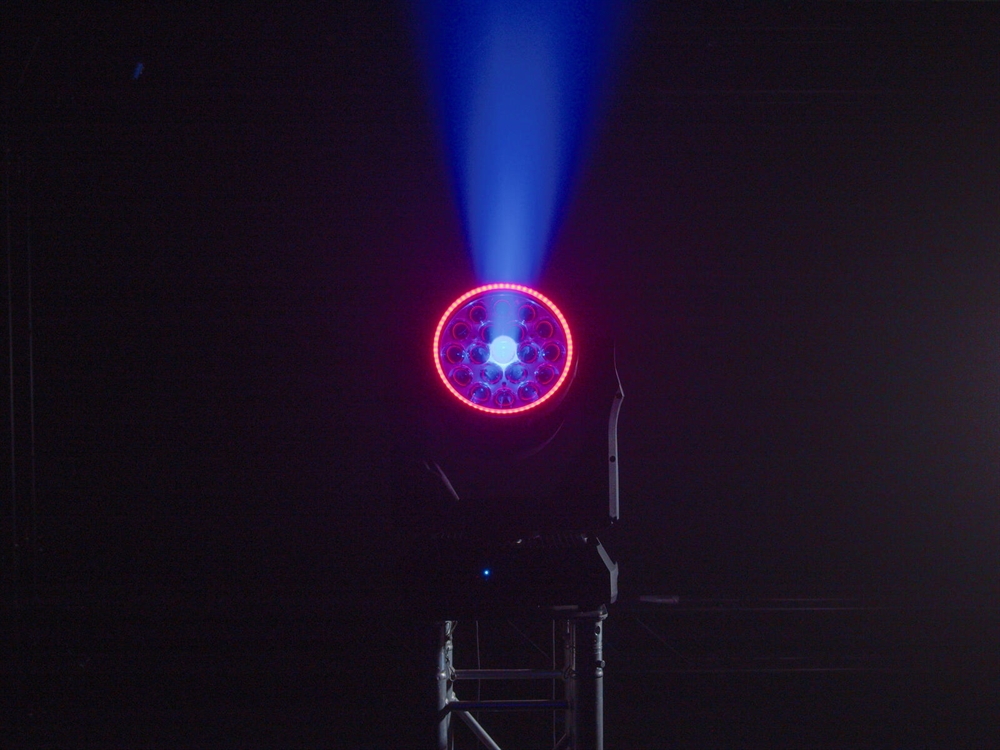

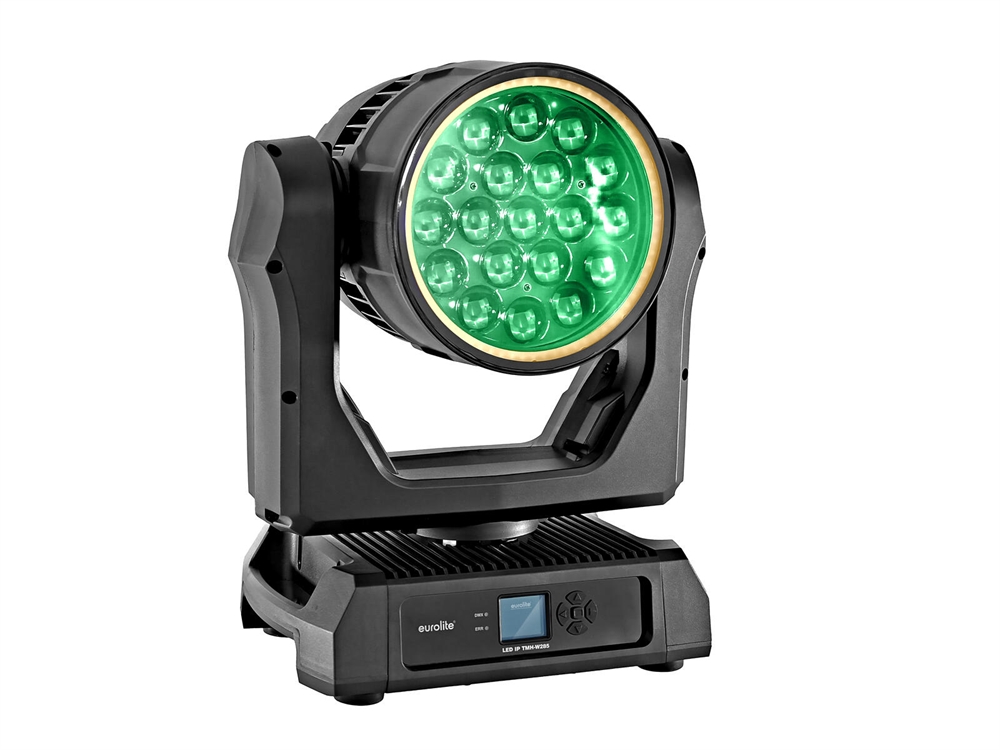

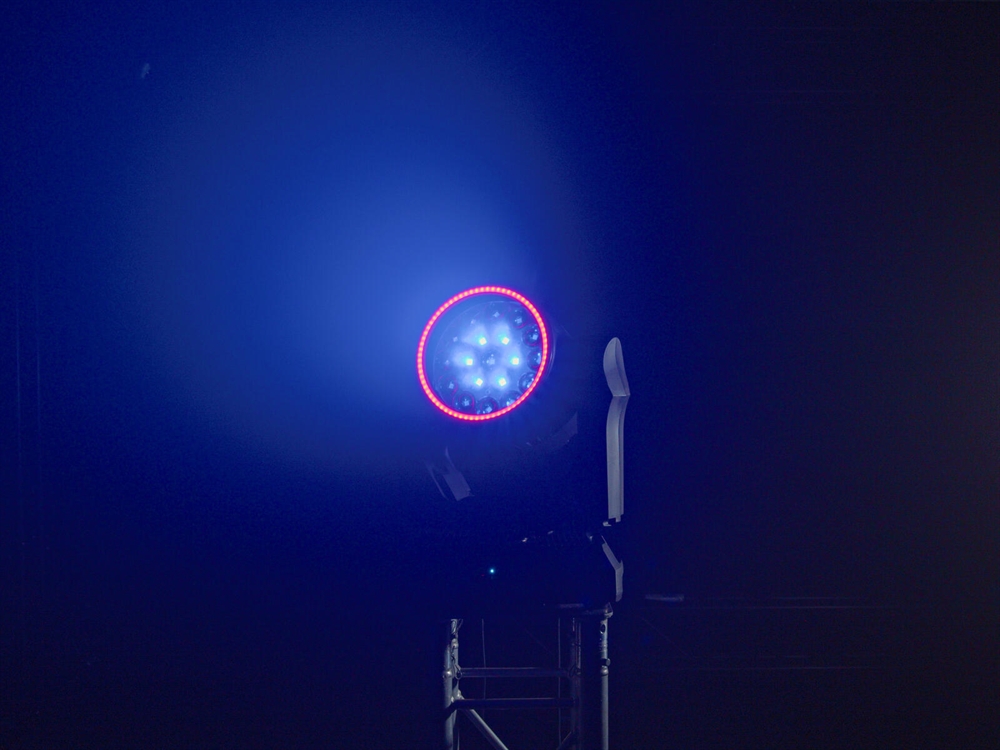

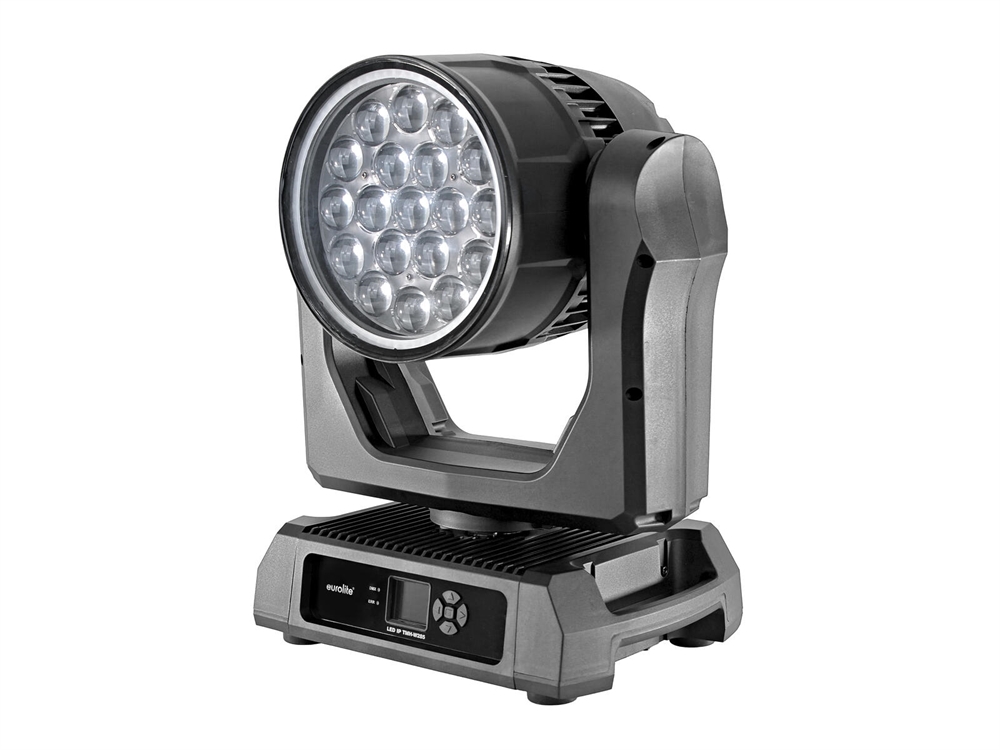

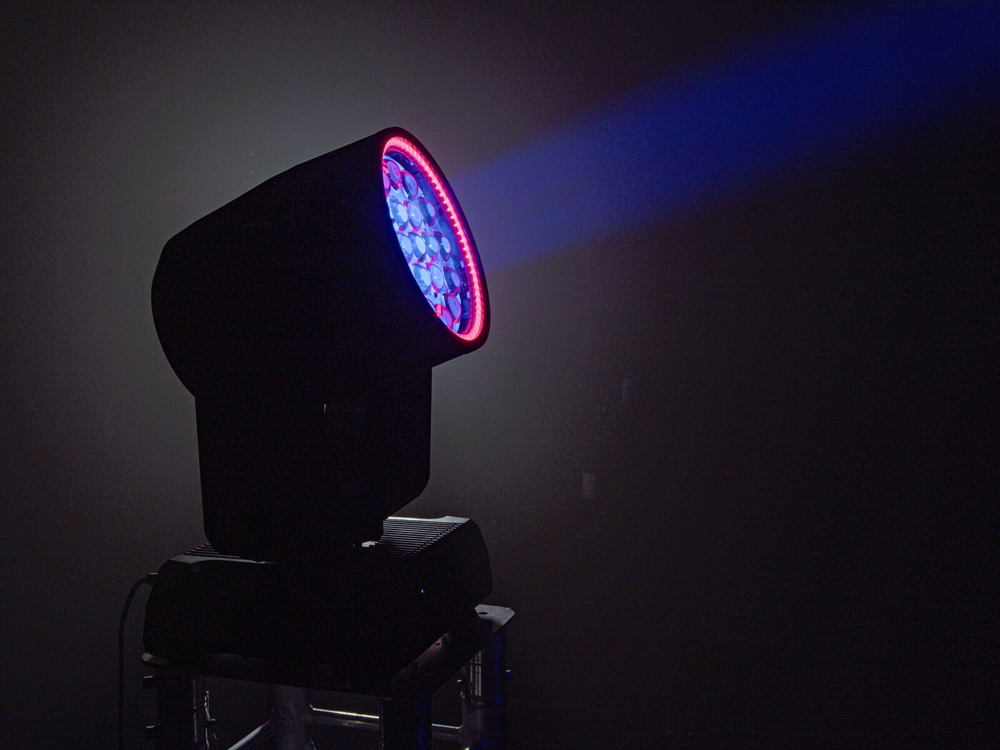

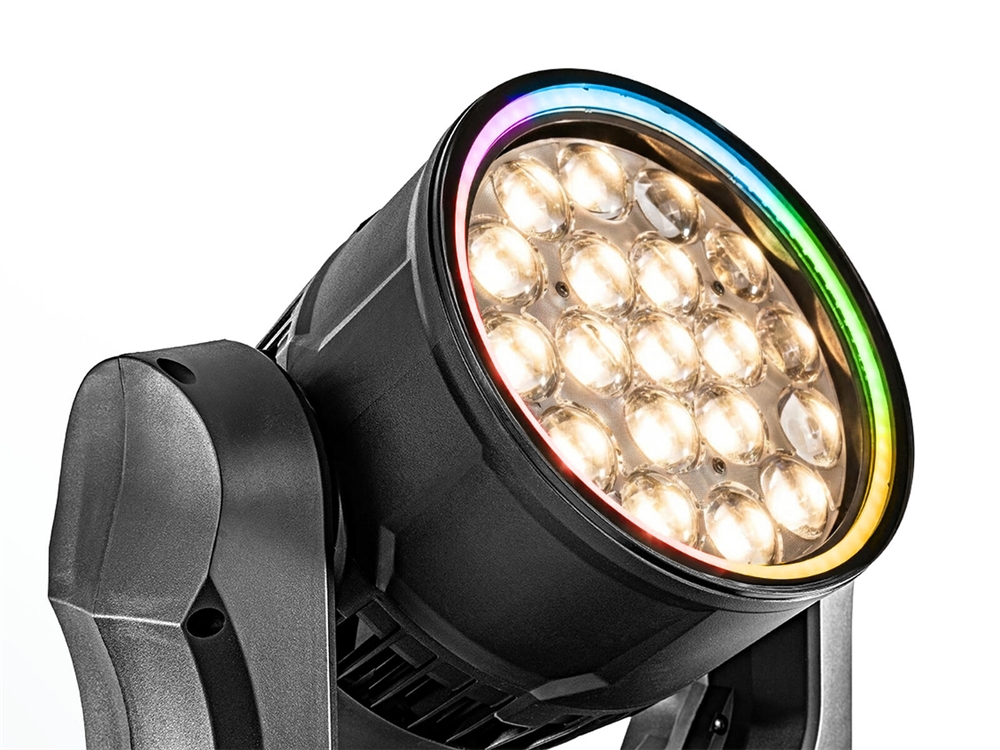

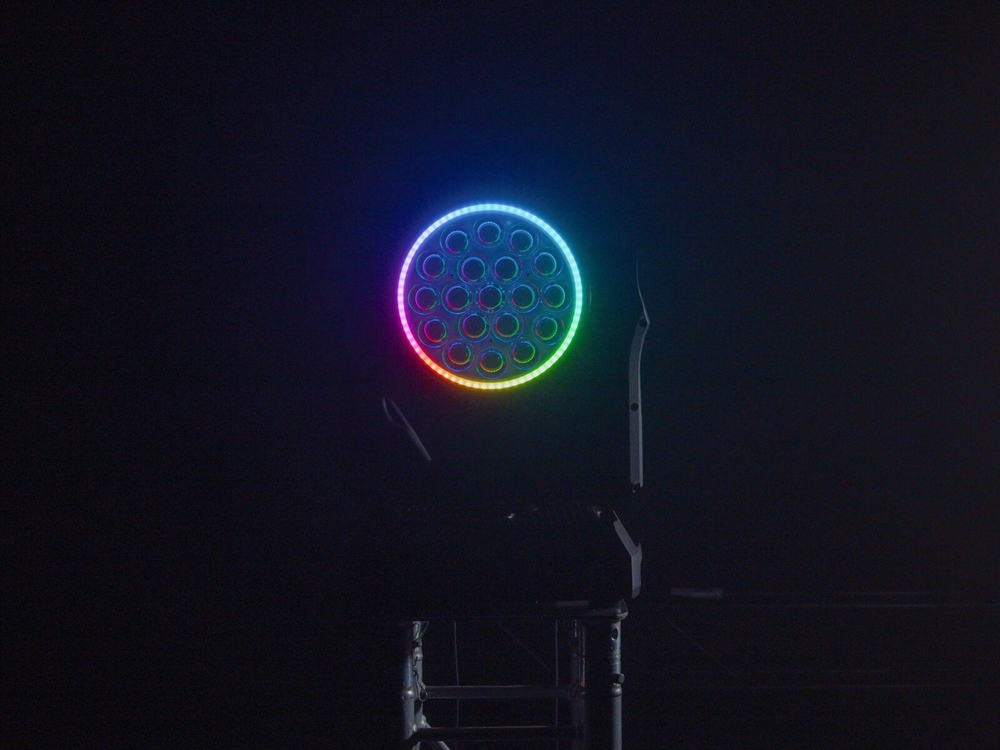

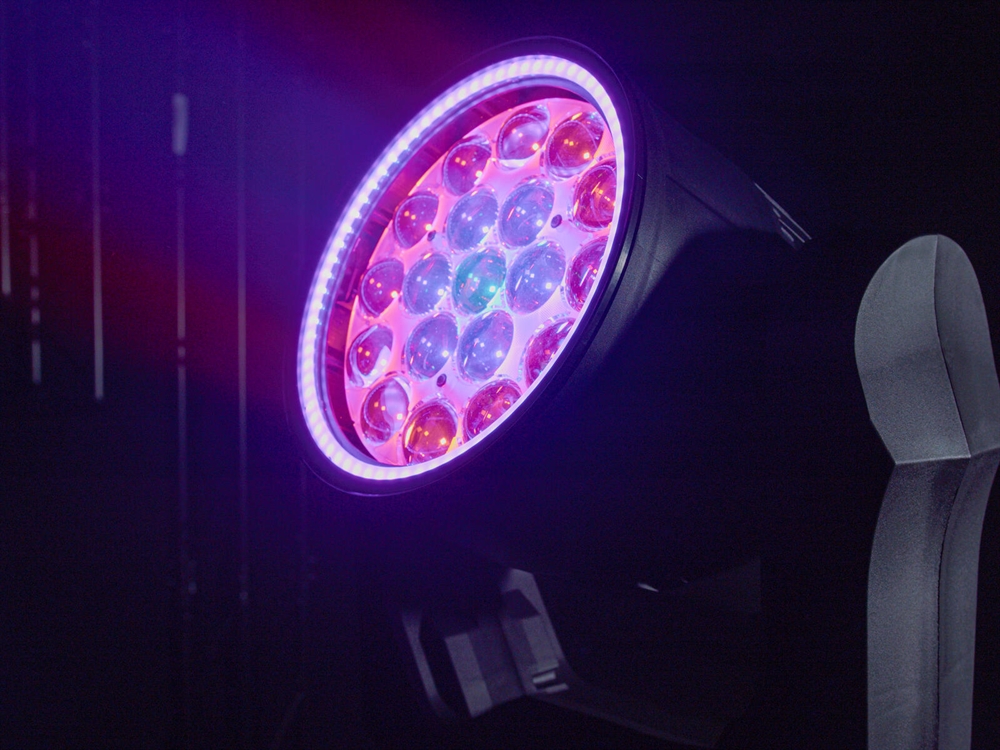

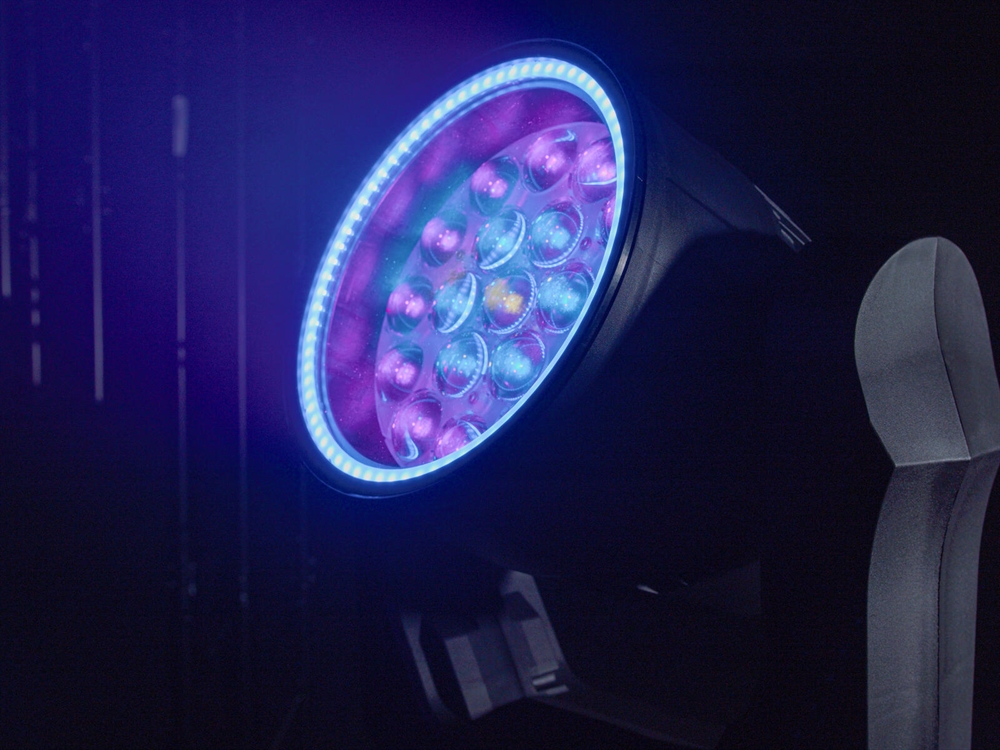

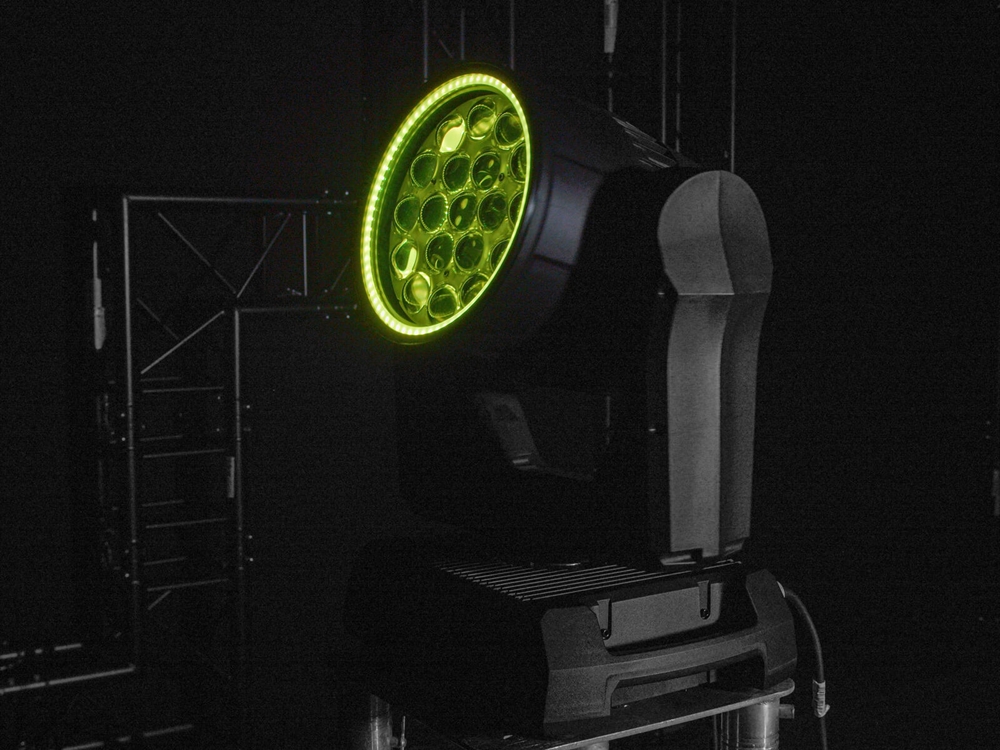

Weather-proof moving washlight with RGBW LEDs, backlighting via RGB hypno LEDs and zoom

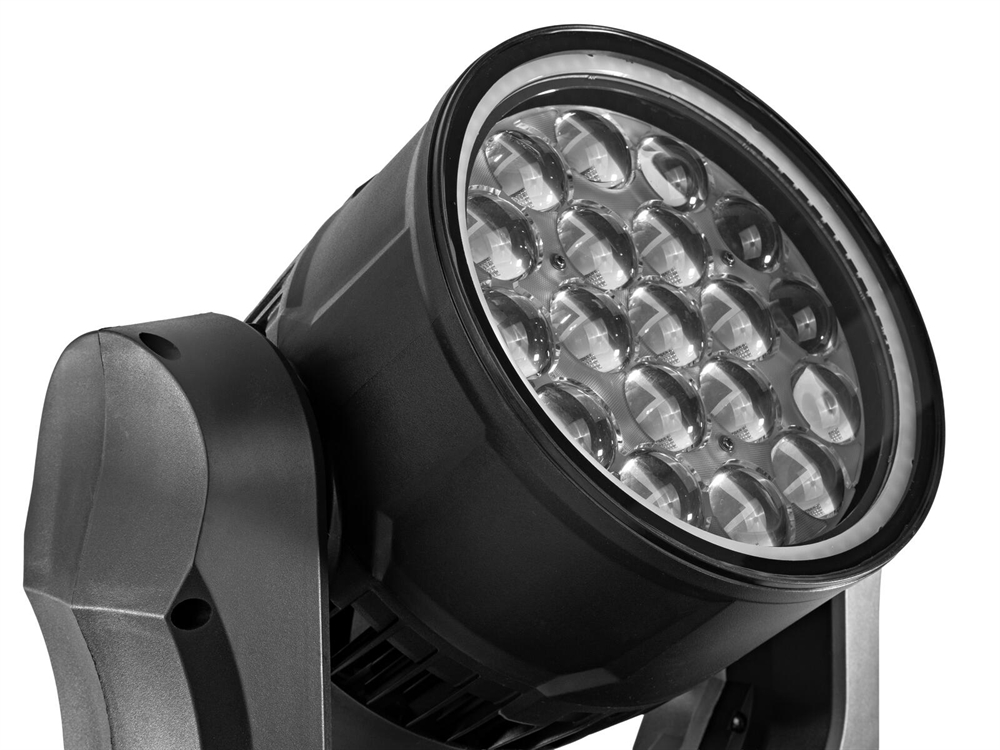

19 LEDs 15 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
3 segments controlled separately
72 LEDs 0.12 W SMD 2528 3in1 TCL RGB (homogenous color mix)
Positioning within 540° PAN, 260° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Zoom motor driven
Dimmer; Dimmer speed (step response) adjustable; color blend stepless; color macros; colors preset
Wash effect; beam effect
The device is cooled by cooling fan at the head
Control via stand-alone; DMX; RDM; master/slave function
Flicker-free
DMX fail mode (hold; blackout)
With a beam angle of 2° - 48°
With omega bracket

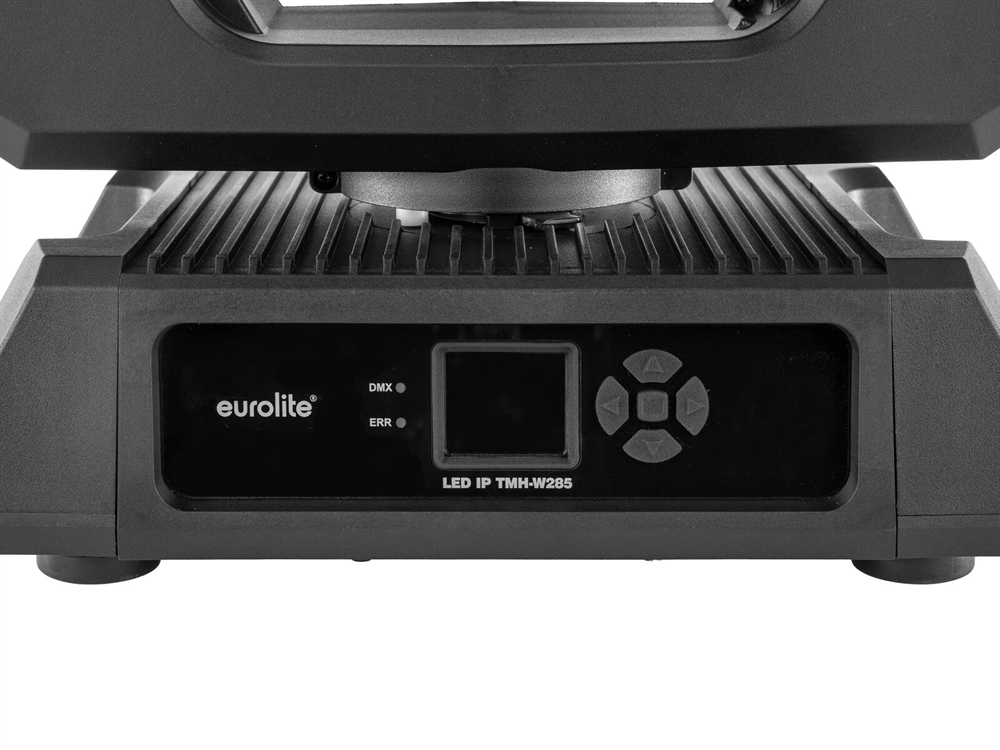

Multicolor LCD display
2 Rugged carrying handles
4 x rubber feet
Mains input and output for power linking up to 4 units
Built with SEETRONIC connector
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Architecture; stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; rental; restaurants, bars and hotels; theater
Application possibility: Standing; suspended
Preprogrammed in Light Captain

Weather-proof moving washlight with RGBW LEDs, backlighting via RGB hypno LEDs and zoom

19 LEDs 15 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
3 segments controlled separately
72 LEDs 0.12 W SMD 2528 3in1 TCL RGB (homogenous color mix)
Positioning within 540° PAN, 260° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Zoom motor driven
Dimmer; Dimmer speed (step response) adjustable; color blend stepless; color macros; colors preset
Wash effect; beam effect
The device is cooled by cooling fan at the head
Control via stand-alone; DMX; RDM; master/slave function
Flicker-free
DMX fail mode (hold; blackout)
With a beam angle of 2° - 48°
With omega bracket
Multicolor LCD display
2 Rugged carrying handles
4 x rubber feet
Mains input and output for power linking up to 4 units
Built with SEETRONIC connector
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Architecture; stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; rental; restaurants, bars and hotels; theater
Application possibility: Standing; suspended
Preprogrammed in Light Captain

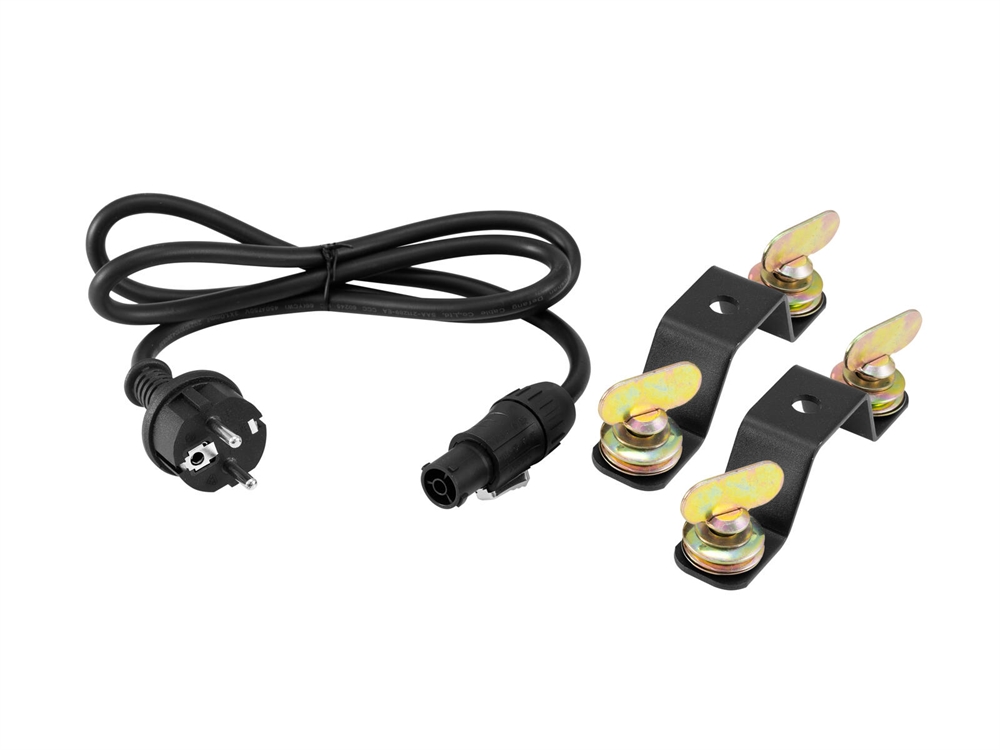

Scope of delivery

1 x moving light
1 x user manual
1 x power cord
2 x omega bracket

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	195 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction:	3 x 1.0 mm² H07RN-F
Power output:	IP T-Con (F) mounting version
Lamp type:	LED lamp
LED type:	19 x 15 W SMD 5050 4in1 QCL RGBW (homogenous color mix) 72 x 0.12 W SMD 2528 3in1 TCL RGB (homogenous color mix)
Max. TILT movement:	260° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	1.3 - 10.6 Hz
Equipment:	Zoom motor driven
DMX channels:	18; 26

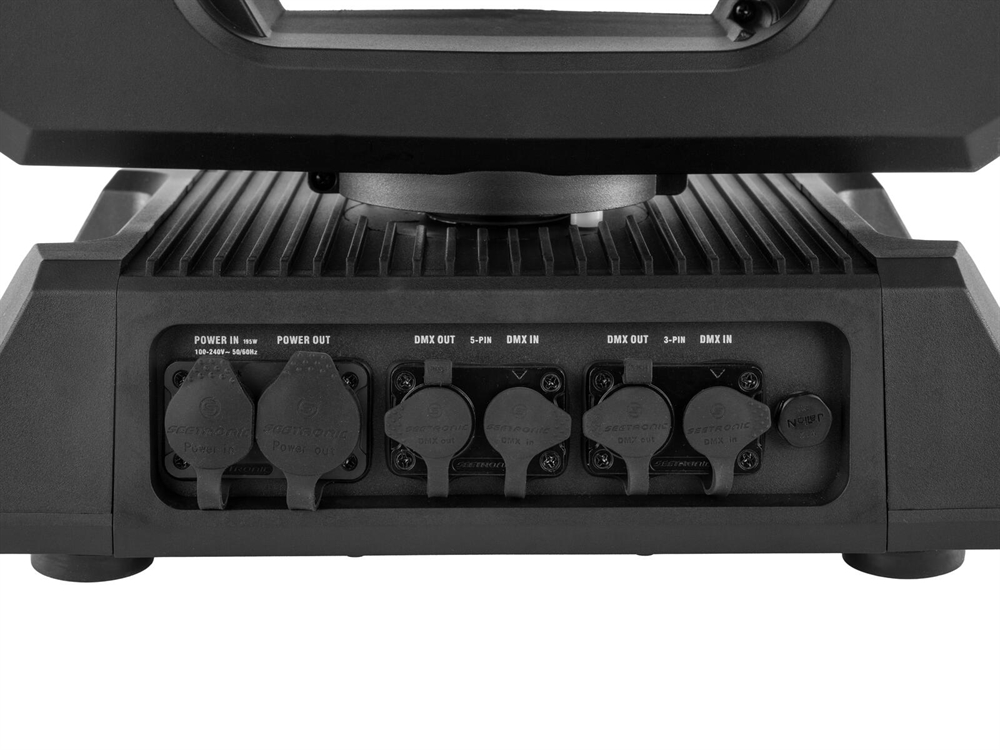

DMX input:	3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP 1 x 5-pin XLR (F) mounting version IP
Cooling:	1 x cooling fan at the head
Control:	Stand-alone; DMX; RDM; master/slave function
Preprogrammed in:	Light Captain
Projection:	Flicker-free
PWM frequency:	26000 Hz
DMX fail mode:	Hold; blackout
Beam angle:	2° - 48°
Beam angle (1/2 peak):	2 - 30°
Beam angle (1/10 peak):	8 - 48°
Housing color:	Black
Attachment system:	2x omega bracket
Display type:	Multicolor LCD display
Status LED:	DMX, fault
Carrying handle:	2 pc/pcs
Transport aid:	4 x rubber feet

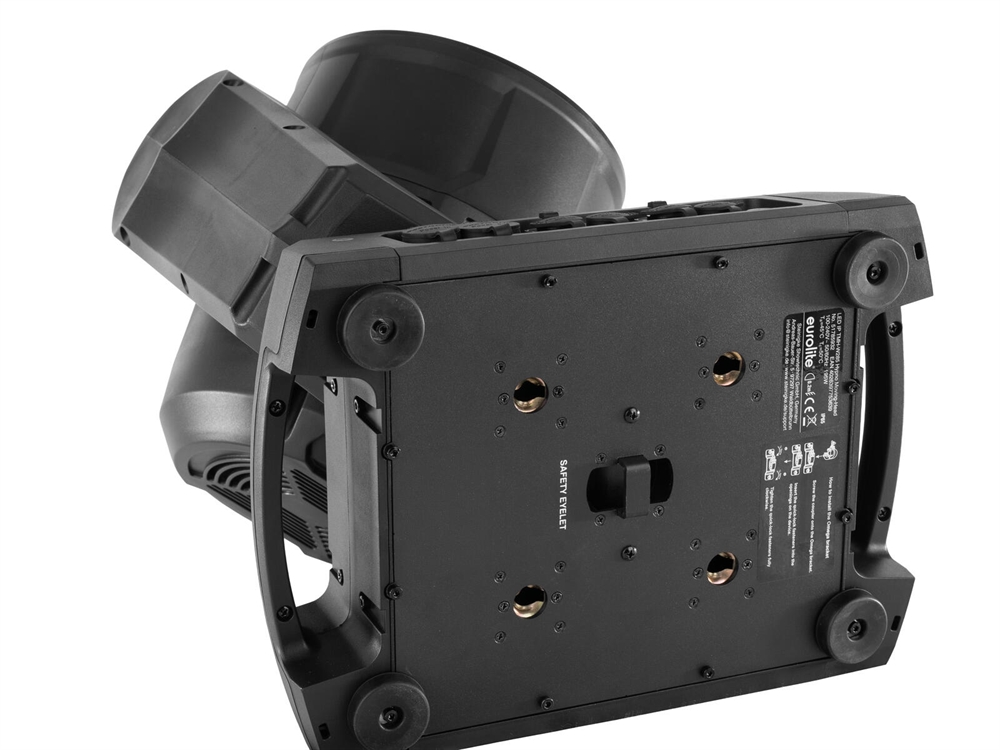

Diameter mounting holes:	2 x Ø11mm
Use of brands:	Built with SEETRONIC connector
Material:	Plastic
Dimensions:	Width: 38.8 cm Depth: 25.7 cm Height: 49.1 cm
Weight:	15.40 kg
Noise classification:	Class 2 (slight noise) depending on mode used
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Varenr.: E-51785932
