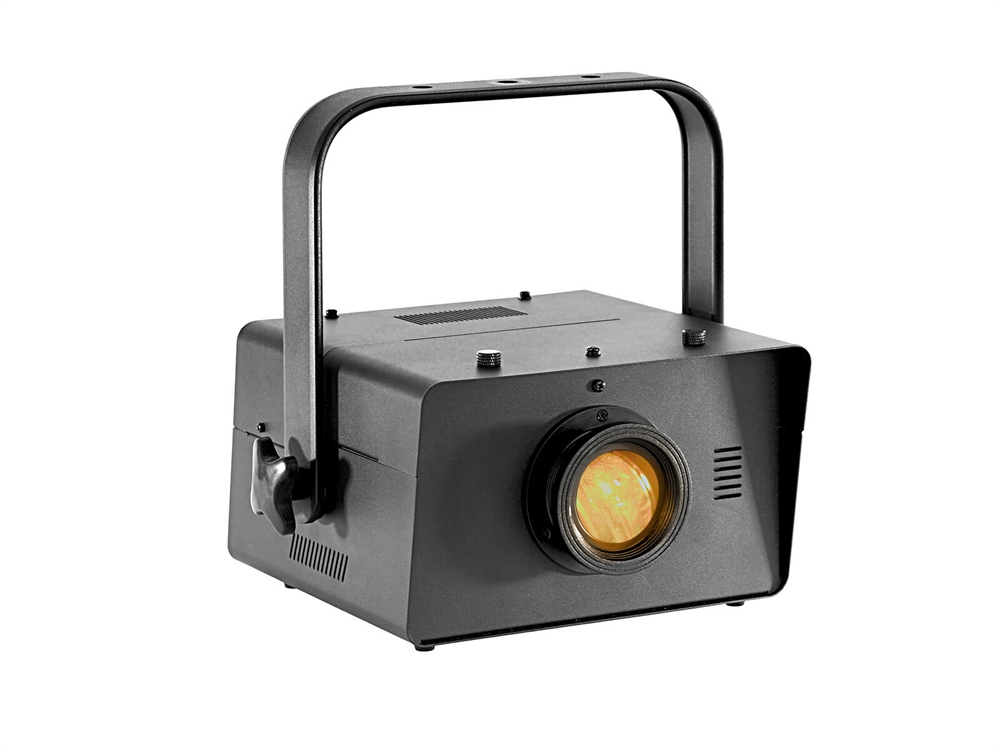

EUROLITE LED EVO-120 QCL Multi Effect Projector

EUROLITE LED EVO-120 QCL Multi Effect Projector
  • Ikke på lager
  • Bedømmelse for EUROLITE LED EVO-120 QCL Multi Effect Projector
    Produktet er endnu ikke bedømt
  •
    4.609,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

Trustpilot
Innovative projection effect with magnetically interchangeable effect wheels



  • 2 structure wheels, 1 animation wheel and 1 gobo wheel with 5 depictions included in the delivery
  • Up to 2 wheels can be easily inserted via magnetic attachment systems
  • Depending on the wheel combination, the sharpness setting and color choice, the effect produced is completely different
  • 1 LED 120 W COB (chip-on-board) 4in1 QCL RGBW
  • Exact 16 bit resolution at Dimmer, color, gobo rotation
  • Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
  • Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response); pulse-width modulation adjustable; Rotation speed adjustable; Rotation direction adjustable; color fade adjustable
  • Water effect; gobo effect; crystal effect
  • Gobo wheel with static gobos, 5 gobos
  • The device is cooled by temperature-controlled fan
  • Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
  • Flicker-free
  • DMX fail mode (blackout; hold)
  • With a beam angle of 35°
  • With mounting bracket
  • Monochrome OLED display
  • Mains input and output for power linking up to 8 units
  • Built with SEETRONIC connector
  • For application areas such as: Stage; clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; theater; video and photography; advertisement/Shop window
  • Very quiet working noise
  • Application possibility: Suspended; on stand; wall mounting
  • Preprogrammed in Light Captain


Innovative projection effect with magnetically interchangeable effect wheels

  • 2 structure wheels, 1 animation wheel and 1 gobo wheel with 5 depictions included in the delivery
  • Up to 2 wheels can be easily inserted via magnetic attachment systems
  • Depending on the wheel combination, the sharpness setting and color choice, the effect produced is completely different
  • 1 LED 120 W COB (chip-on-board) 4in1 QCL RGBW
  • Exact 16 bit resolution at Dimmer, color, gobo rotation
  • Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
  • Dimmer electronic; dimmer curves with adjustable response; Dimmer speed (step response); pulse-width modulation adjustable; Rotation speed adjustable; Rotation direction adjustable; color fade adjustable
  • Water effect; gobo effect; crystal effect
  • Gobo wheel with static gobos, 5 gobos
  • The device is cooled by temperature-controlled fan
  • Control via DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
  • Flicker-free
  • DMX fail mode (blackout; hold)
  • With a beam angle of 35°
  • With mounting bracket
  • Monochrome OLED display
  • Mains input and output for power linking up to 8 units
  • Built with SEETRONIC connector
  • For application areas such as: Stage; clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; theater; video and photography; advertisement/Shop window
  • Very quiet working noise
  • Application possibility: Suspended; on stand; wall mounting
  • Preprogrammed in Light Captain


Scope of delivery
  • 1 x light effect
  • 1 x power cord
  • 1 x user manual
  • 4 x effect wheel


Power supply:100-240 V AC, 50/60 Hz
Power consumption:120 W
IP classification:IP20
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:3 x 1.5 mm² H05VV-F
Power output:P-Con (gray), mounting version
Fuse:5 x 20 mm, T 2 A
Lamp type:LED lamp
LED type:1 x 120 W COB (chip-on-board) 4in1 QCL RGBW
Flash rate:1 - 37 Hz
Equipment:Gobo wheel with static gobos; focus manual; animation wheel; texture wheel
Gobos:Gobo wheel with static gobos, 5 gobos
DMX channels:6; 10; 17; 20
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:1 x temperature-controlled fan
Control:DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB; RDM; stand-alone; master/slave function
Preprogrammed in:Light Captain
Projection:Flicker-free
DMX fail mode:Blackout; hold
Beam angle:35°
Beam angle (1/2 peak):35°
Beam angle (1/10 peak):35°
Housing color:Black
Attachment system:Mounting bracket
Display type:Monochrome OLED display
USB port:1 x type A
Diameter mounting holes:3 x Ø10mm
Use of brands:Built with SEETRONIC connector
Material:Steel
Dimensions:Length: 25.2 cm
Width: 30.0 cm
Height: 27.3 cm
Weight:4.90 kg
Noise classification:Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Varenr.: E-51918551
