Elation Proteus SMARTY HYBRID WMG, MSD Platinum 200 Flex 280W IP65

Elation Proteus SMARTY HYBRID WMG, MSD Platinum 200 Flex 280W IP65
  • Fjernlager
  • Kontakt os om leveringstid
  • Bedømmelse for Elation Proteus SMARTY HYBRID WMG, MSD Platinum 200 Flex 280W IP65
    Produktet er endnu ikke bedømt
  •
    82.995,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

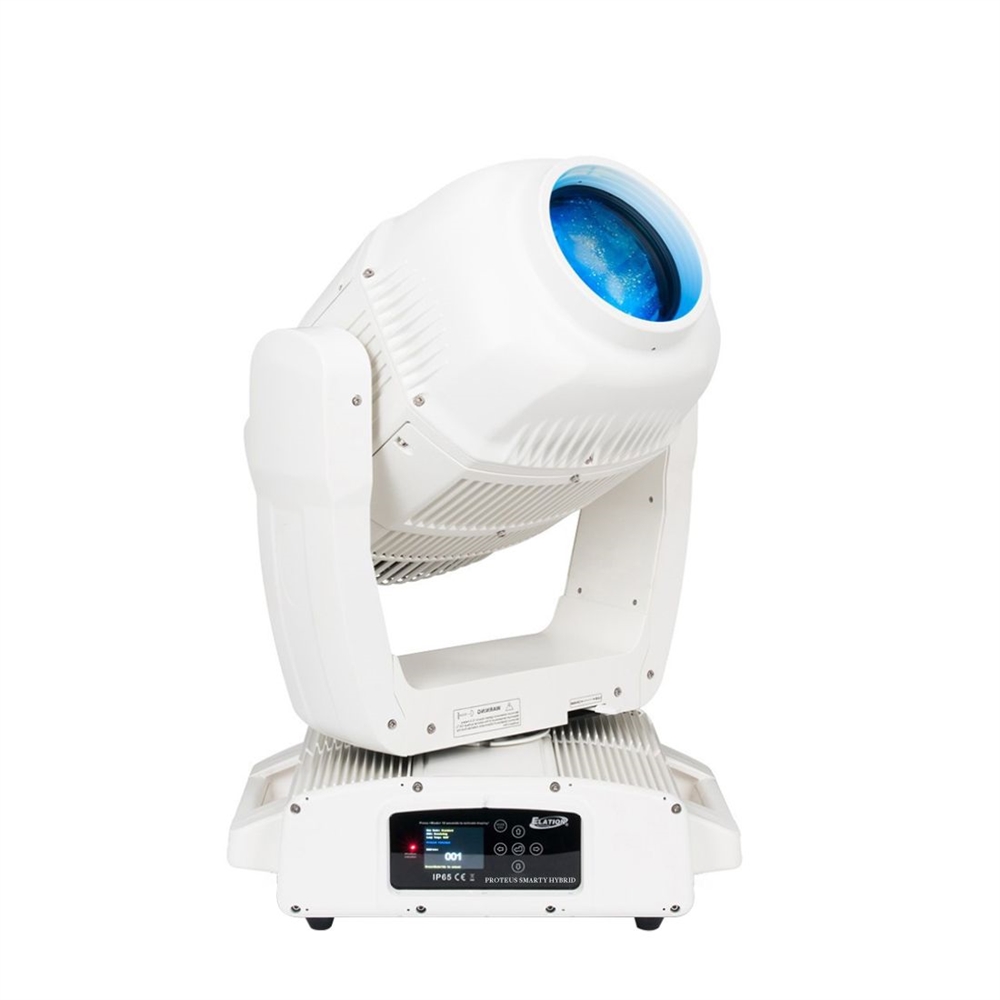

The Proteus Smarty Hybrid™ WMG is full featured IP65 certified Spot, Beam and Wash Hybrid fixture for indoor and outdoor use. Provided in White Marine Grade (WMG) coating it is designed to withstand the harsh exterior conditions of marine environments found in ship and shore based installations. An optional Hardwire option is available on request.

It features the all new Philips™ MSD Platinum 200 Flex lamp with “FLEX” technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours.

Features include up to 11,000 total lumen output, motorized zoom ranges of 1° to 18° in beam mode, 3° to 27° in spot mode, and 5° to 33° in wash mode, a full CMY color mixing system, a full frost filter for wash effects, 13 dichroic colors including a quad-color filter, CTB, CTO, and UV, 8 rotating—interchangeable glass and 12 static-stamped metal gobos, a 16-facet and 4-facet linear independent rotating prisms, multiple CMY color, gobo, and prism macros, motorized focus with an auto-focus feature, high speed shutter and strobe, lamp hibernation mode, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, IP65 5pin XLR, IP65 RJ45 ethernet in/out and IP65 Locking Power Cable in connections, full color 180° reversible LCD menu display with battery backup, and a multi-voltage universal auto switching power supply (100-240V).



***Only on Special Order***


FEATURES

IP65 Certified 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology from 190 to 280W and Lamp Hibernation with up to 6,000 Hour Lamp Life
Full CMY Color Mixing System
Rotating and Static Gobos, Dual Prism, Frost
Zoom from 1° Beam to 33° Wash and Auto Focus option
White Marine Grade Housing
Customizable Hardwire Option


SOURCE

Philips™ MSD Platinum 200 Flex 280W Lamp
Up To 6,000 Hour Lamp Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

11,000 Total Output Lumen
128,426 LUX 11,931 FC @ 15m (49.2’) (Min Zoom Beam)
135,108 LUX 12,552 FC @ 5m (16.4’) (Min Zoom Spot)

Beam


Zoom Range 1° - 18°
Beam Angle 1.1° - 7°
Field Angle 2.6° - 17.8°

Spot


Zoom Range 3° - 27°
Beam Angle 1.8° - 18.7°
Field Angle 2.8° - 28.8°

Wash


Zoom Range 5° - 33°
Beam Angle 2.6° - 24.9°
Field Angle 4.6° - 40.7°


EFFECTS

Beam, Spot, Wash Modes
Motorized Zoom
Full Frost Filter for Wash Effects
16-Facet and 4-Facet Linear Prisms
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 262°


COLOR

Full CMY Color Mixing System
13 Colors including Quad Color, CTO, CTB, and UV


GOBOS

2 Gobo Wheels
8 Rotating / Indexing Interchangeable Glass Gobos
12 Static-Stamped Metal Gobos


CONTROL / CONNECTIONS

2 DMX Channel Modes (20 / 34)
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
IP65 locking 5pin XLR DMX In/Out
IP65 locking RJ45 ethernet In/Out
IP65 locking Power In
With Wired Digital Communication Network


SIZE / WEIGHT

Length: 444.71mm (17.5 in)
Width: 459mm (17.88 in)
Height: 685mm (26.97 in)
Center Spacing: 551mm (21.69 in)
Weight: 35.5kg (78.26 lbs.)


ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
Max Power Consumption 500W
BTU/hr (+/- 10%) 1,705


Dataark / Info Blad
Varenr.: M-1237000215
