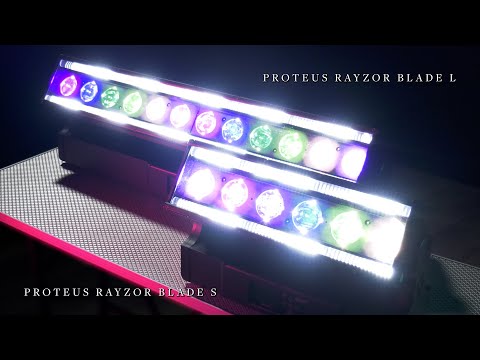

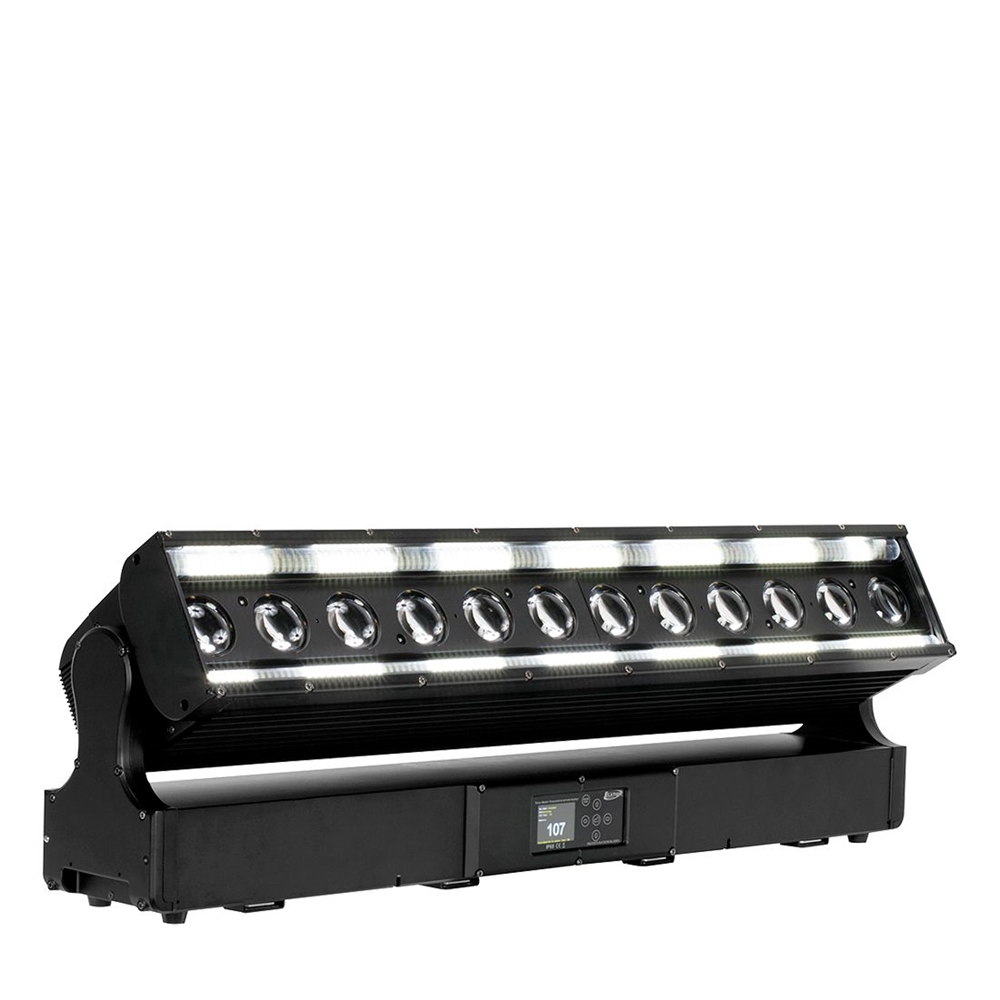

Elation PROTEUS RAYZOR BLADE L, 12x 60W RGBW LED with Pixel Control

Fjernlager
Kontakt os om leveringstid
Bedømmelse for Elation PROTEUS RAYZOR BLADE L, 12x 60W RGBW LED with Pixel Control
Produktet er endnu ikke bedømt

70.870,00DKK ved 1 stk.

Vis uden moms

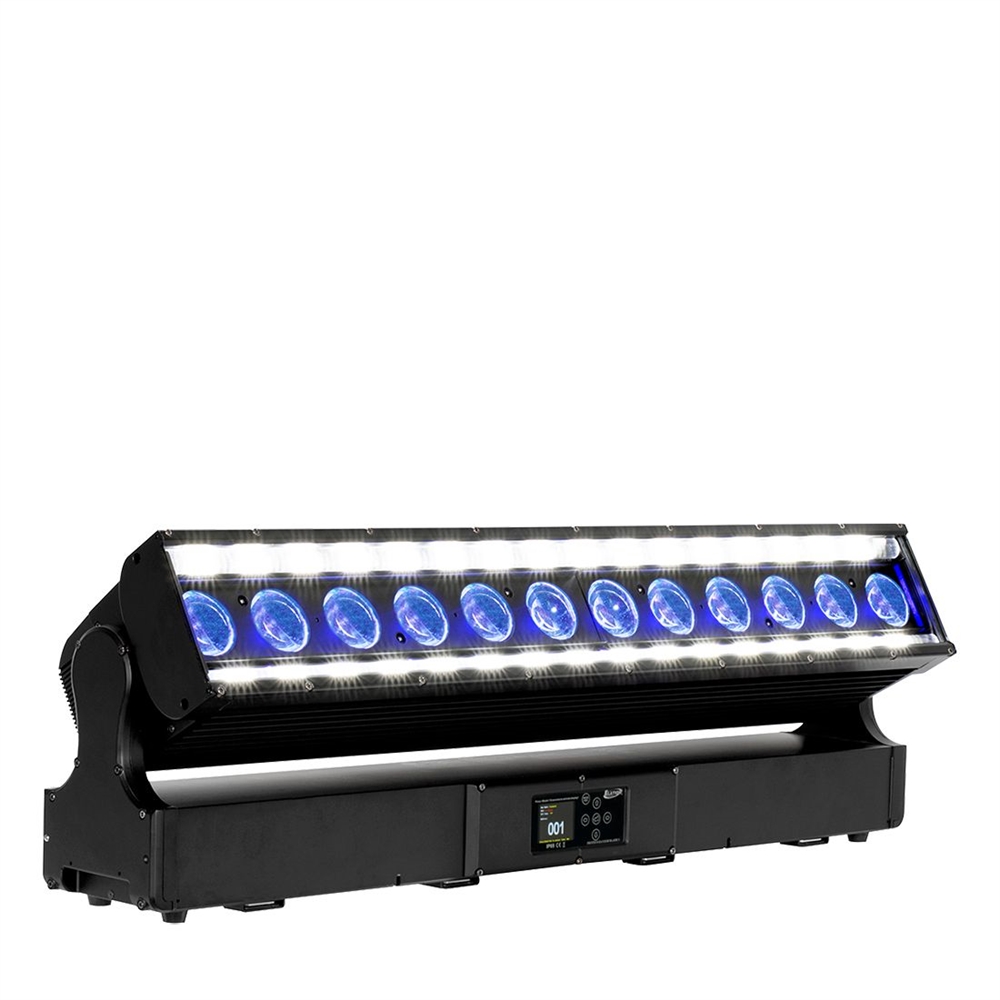

The PROTEUS RAYZOR BLADE L™ is a striking visual combination of Linear Wash, high intensity Strobe Lines and SparkLED FX inside a compact IP65 linear fixture design. Envisioned to provide the designer infinite creative control of powerful colors and high-powered strobe effects from a single unit it allows unlimited placement in any outdoor and indoor environment. Protected from dust and water ingress the Rayzor Blade L is part of Elation’s industry leading Proteus Range of outdoor luminaires.

FEATURES

IP65 Protected LED Tilt FX Fixture
12x 60W OSRAM RGBW LED with Pixel Control
48x 2W SparkLED™ Effect with Pixel Control
Dual 128x1W Strobe Pixel Line
Extreme Zoom – 6° for mid-air beam to 45° for even washes
Fast and precise 192° Tilt Rotation

SOURCE

(12) 60W Osram RGBW LEDs
(48) 2W White SparkLED™
(256) 1W Strobe LED
50,000 Hour Average LED Life*

*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

11,000 Total Lumen Output (RGBW)
CRI 80
Zoom Range 6° - 45°
Colortemperature SparkLED 4,000K
Colortemperature Strobe Line 6,500K

EFFECTS

Motorized Zoom
Linear Color Temperature Presets (2,700-8,000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect

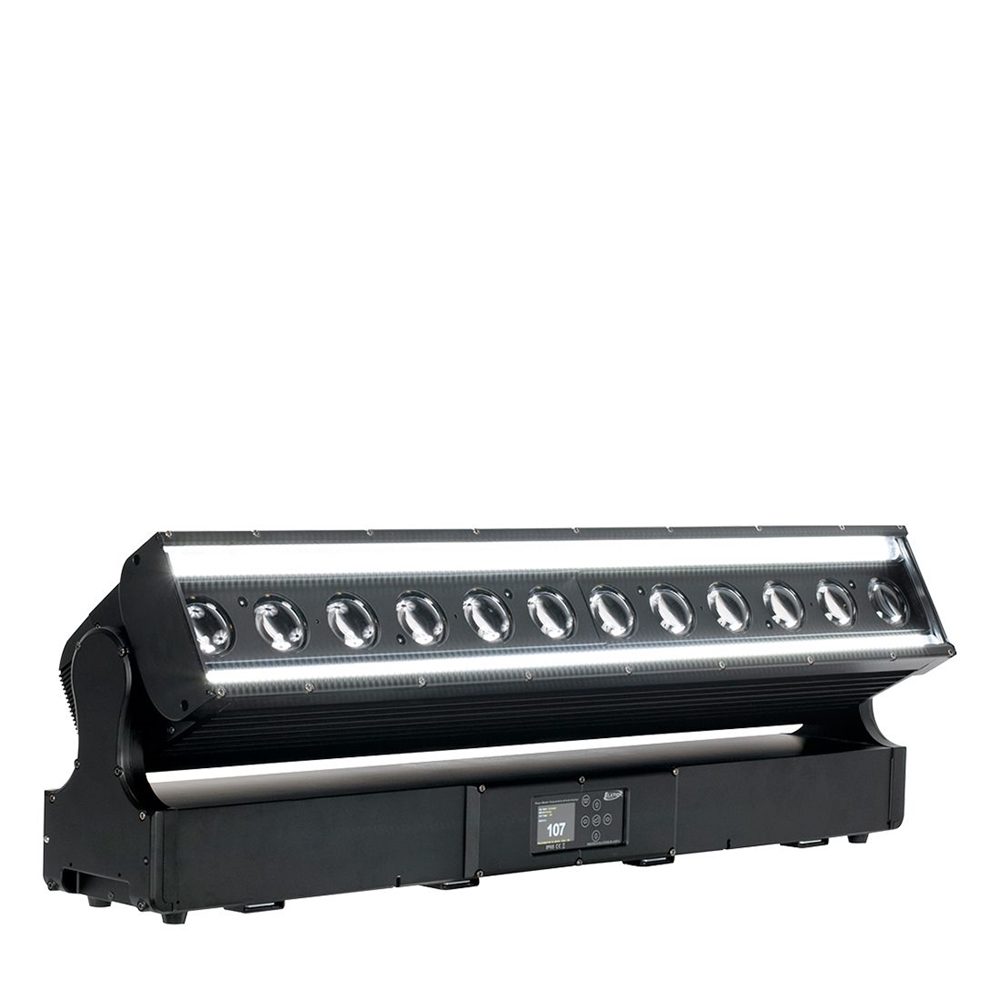

Dual White Strobe Lines (128 pixels per side)
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming

Tilt Angle: 192°

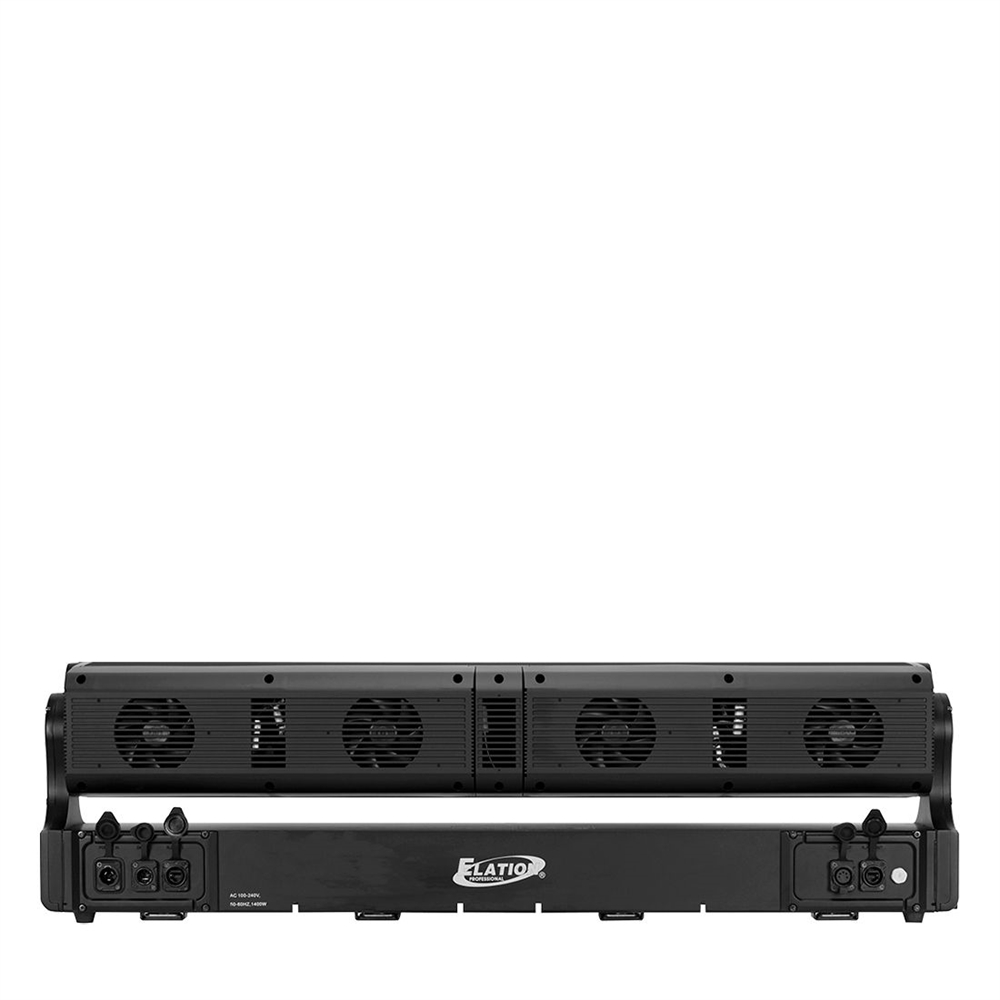

CONTROL / CONNECTIONS

4 DMX Channel Modes (28/76/140/188 channels)
Pixel controlled Wash, SparkLED and Strobe LED
DMX Adjustable Refresh Rate (900 -25000 Hz)
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
RDM Support
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
IP65 Locking Power Cable In

SIZE / WEIGHT

Length: 1004mm (39.5 in)
Width (Base): 194mm (7.6 in)
Width (Head): 155mm (6.1 in)
Height (head up): 336mm (13.2 in)
Height (head 90 degree): 288mm (11.3in)
Weight: 33 kg (72.7 lbs.)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
1400W Max Power Consumption

Dataark / Info Blad

Varenr.: M-1237000255
