Elation PROTEUS RAYZOR BLADE S, 6x 60W RGBW LED with Pixel Control

Elation PROTEUS RAYZOR BLADE S, 6x 60W RGBW LED with Pixel Control
  • Fjernlager
  • Kontakt os om leveringstid
  • Bedømmelse for Elation PROTEUS RAYZOR BLADE S, 6x 60W RGBW LED with Pixel Control
    Produktet er endnu ikke bedømt
  •
    44.870,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

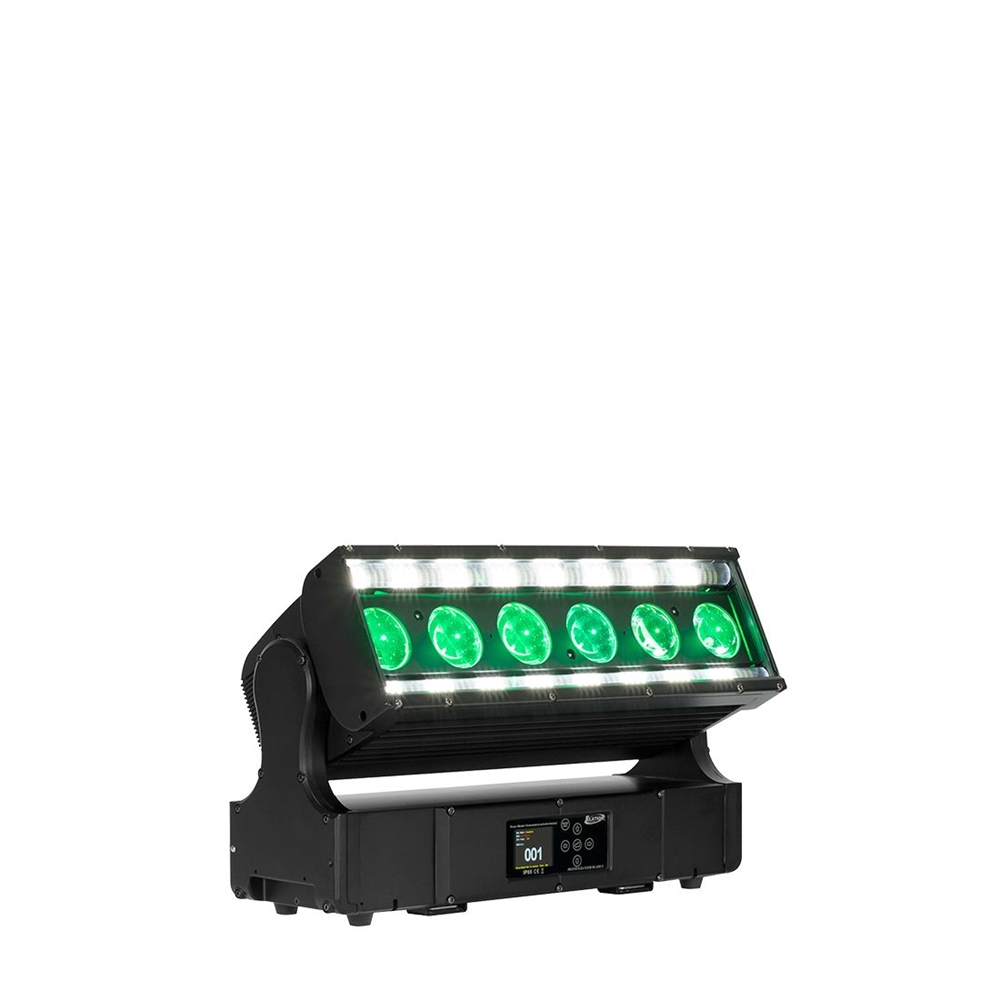

The PROTEUS RAYZOR BLADE S™ is a striking visual combination of Linear Wash, high intensity Strobe Lines and SparkLED FX inside a compact IP65 linear fixture design. Envisioned to provide the designer unlimited creative control of powerful colors and high-powered strobe effects from a single unit it allows unlimited placement in any outdoor and indoor environment. Protected from dust and water ingress the Rayzor Blade S is part of Elation’s industry leading Proteus Range of outdoor luminaires.




FEATURES

IP65 Protected LED Tilt FX Fixture
6x 60W OSRAM RGBW LED with Pixel Control
24x 2W SparkLED™ Effect with Pixel Control

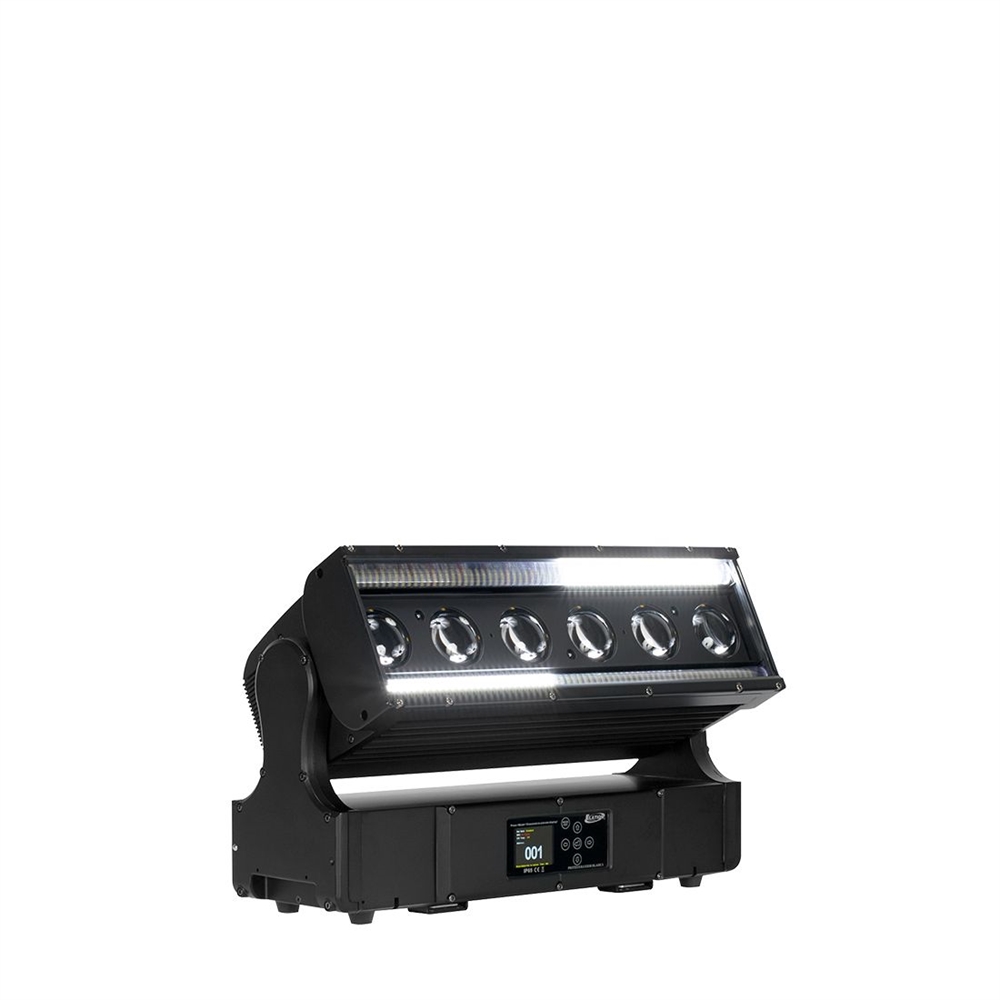

Dual 64x1W Strobe Pixel Line
Extreme Zoom – 6° for mid-air beam to 45° for even washes
Fast and precise 192° Tilt Rotation


SOURCE

(6) 60W Osram RGBW LEDs
(24) 2W White SparkLED™
(128) 1W Strobe LED
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

6,000 Total Lumen Output (RGBW)
CRI 80
Zoom Range 6° - 45°
Colortemperature SparkLED 4,000K
Colortemperature Strobe Line 6,500K


EFFECTS

Motorized Zoom
Linear Color Temperature Presets (2,700-8,000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect

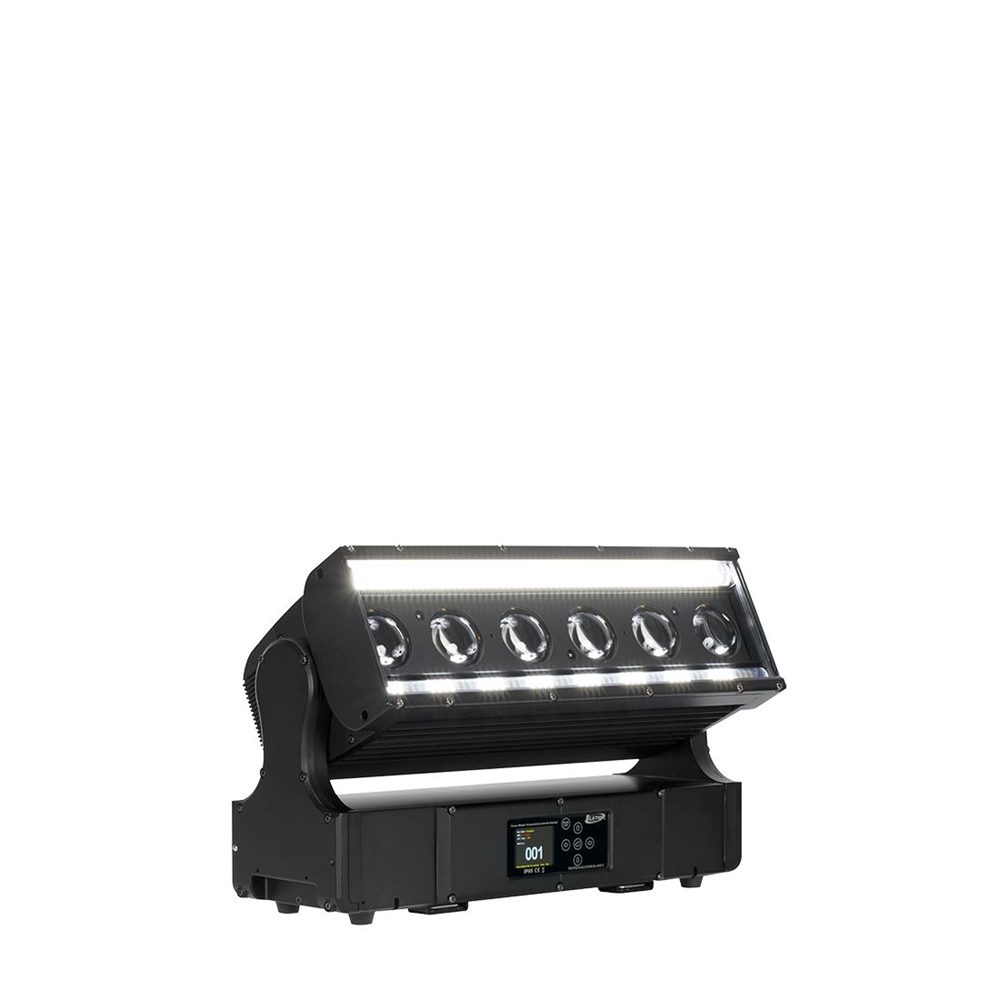

Dual White Strobe Lines (64 pixels per side)
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
Tilt Angle: 192°


CONTROL / CONNECTIONS

3 DMX Channel Modes (27/50/106 channels)
Pixel controlled Wash, SparkLED and Strobe LED
192° Tilt Movement
DMX Adjustable Refresh Rate (900 -25,000 Hz)
(6) Button Touch Panel

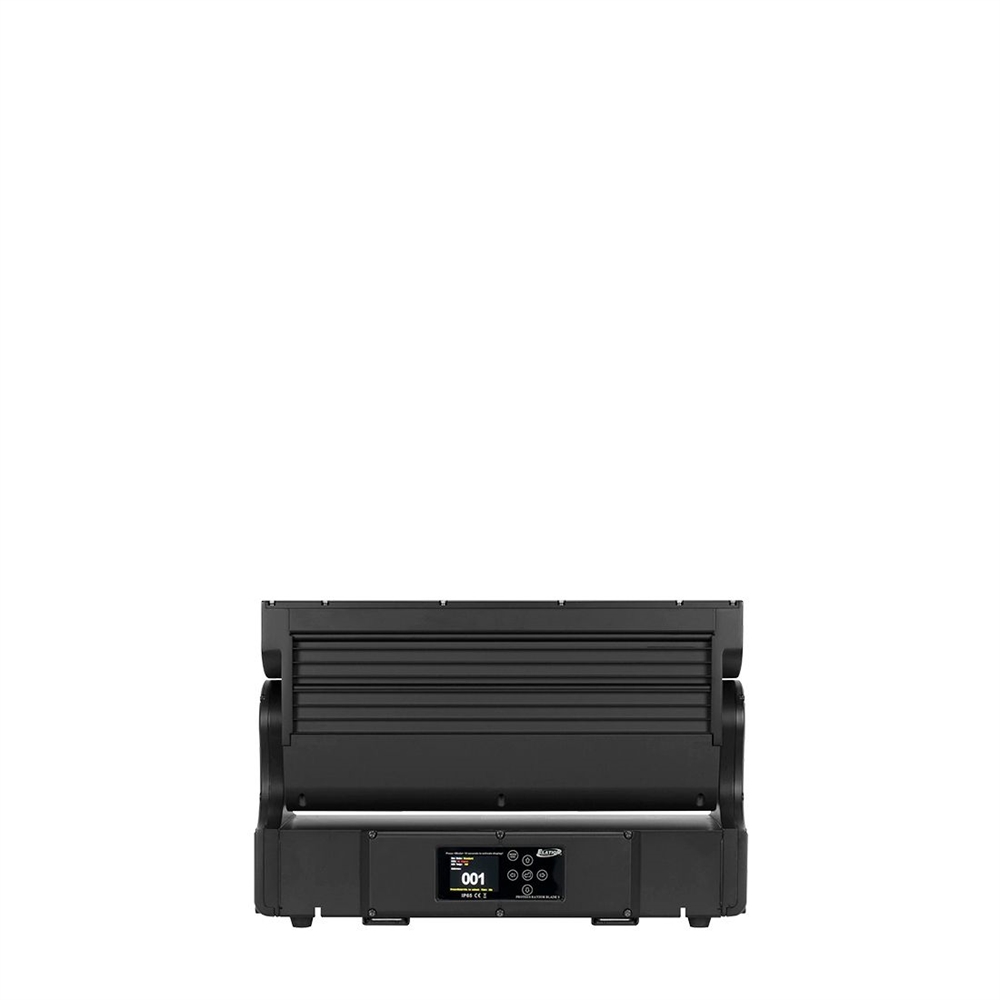

Full Color 180° Reversible LCD Menu Display
RDM Support

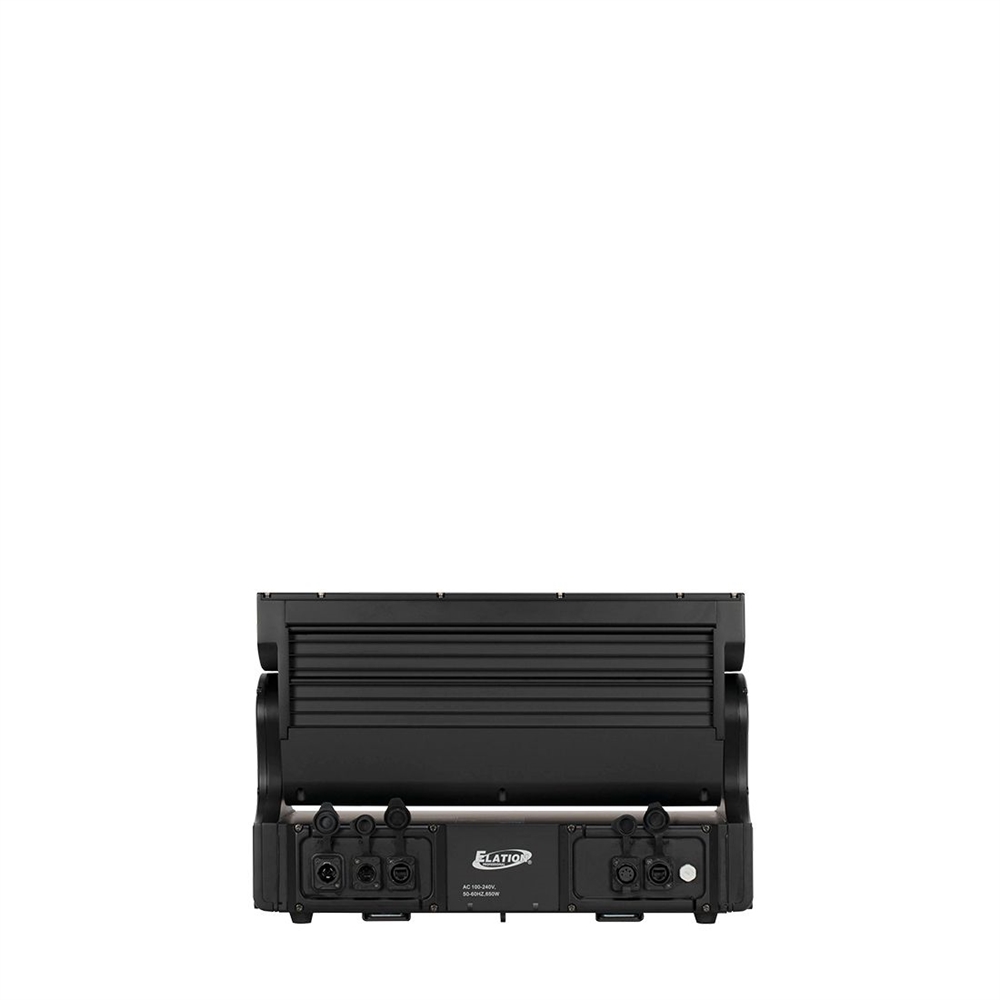

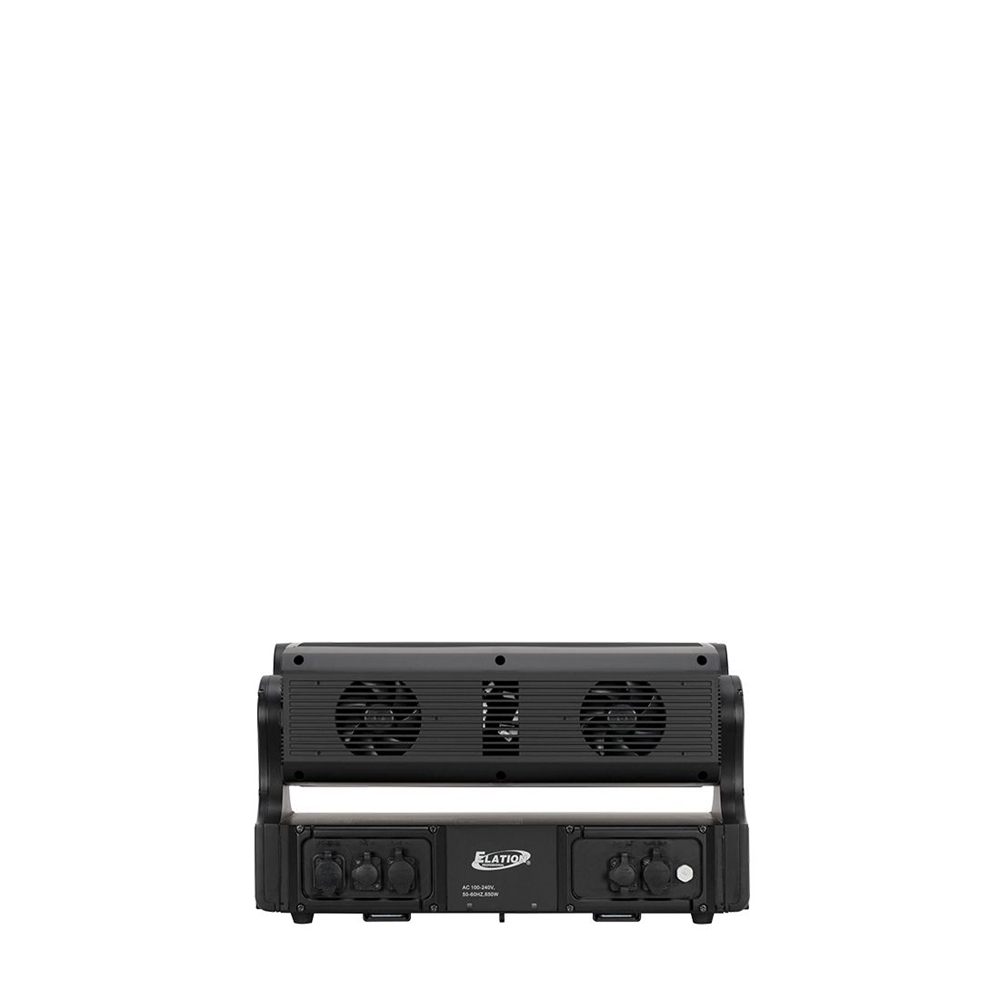

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
IP65 Locking Power Cable In


SIZE / WEIGHT

Length: 504mm (19.8 in)
Width (Base): 194mm (7.6 in)
Width (Head): 155mm (6.1 in)
Height (head up): 336mm (13.2 in)
Height (head 90 degree): 288mm (11.3in)
Weight: 17.9kg (39.4 lbs.)


ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
700W Max Power Consumption


Dataark / Info Blad
Varenr.: M-1237000253
