FEATURES
Compact Zooming Ellipsoidal
Extended Color RGBMA LED Engine, 93.5 CRI
Exceeding 10.000 lumens
Integrated Rotating Gobo Slot
Full Blackout Manual Framing System
Wide Zoom Range from 6° to 50°
7.5” Front Accessory Holder
Includes 7.5" Gel Frame
Designer Gobo set with 10 high resolution glass gobos

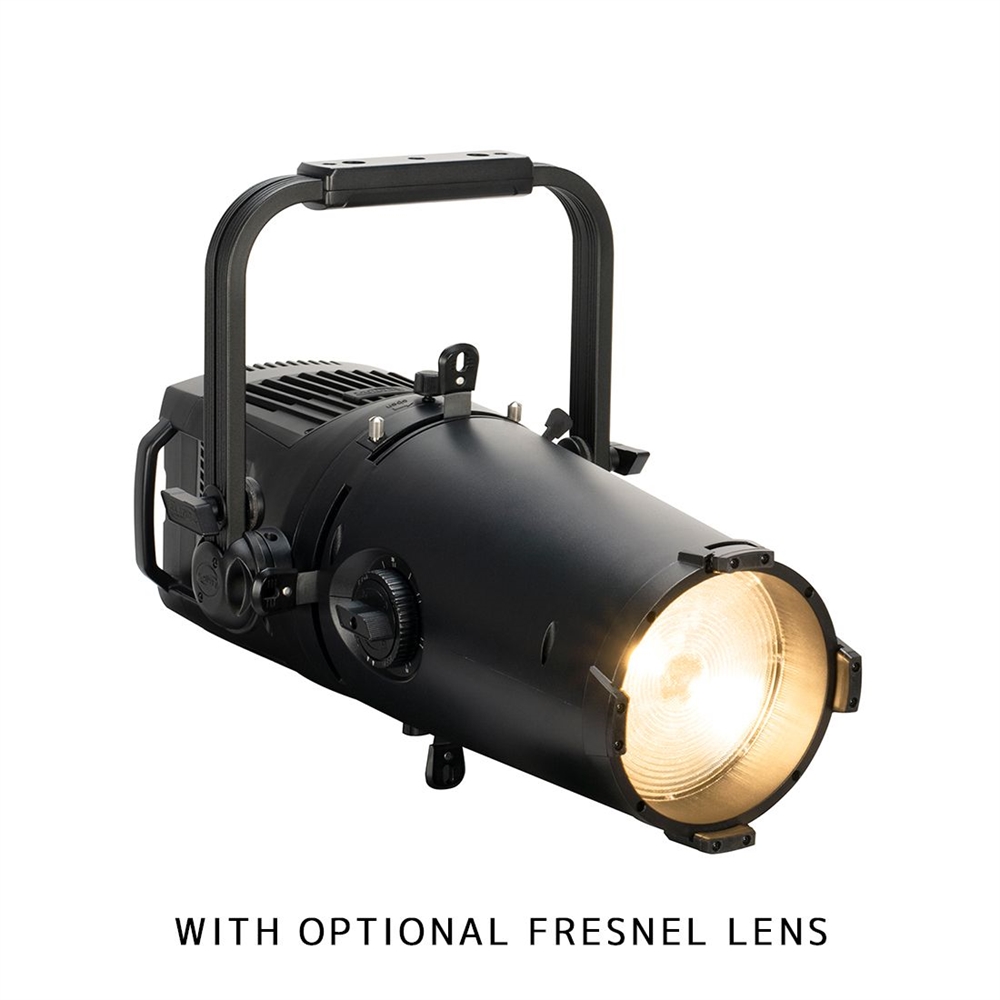

Optional Fresnel Wash Lens Conversion Kit
SOURCE
305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
10,600 Total Lumen Output
CRI 93.5
Zoom Range 6° - 50°
Beam Angle 5.9° - 45.6°
Field Angle 6.6° - 50°
EFFECTS
Manual Locking Zoom, Focus
4 Manual Rotating Full Blackout Framing Blades
Manual Barrel Rotation
Integrated Manual Iris
Variable 16-bit Dimming Curve
COLOR
RGBMA Color Array
CMY and RGB Emulation
Virtual Color Correction 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
1x 16bit Rotating / Indexing Interchangeable Glass Gobo

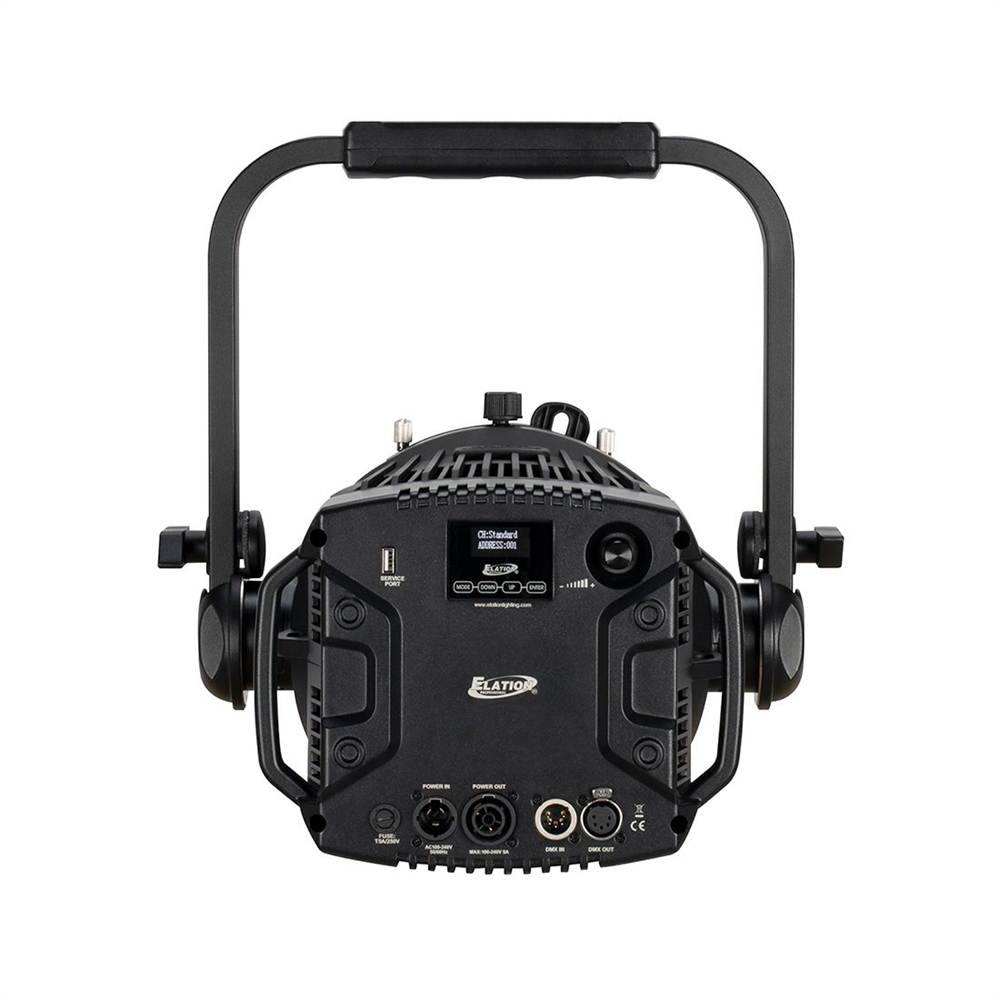

CONTROL / CONNECTIONS
8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17)
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Encoder Control for Standalone Operation
Full Color 180° Reversible LCD Menu Display
5pin DMX In/Out
IP65 Locking Power In/Out
Elation’s E-FLY™ Internal Wireless DMX Transceiv
SIZE / WEIGHT
Length: 638mm (25.11")
Width: 390mm (15.35")
Height (Fixture Body): 279mm (10.98”)
Height (Yoke 90°): 466mm (18.35”)
Weight: 15.9kg / 32.2lbs
7.5” Front Accessory Slot
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
358W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 1124.1
