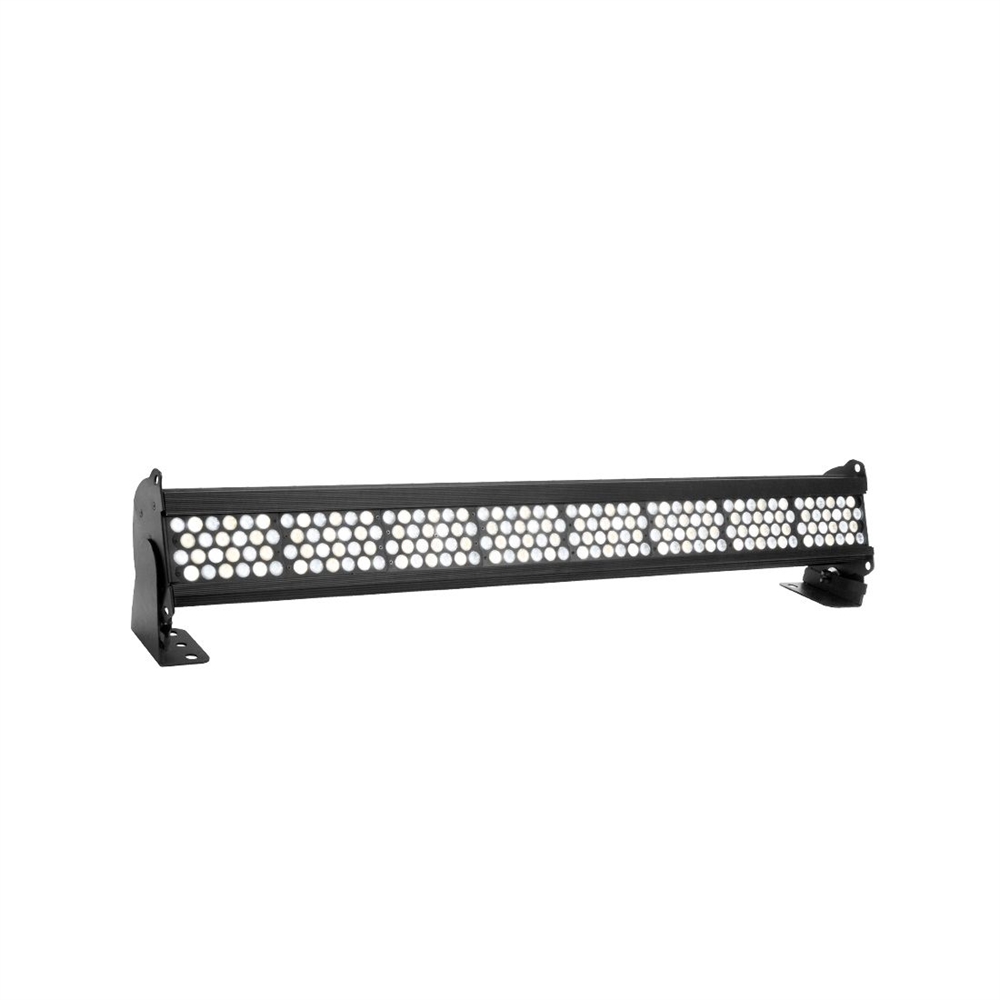

Elation DW CHORUS 48, 192x 3W Cool and Warm White LEDs

Elation DW CHORUS 48, 192x 3W Cool and Warm White LEDs
  • Fjernlager
  • Kontakt os om leveringstid
  • Bedømmelse for Elation DW CHORUS 48, 192x 3W Cool and Warm White LEDs
    Produktet er endnu ikke bedømt
  •
    17.745,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




The DW Chorus™ series is available in 1 (0.3m), 2 (0.6m), 4 (1.2m), and 6 foot (1.8m) fixture lengths, featuring long life individual Lumi™ 3W LEDs, 100,000 average hour LED life*, LED group control, variable dimming curve modes, variable white color temperature (2,700K - 6,700K), strobe and chase effects, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, locking 3pin and 5pin XLR DMX, power, and RJ45 Ethernet in/out connections, LCD menu display with 4 button control panel, integrated rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).




FEATURES

Variable Dimming Curve Modes
Variable White Color Temperature (2,700K - 6,700K)
Multiple Unit Power Linking
ArtNet™ / Klingnet™ / RDM Protocol Support
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

SOURCE

192x 3W Cool White and Warm White Lumi™ LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA


(192) Total LEDs - 96 CW + 96 WW
32,644 LUX (3,033 FC) @3.3’ (1m) (14° FULL ON)

EFFECTS

Variable White Color Temperature (2,700K - 6,700K)
Strobe and Chase Effects / Variable Dimming Curves

CONTROL / CONNECTIONS

Multiple DMX Channel Modes
4 Button Control Panel and LCD Menu Display
ArtNet™/ KlingNET™ / RDM Protocol Support

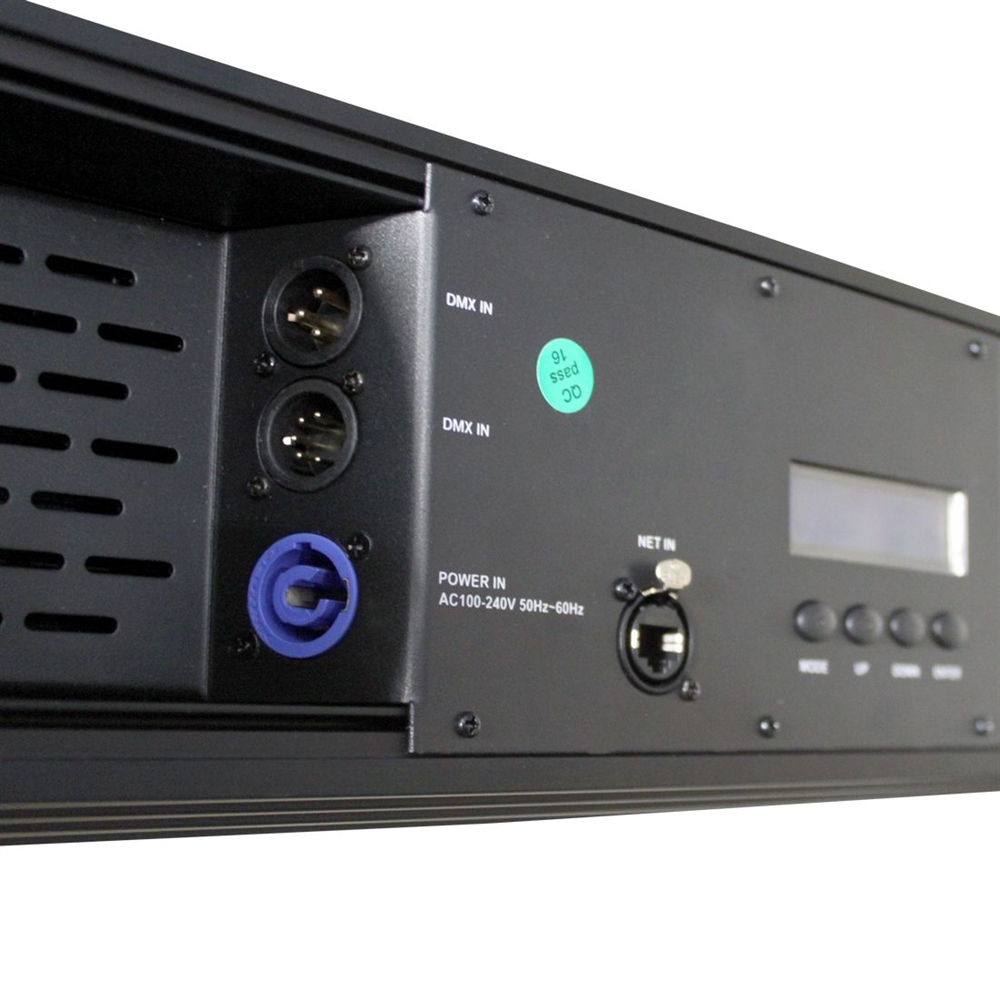

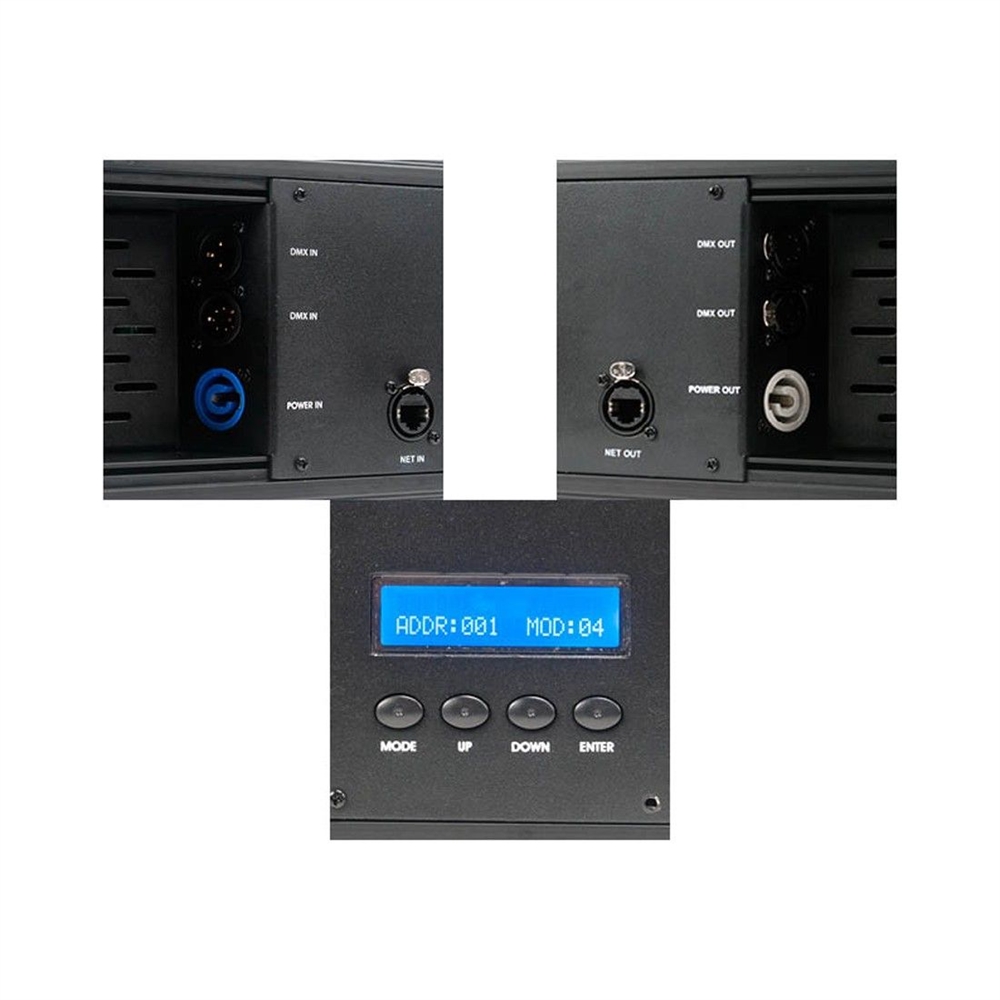

(2) locking RJ45 Ethernet Ports, 3pin and 5pin XLR DMX In/Out and power In/Out
Multiple Unit Power Linking
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 46.5” (1182mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 37.0 lbs. (16.8kg)

ELECTRICAL / THERMAL

AC 110-250V - 50/60Hz
347W Max Power Consumption
5°F to 113°F (-15°C to 45°C)


Dataark / Info Blad
Varenr.: M-1236200051
