FEATURES
High Power Long Life Warm White COB LEDs
62° Beam Angle / 100° Field Angle
Individual Control of Each COB Module
5 Variable Dimming Curve Modes
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
SOURCE

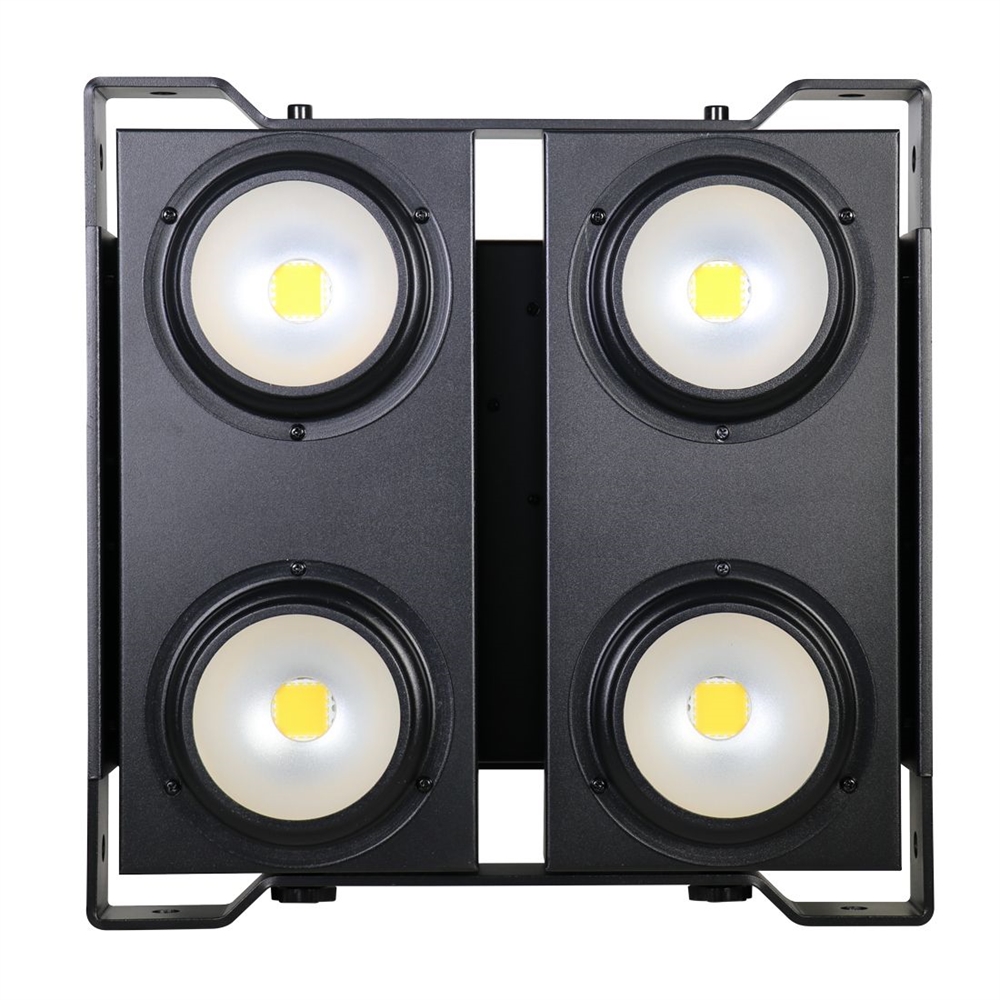

(4) 100W Warm White 3,200K COB LEDs
100,000 Hour Average Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
12,300 LUX 1,143 FC @ 1M (3.3’) / 3,200K
EFFECTS
Strobe
Dimming : 0% - 100% of Each COB Module
Variable Dimming Curves
CONTROL / CONNECTIONS
6 DMX Channel Modes (1 / 2 / 4 / 5 / 7 / 9)

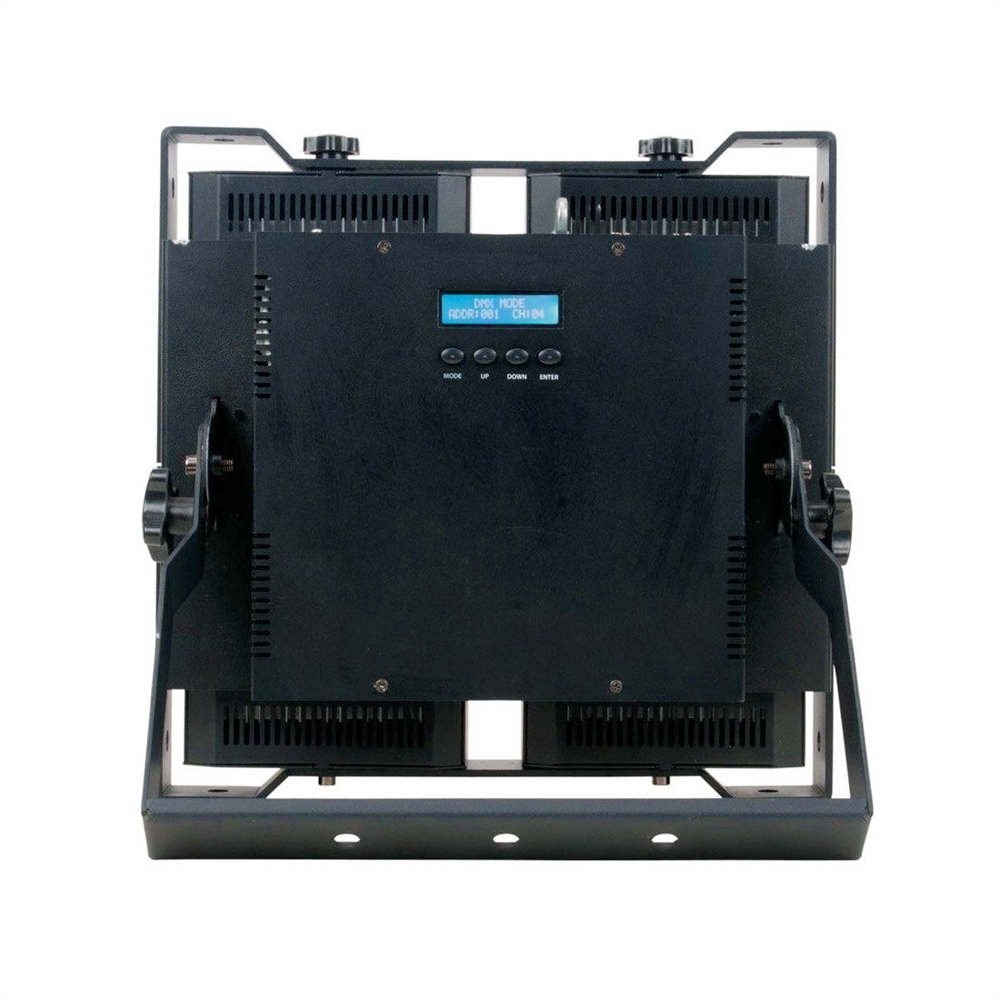

4 Button Control Panel and LCD Menu Display

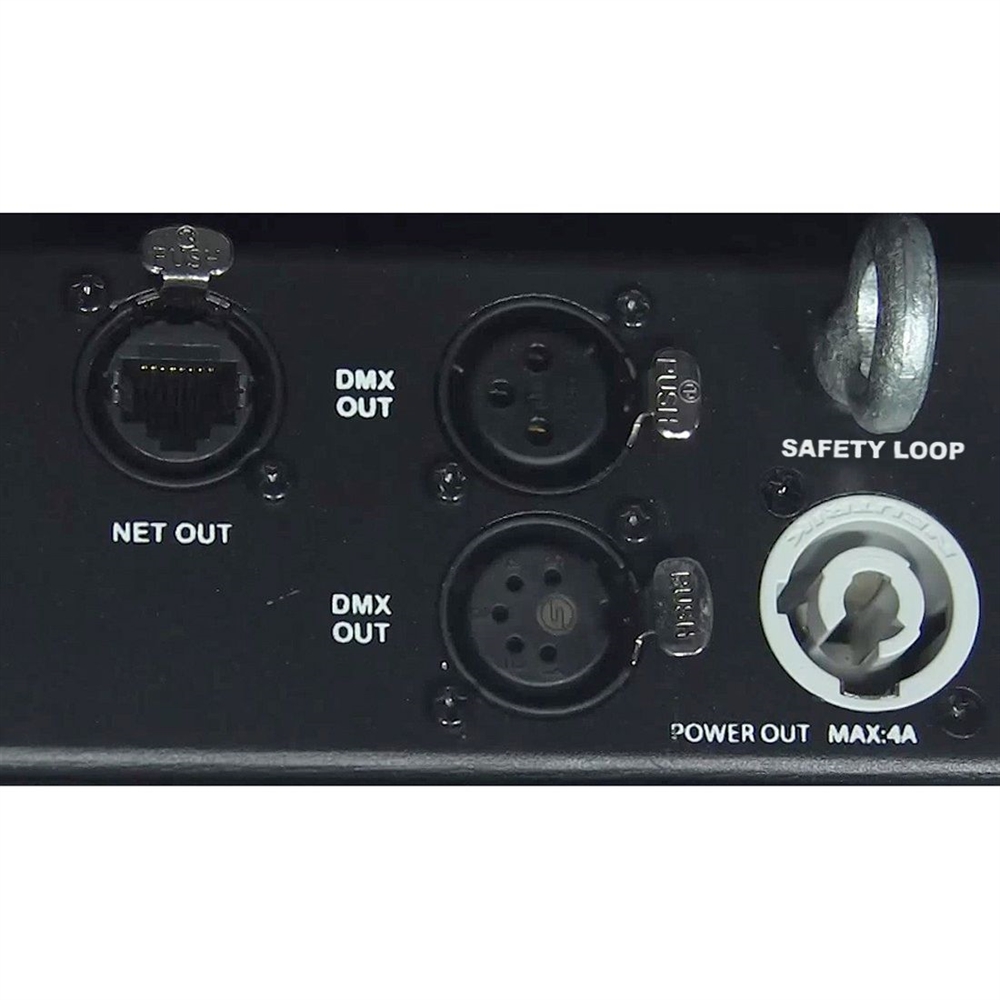

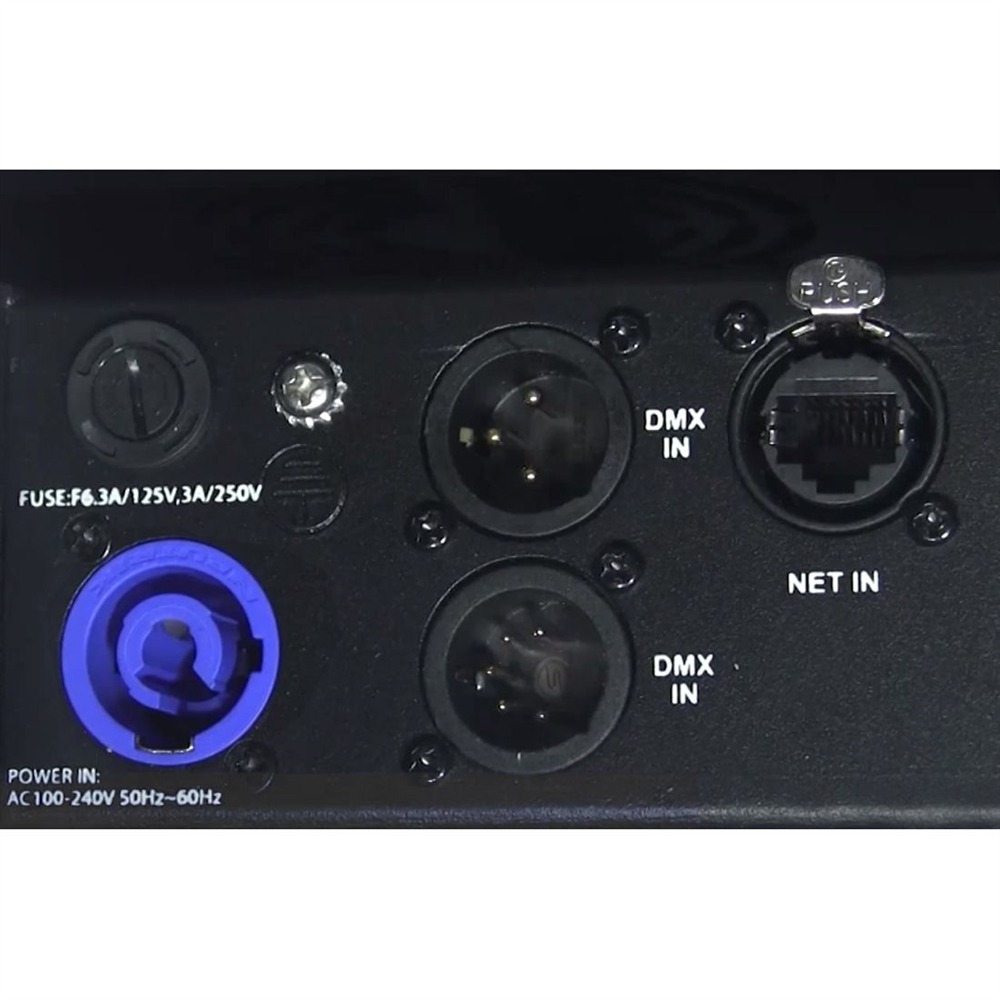

3pin and 5pin DMX In/Out
RDM* (Remote Device Management) *Software Version 1.13 or Higher
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 400mm (15.7")
Width: 174mm (6.9")
Horizontal Height: 441mm (17.4")
Weight: 9.5 kg (21.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
427W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
