| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12V DC 1000 mA |
| Power consumption: | 3,6 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels: | 1 |
| Frequency range: | 30 - 19000 Hz |
| S/N ratio: | >110 dB |
| THD: | <0,5 % at 1 kHz |
| Range: | Range up to 200m |
| Frequency band: | UHF 470 - 510 MHz |
| Diversity: | True diversity |
| Switching bandwidth: | 40 MHz |
| Frequency stability: | ± 0,001 % |
| Parallel mode: | Max. 28 transmitter |
| Frequency selection: | Frequencies automatically scannable |
| Housing color: | Black |

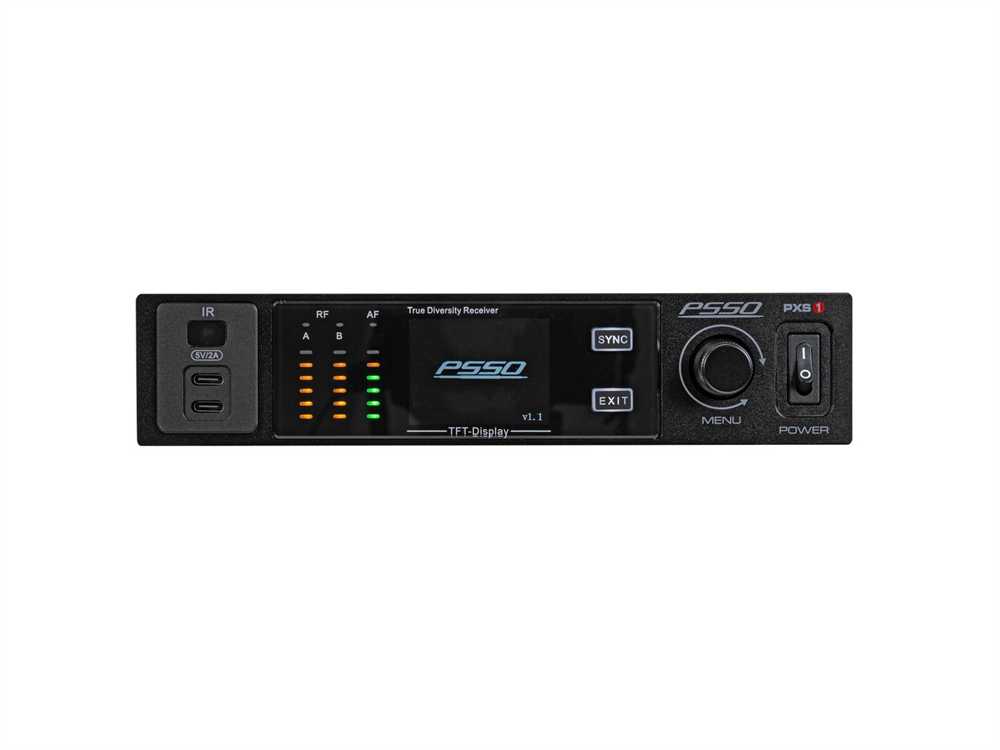

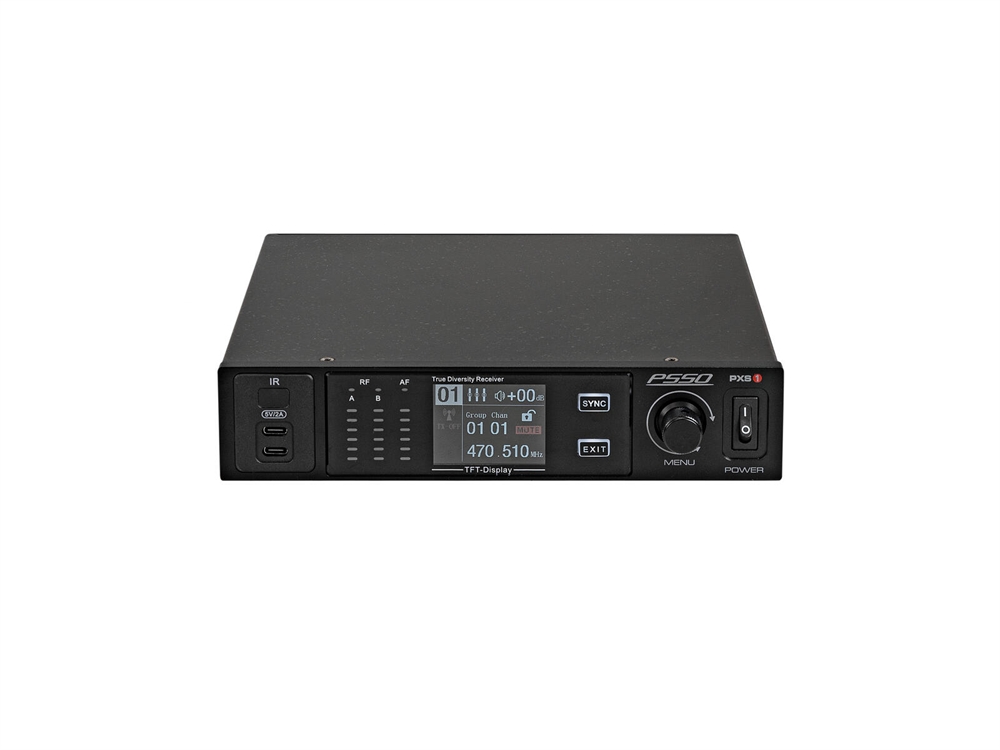

| Display type: | Multicolor TFT display |
| Display: | Frequency , goup , channel , charge status indicator; RF signal level , AF audio level , antenna A/B , Mute |
| Control elements: | Power switch, encoder, exit, sync button |
| Status LED: | Power |

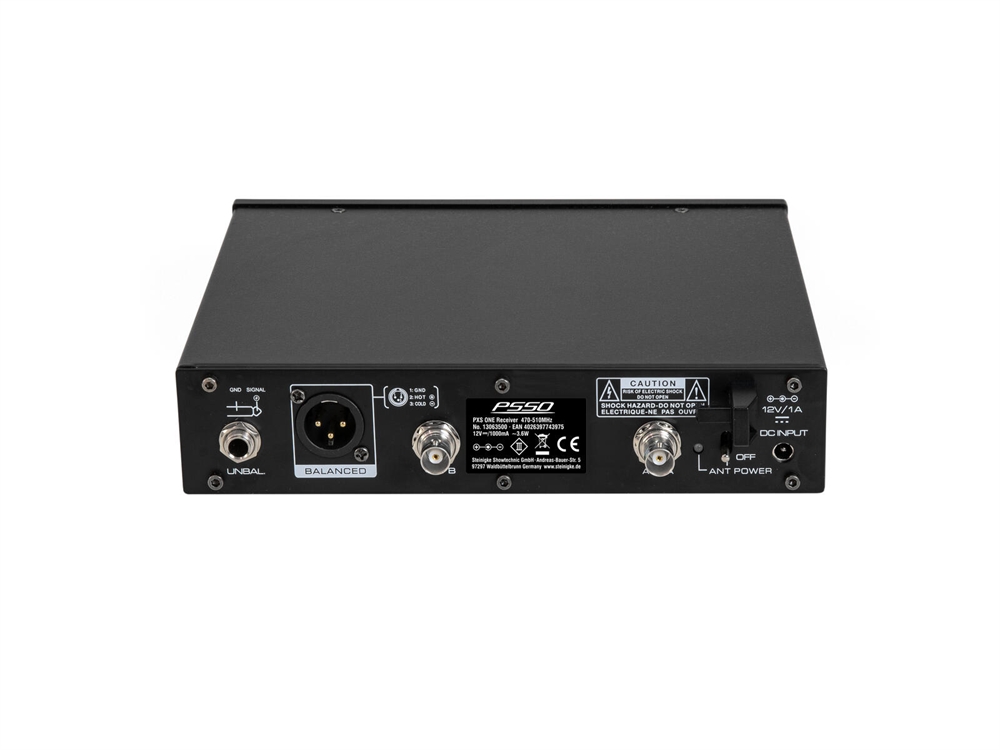

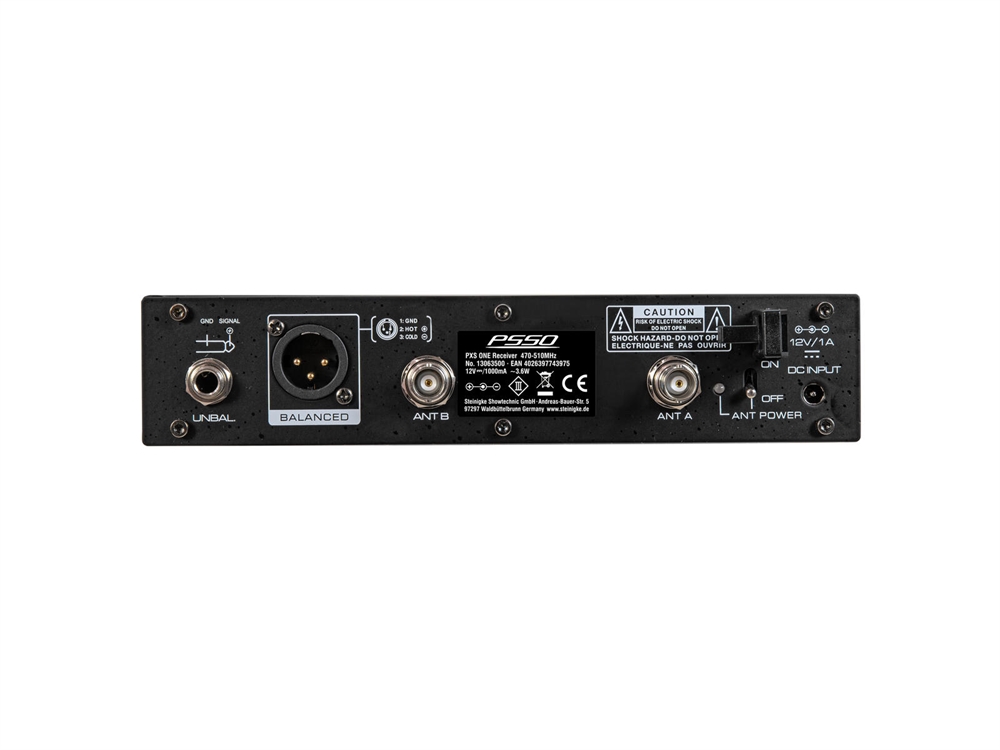

| Connections: | Input: antenna via 2 x BNC (F) 11,54 V
Output: microphone via 1 x 6.3 mm plug (unbal.)
Output: microphone via 1 x 3-pin XLR (M) mounting version |
| Equalizer: | 3-band tone control |
| USB port: | 2 x type C |
| Material: | Metal |
| Mounting dimensions: | 23,5 cm x |
| Housing design: | Desktop console housing
(19") 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 21,2 cm
Depth: 25 cm
Height: 4,53 cm |
| Weight: | 1,74 kg |
| Jack cable |
| Dimensions: | Length: 100 cm |
| BNC cable |
| Dimensions: | Length: 53 cm |
