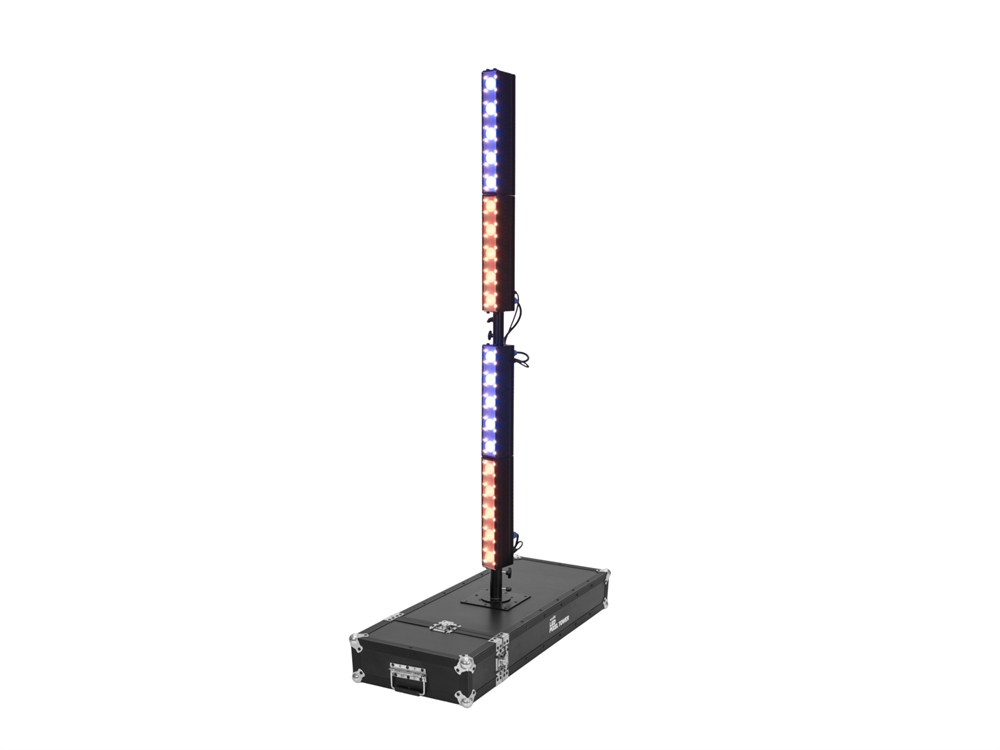

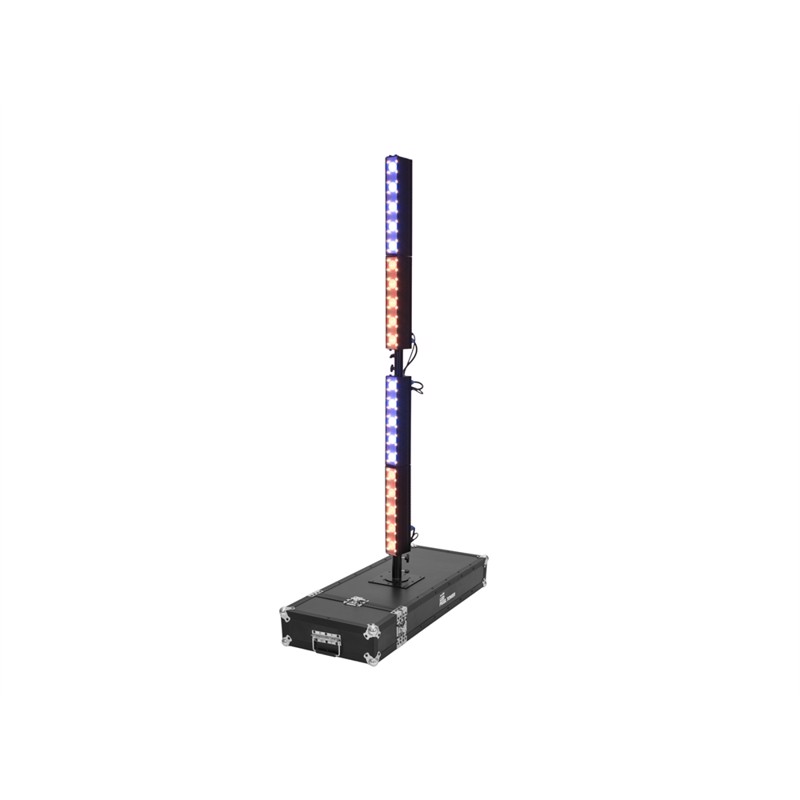

Eurolite LED Pixel Tower

Multifunctional vertical light effect with mounting option on the supplied case

• Two LED bars with a total of 20 x 15 W RGBW LED (4in1) and 80 x SMD LED in warm white
• Comprehensive range of accessories for versatile applications included in the delivery
• Mounting options: singly or combined standing on the supplied case, hanging via mounting adapters, standing or hanging via mounting brackets or via TV spigots
• TV spigot for installation on stands with 28 mm inner diameter
• Comes with a professional flight case with transport wheels ideally suited for mobile use and safe storage
• Each RGBW LED can be controlled individually and, like the warm white LEDs, in four groups
• Flicker-free projection
• Every LED bar can be manually rotated centrally at the joint
• Narrow beam angle, adjustable to a homogeneous and soft light by the removable milky diffuser plates (frost filter)
• Auto, music and DMX mode
• Sound-control via built-in microphone with adjustable microphone sensitivity
• 5, 12, 20, 27 or 84 DMX channels selectable
• Functions: stepless RGBW color mixture, preset colors, internal programs, dimmer and strobe effect
• 96 professionally designed integrated show programs in auto and music mode
• Convenient wireless control via included IR remote control EUROLITE IR-34
• Connection between the two LED bars can be extended spatially at will via P-Con and 3-pin XLR cables
• Addressing and setting via control board with LCD
• Supports QuickDMX - the wireless DMX system from Eurolite
• Built-in phantom-powered USB port for QuickDMX receivers (accessories)
• DMX512 control possible via any commercial DMX controller
• Power connection via P-Con jack and included power cable with safety plug
• LED: 80 x SMD 0,3 W WW (homogenous color mix)
• LED: 20 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
• Control: IR remote control; Sound to light viaMicrophone; QuickDMX viaUSB possible; DMX

Remote control

• Battery: Button cell 3.0 V CR2025 lithium manganese (provided)
