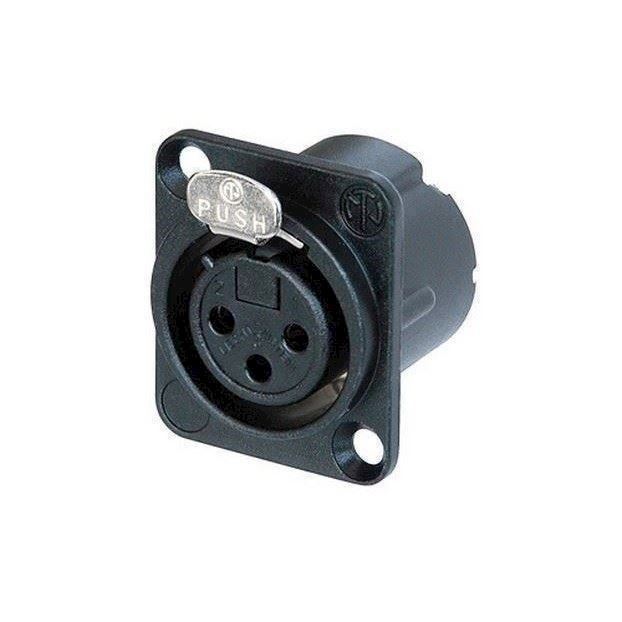

3 pole female receptacle, solder cups, Nickel housing, silver contacts the DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with N
Teknisk specifikationer Capacitance
between contacts≤ 4 pF Contact resistance≤ 5 mΩ (inner) Dielectric
strength1,5 kVdc Insulation resistance> 2 GΩ (initial) Rated current
per contact16 A Rated voltage50 V Insertion force≤ 20 N Withdrawal
force≤ 20 N Lifetime> 1000 mating cyclesWiresizemax. 2.5 mm²Wiresizemax.
14 AWG Wiring Solder contacts Locking device Latch lock Mounting
direction front & rear Chassis shape D Contact plating2 µm Ag over 2 µm
Ni Contacts Bronze (CuSn6) Insert Polyamide (PA 6.6 30 % GR) Locking
element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating
Nickel FlammabilityUL 94 HB Standard complianceIEC
61076-2-103 Protection classIP 40 Solderability Complies with IEC
68-2-20 Temperature range-30 °C to +80 °C
