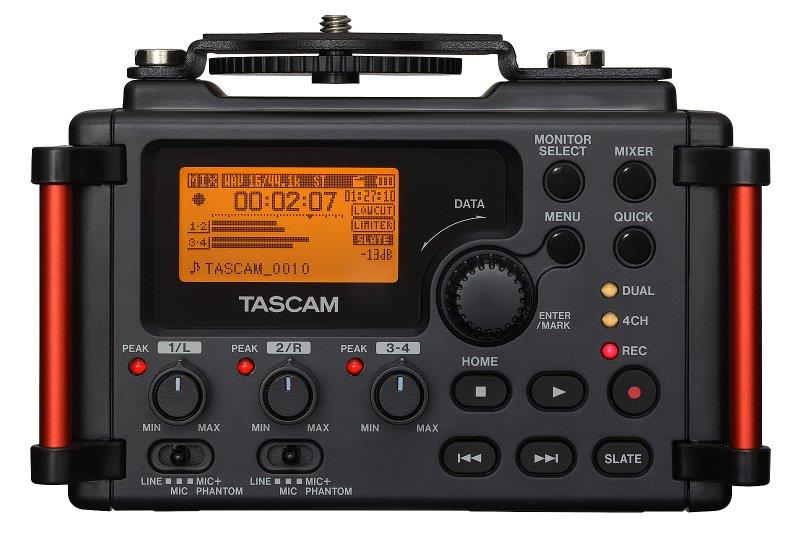

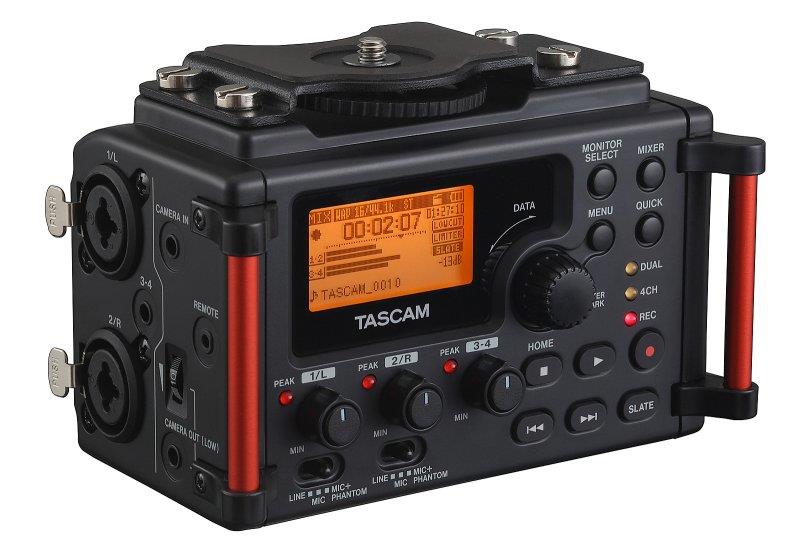

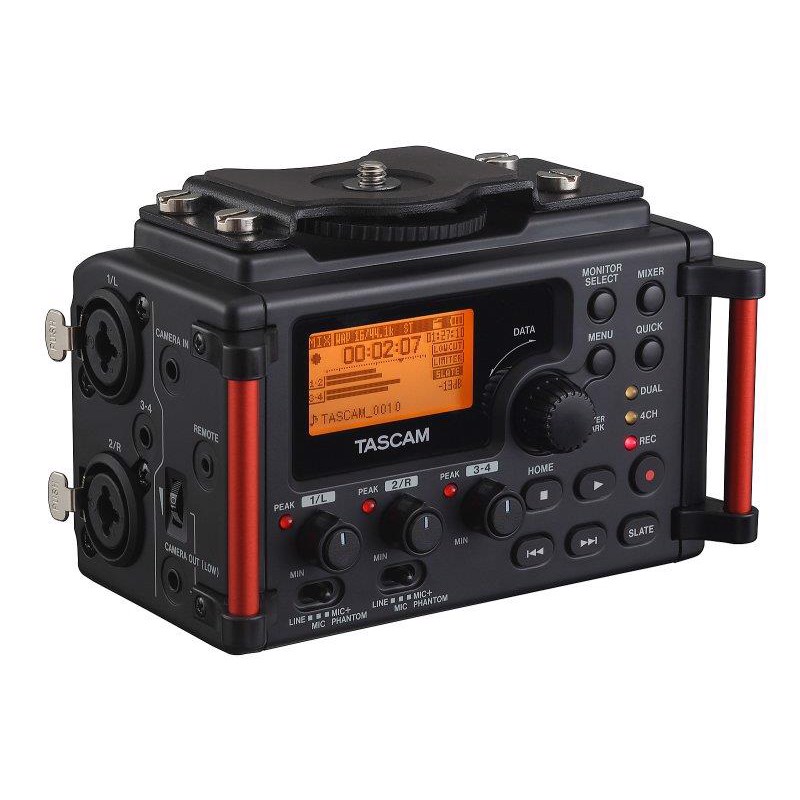

Tascam DR-60Dmk2 Audio recorder til DSLR
DR-60DMK2 er en kompakt, 4-spors lydoptager til brug med en digital single-lens reflex (DSLR), eller et digital single-lens mirrorless (DSLM) kamera som en del af et videosystem. Den kan monteres direkte på et kamera og tilbyder et væld af lyd-inputs og outputs som tillader optagelse af højopløst lydmateriale parallelt med, men separat fra kameraet og dets video-data. Enheden tilbyder Tascam original HDDA mikrofon-preamps som er kendt for deres høje S/N-ratio, lave input-støj og lave forvrængning. Optagelser kan laves ved 44.1/48/96 kHz, 16/24-bit i WAV eller BWF-format. DR-60DMK2 kan optage fra fire kanaler samtidigt som kan mixes ned til et stereo-signal. Optagelses-niveauerne kan justeres uafhængigt til inputs 1, 2 og 3-4 og Dual Recording-funktionen lader to filer blive optaget parallelt på forskellige niveauer.
Recording media: SD card (64 MB – 2 GB), SDHC card (4–32 GB)
Audio file compatibility: WAV: 44.1/48/96 kHz, 16/24-bit, BWF (Broadcast Wave Format): 44.1/48/96kHz, 16/24-bit
Number of channels: 4 channels (stereo x 2)

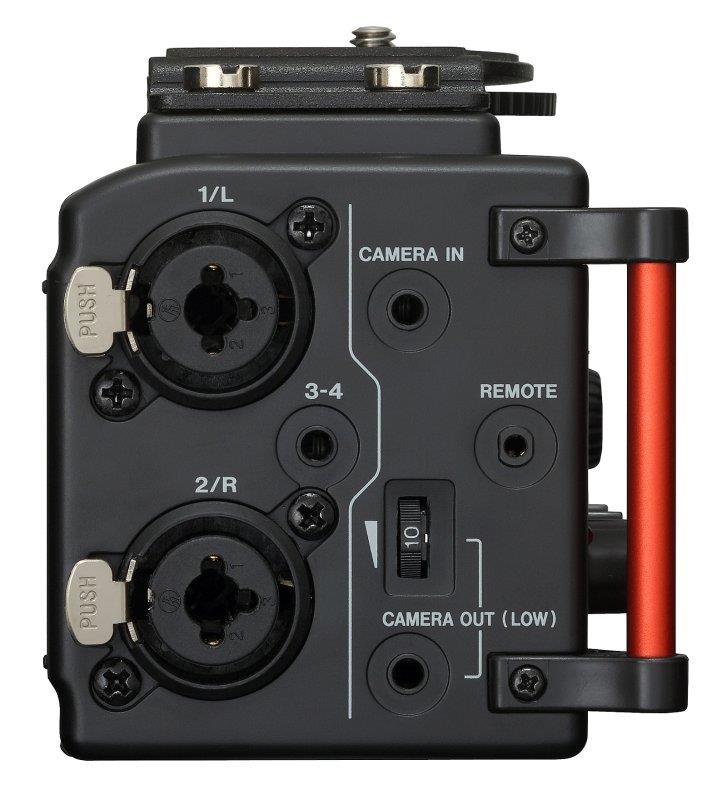

Mic/Line input 1/L, 2/R (switchable phantom power): XLR-3-31, 6.3-mm standard TRS Jack
Input switch set to MIC or MIC+PHANTOM
Input impedance: 2 kΩ
Phantom Power: 48 V ±4 V (10 mA/channel) or
24 V ±4 V (10 mA/channel)
Maximum input level: 0 dBu
Minimum input level: -72 dBu
Mic input gain (input level knob at maximum): LOW: +11 dB, MID: +36 dB, HIGH: +52 dB, HIGH+PLUS: +64 dB
Input switch set to LINE
Input impedance: 10 kΩ or higher
Nominal input level: +4 dBu
Maximum input level: +24 dBu
Mic/Line input 3-4 (supports plug-in power): 3.5-mm stereo mini jack
Input impedance: 10 kΩ
Maximum input level: +10 dBV
Minimum input level: -50 dBV
Mic input gain (input level knob at maximum): LOW: +3 dB, HIGH: +26 dB, HIGH+PLUS: +38 dB
CAMERA IN jack: 3.5-mm stereo mini jack
Input impedance: 10 kΩ
Nominal input level: -10 dBV
Maximum input level: +6 dBV
CAMERA OUT (LOW) jack: 3.5-mm stereo mini jack
Output impedance: 200 Ω
Nominal output level: -50 dBV
Maximum output level: -30 dBV

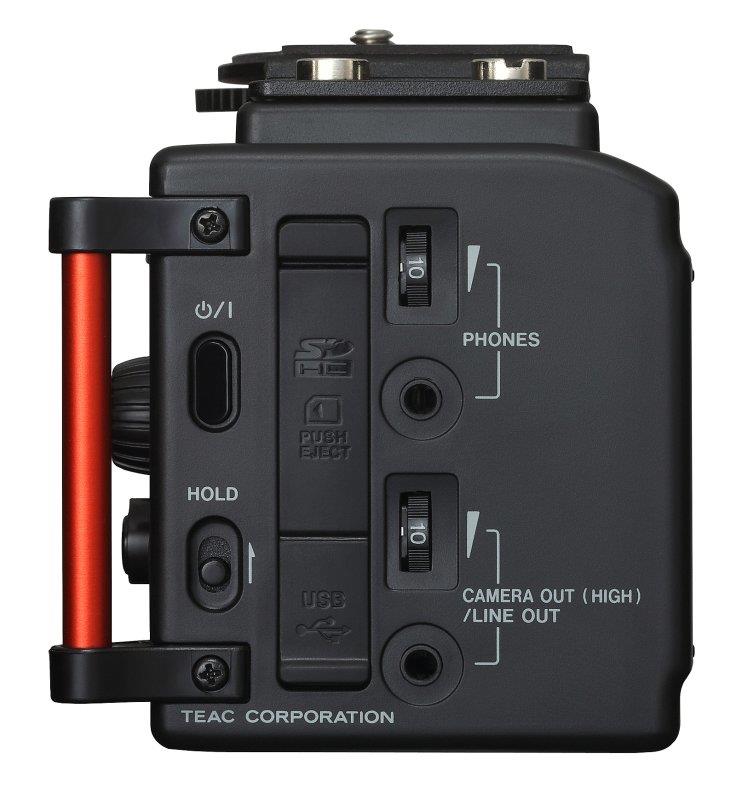

Headphones output: 3.5-mm stereo mini jack
Maximum output power: 50 mW + 50 mW
CAMERA OUT (HIGH)/LINE OUT jack: 3.5-mm stereo mini jack
Output impedance: 200 Ω
Nominal output level: -10 dBV
Maximum output level: +10 dBV
USB: USB Mini-B Type
Format: USB 2.0 HIGH SPEED mass storage class
REMOTE jack: 2.5-mm TRS jack
Frequency response: 20 Hz – 20 kHz, +0.5/–2 dB (LINE IN or MIC IN to LINE OUT, Fs 44.1/48 kHz, JEITA), 20 Hz – 40 kHz, +0.5/–3 dB (LINE IN or MIC IN to LINE OUT, Fs 96 kHz, JEITA)
Distortion: 0.02% or less (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
S/N ratio: 92 dB or more (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
Equivalent input noise: -120 dBu or less
Note for JEITA: Conforming to JEITA CP-2150
Windows: Pentium 300 MHz or faster, 128 MB or more memory
Mac: Power PC, iMac, G3, G4 266 MHz or faster, 64 MB or more memory
Recommended USB port: USB 2.0
Recommended USB host controller: Intel chipset
Supported operating systems: Windows XP, Windows Vista, Windows 7, Windows 8 (including Windows 8.1), Mac OS X 10.2 or later
Power supply: Four AA batteries (Alkaline or Ni-MH), USB bus power supplied from a computer, AC adaptor (TASCAM PS-P515U, sold separately), External battery pack (TASCAM BP-6AA, sold separately)
Power consumption: 5.4 W (maximum)
Dimensions (W x H x D): 133 x 93 x 78 mm (with the top adapter attached)
Weight: 510 g (without batteries)
Operating temperature range: 0–40 °C
