PowerCon t/230V - NAC3MPX-TOPSB

PowerCon t/230V - NAC3MPX-TOPSB
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for PowerCon t/230V - NAC3MPX-TOPSB
    Produktet er endnu ikke bedømt
  •
    49,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




NEUTRIK POWERCON True1 TOP Connectors
  • Complies with safety requirements of IEC 60320, VDE-certified
  • For mains connection up to ∿ 250 V/16 A
  • Connections for ground, phase and neutral conductor, connector can be connected under load
  • Robust version with latching device and cable inlet with self-adjusting clamps (plug and inline jack only)
  • Self-extinguishing according to UL 94V-0
  • Protection classs IP65 (NAC3FX-W-TOP and NAC3MX-W-TOP)

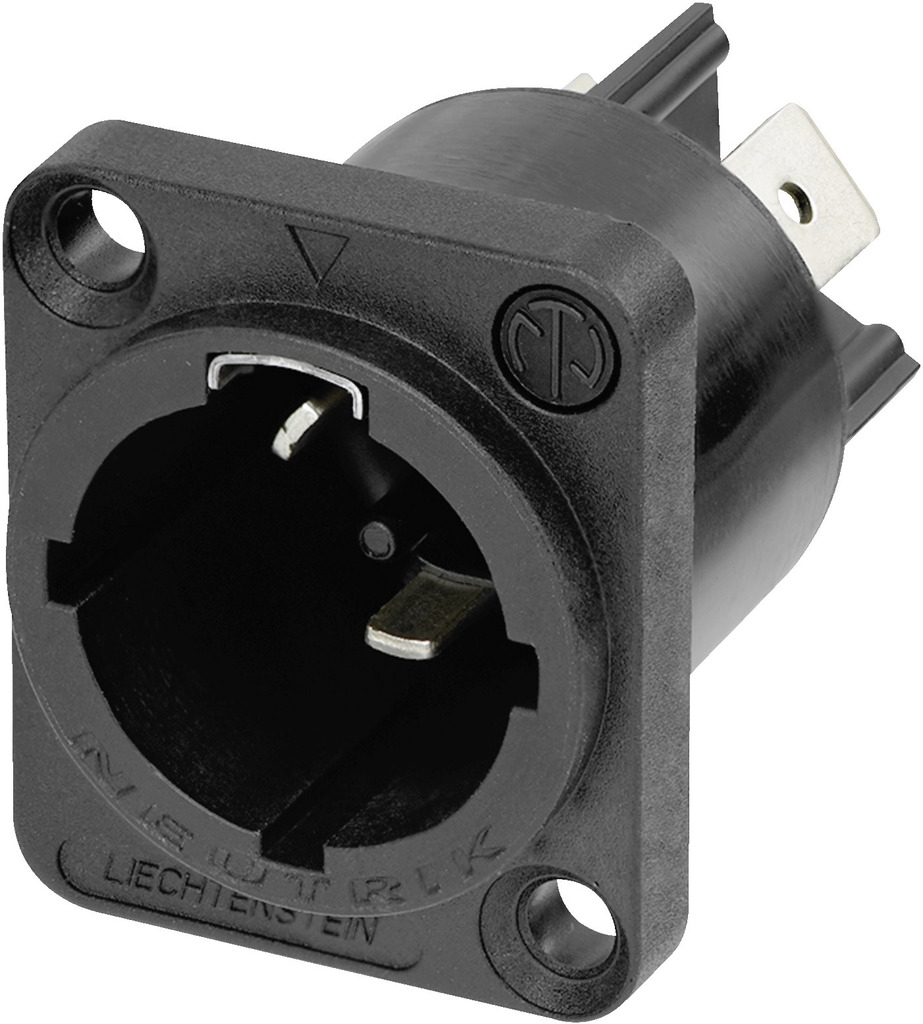

NEUTRIK POWERCON True1 TOP panel plug
  • Complies with safety requirements of IEC 60320, VDE-certified
  • For mains connection up to ∿ 250 V/16 A
  • Connections for ground, phase and neutral conductor, connector can be connected under load
  • Self-extinguishing according to UL 94V-0



Descriptionpanel plug
TypeNEUTRIK POWERCON TOP
Quantity1
Featureslatching device
Colour/colour codingblack
Power rating∿ 250 V/16 A
Insulating resistance> 100 MΩ
Dielectric strengthDC 4 kV/∿ 2.8 kV
CertificationUL, VDE
Pole number-
Cable inlet-
Suitable cable cross section-
Connectionblade terminals, 6.35 mm
Strain relief-
Cable bending protection-
Stereo-
Mono-
Switches-
Materialplastic
Central fixing-
Contact type-
No. of contacts2
Contact width-
Contact distance-
Admiss. ambient temp.-30-+80 °C
Dimensions26 x 31 x 38.2 mm
Diameter-
Length-
Weight11 g
Other features-
Varenr.: 034165
