| Impedance (Z) |
8 Ω
|
| Transmission technology |
cable
|

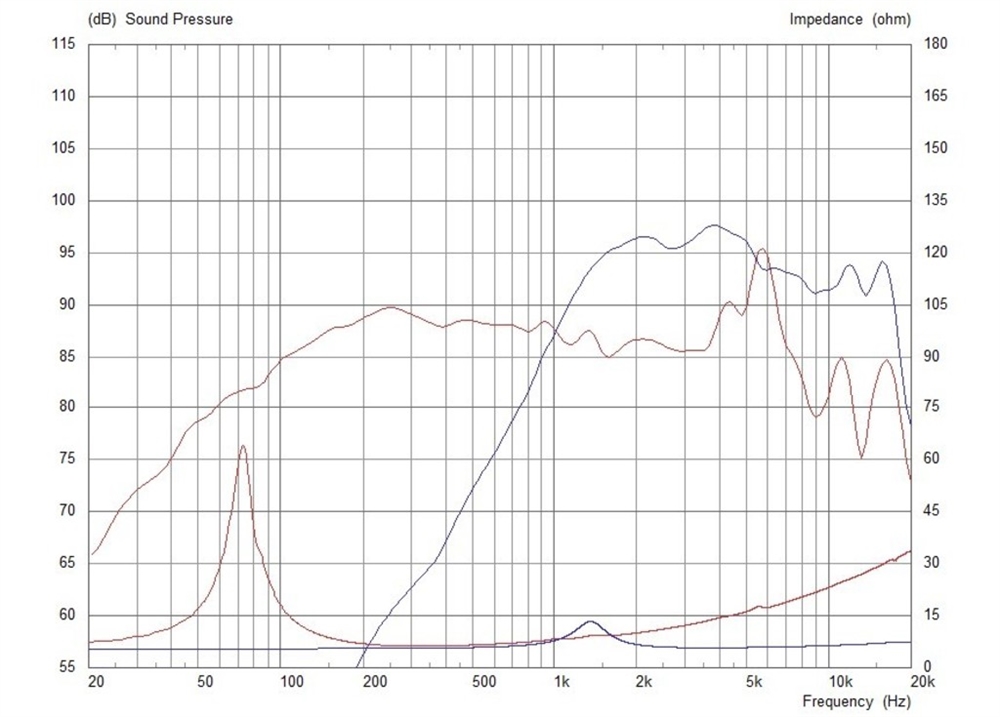

| Frequency range |
80-4,000 Hz (bass) 1,400-20,000 Hz (tweeter)
|
| Resonant frequency (fs) |
74 Hz
|
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) |
2,200 Hz
|
| Power rating (RMS) |
150 W (bass) / 10 W (tweeter)
|
| Peak music power output (MAX) |
300 W (bass) / 20 W (tweeter)
|
| SPL |
89 dB (bass) / 96 dB (tweeter)
|
| Suspension compl. (Cms) |
0.509 mm/N
|
| Moving mass (Mms) |
9.073 g
|
| Mech. Q factor (Qms) |
8.293
|
| Electr. Q factor (Qes) |
0.503
|
| Total Q factor (Qts) |
0.747
|
| Equivalent volume (Vas) |
6.5 l
|
| DC resistance (Re) |
5.77 Ω
|
| Force factor (BxL) |
6.96 Tm
|
| Voice coil induct. (Le) |
0.363 mH
|
| Voice coil diameter |
Ø 38 mm (bass) / Ø 25 mm (tweeter)
|
| Voice coil winding height |
10.5 mm
|
| Voice coil material |
copper wire
|
| Voice coil former |
polyimide
|
| Linear excursion (XMAX) |
3.75 mm
|
| Eff. cone area (Sd) |
95 cm2
|
| Magnet weight |
0.65 kg
|
| Mounting cutout |
Ø 116 mm
|
| Mounting depth |
72 mm
|
| Mounting hole diameter |
Ø 140 mm
|
| Dimensions |
136 x 151 x 72 mm
|
| Width |
136 mm
|
| Height |
151 mm
|
| Depth |
72 mm
|
| Colour |
black
|
| Admiss. ambient temp. |
0-40 °C
|
| Weight |
1.54 kg
|
| Packing unit |
1
|
| Type of speaker |
5"
|
| Packaging dimensions (W x H x L) |
0.185 x 0.102 x 0.185 m
|
| Gross weight |
1.86 kg
|
| Net weight |
1.54 kg
|
