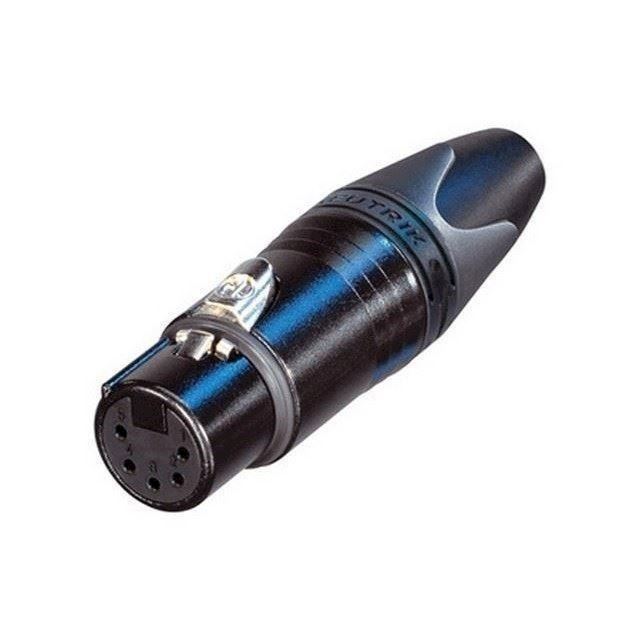

5 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assembl
Teknisk specifikationer Capacitance
between contacts≤ 7 pF Contact resistance≤ 3 mΩ (inner) Dielectric
strength1,5 kVdc Insulation resistance> 2 GΩ (initial) Rated current
per contact7,5 A Rated voltage50 V Cabel O.D.3.5 - 8.0 mm Insertion
force≤ 20 N With drawal force≤ 20 N Lifetime> 1000 mating
cycles Wiresize max. 1.0 mm² Wiresize max. 18 AWG Wiring Solder
contacts RW / Straightyes Locking device Latch lock Boot
Polyuretan Bushing Polyamide (PA 6 15% GR) Contact plating0.2 µm Au hard
alloy over 2 µm Ni Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30
% GR) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Zinc
diecast (ZnAl4Cu1) Shell plating Black chromium Strain relief Polyacetal
(POM) FlammabilityUL 94 HB Standard compliance IEC
61076-2-103 Protection classIP 40 SolderabilityComplies with IEC
68-2-20 Temperature range-30 °C to +80 °C
