LD 8" active Stage Monitor - MON 81 A G2

LD 8" active Stage Monitor - MON 81 A G2
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for LD 8" active Stage Monitor - MON 81 A G2
    Produktet er endnu ikke bedømt
  •
    2.379,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

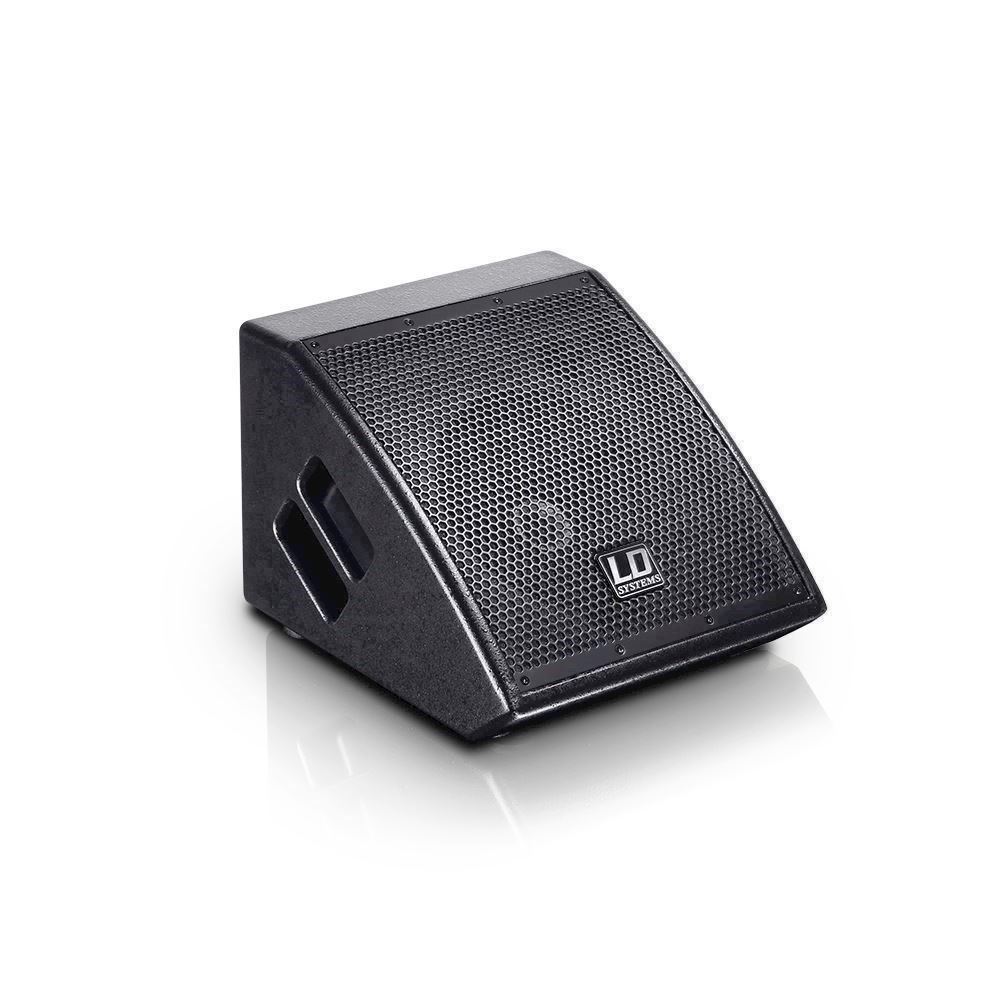

LD Systems Stinger MON81AG2

The LD Stinger MON81AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 116dB for versatile use on stage.

The 8" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output power of 320W Peak; short-circuit protection and a limiter ensure dependable operation.

The signal is connected and looped through using an XLR/ jack combo socket and the XLR output. The rear connector panel is rounded out by a volume control, LED indicators, and the IEC power socket.

The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.







Product typePA loudspeaker
TypeActives
Low/mid driver dimensions8 "
Woofer size203 mm
Woofer typecoaxial loudspeaker
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
HF driver dimensions1 "
HF Driver Size25.4 mm
HF driver magnetFerrite
HF driver brandCustom-made
HF driver voice coil1 "
HF Driver Voice Coil25.4 mm
AmplifierClass A/B
Dispersion (H x V)75 x 75 °
RMS80 W
Peak power320 W
Frequency response90 - 20000 Hz
Crossover frequency2400 Hz
SPL (1W/1m)97 dB
Max. SPL (continuous)111 dB
Max. SPL (peak)116 dB
Protection circuitsshort circuit, limiter
ControlsOn / Off, volume
IndicatorsPower, Limit
Line Inputs1
Line input connectors6.3 mm jack, XLR
Line Outputs1
Line output connectorsXLR
Operating voltagetransformer, 230 V AC / 50-60 Hz
Cabinet material15 mm Birch Plywood
Cabinet constructionvented
Monitor angle35 °
Width320 mm
Depth250 mm
Height361 mm
Weight10,6 kg
Featuresergonomically shaped insert handles


Varenr.: A-LDMON81AG2
