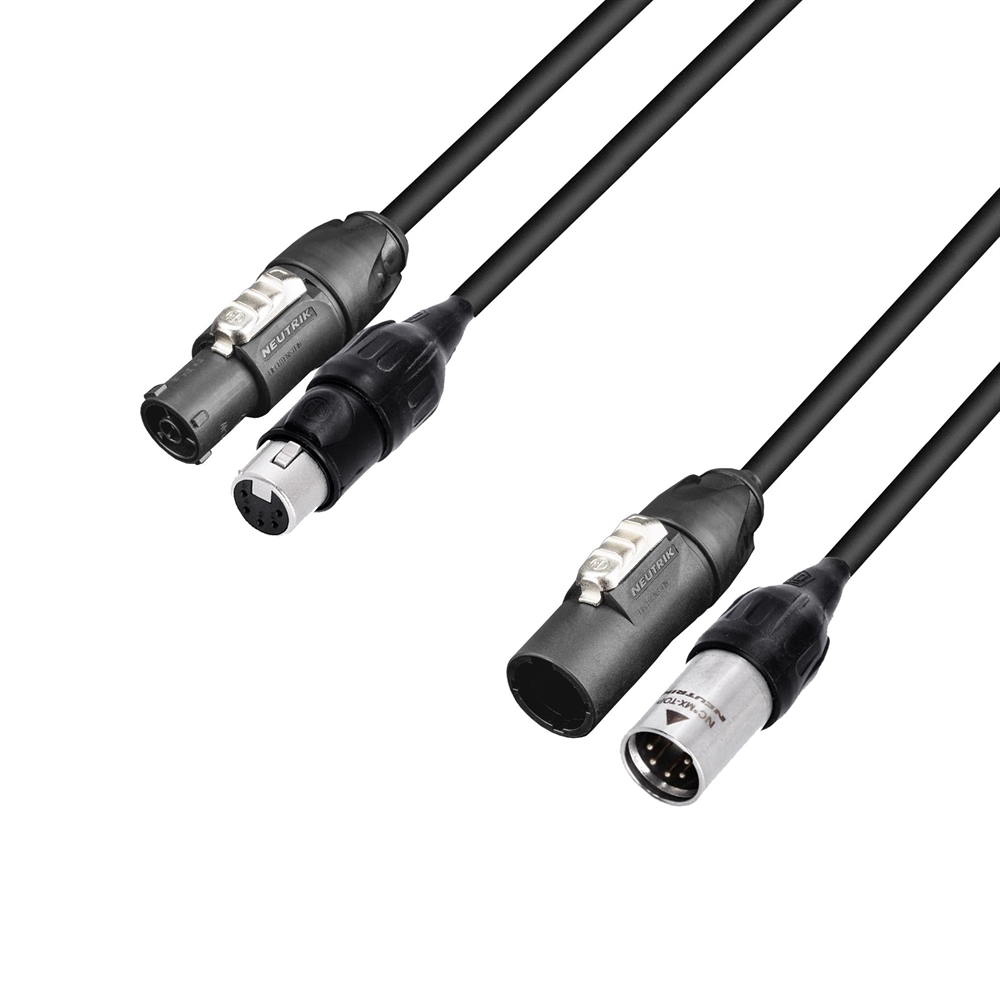

Hybrid Cable DMX Neutrik® XLR 5-pole x powerCON TRUE1-TOP® - 5 m - Adam Hall Cables

Hybrid Cable DMX Neutrik® XLR 5-pole x powerCON TRUE1-TOP® - 5 m - Adam Hall Cables
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Hybrid Cable DMX Neutrik® XLR 5-pole x powerCON TRUE1-TOP® - 5 m - Adam Hall Cables
    Produktet er endnu ikke bedømt
  •
    1.119,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




  • No more cable tangle thanks to only one cable for your devices
  • Conductor cross-section (mains cable): 3 x 2.5 mm²
  • Conductor cross-section (DMX): 2 x 0.22 mm²
  • Splice length: 40 cm
  • With original Neutrik connectors (5-pole DMX to PowerCon True)
  • For parallel power supply and DMX signal transmission
  • Includes loose, transparent heat-shrink tubing for labelling the cable yourself
  • 95 % shielding




General

Cable length5 m
Split end length40 cm
Cable sheathPVC
Cable diameter17 mm
Cable colourBlack

Line

Connector type plug 1XLR 5-pole female
Model name plug 1Neutrik NC5FX-TOP
Contact material plug 1Silver plated
Connector type plug 2XLR 5-pole male
Model name plug 2Neutrik NC5MX-TOP
Contact material plug 2Silver plated
Conductor materialOxygen-free copper (OFC)
Conductor diameter2 x 0,22 mm²
AWG24
Capacity/m55 pF
Conductor impedance/km85 Ohm
Characteristic impedance120 Ω
ShieldBraided copper shielding
Cable sheathPVC
Cable diameter5 mm

Mains line

Plug type connector 1Mains plug device female IP65
Model name connector 1Neutrik NAC3FX-W-TOP
Plug type connector 2Mains plug device male IP65
Model name connector 2Neutrik NAC3MX-W-TOP
Conductor materialOxygen-free copper (OFC)
Conductor diameter3 x 2,5 mm²
AWG13
Cable sheathPVC
Cable diameter10 mm

Environmental

Protection classIP65
Temperature range-20 - 70 °C

Dimensions & weight

Weight930 g
Varenr.: A-8101PSDP50500NIP65
