- No more cable tangle thanks to only one cable for your devices
- Conductor cross-section (mains cable): 3 x 2.5 mm²
- Conductor cross-section (DMX): 2 x 0.22 mm²
- Splice length: 40 cm

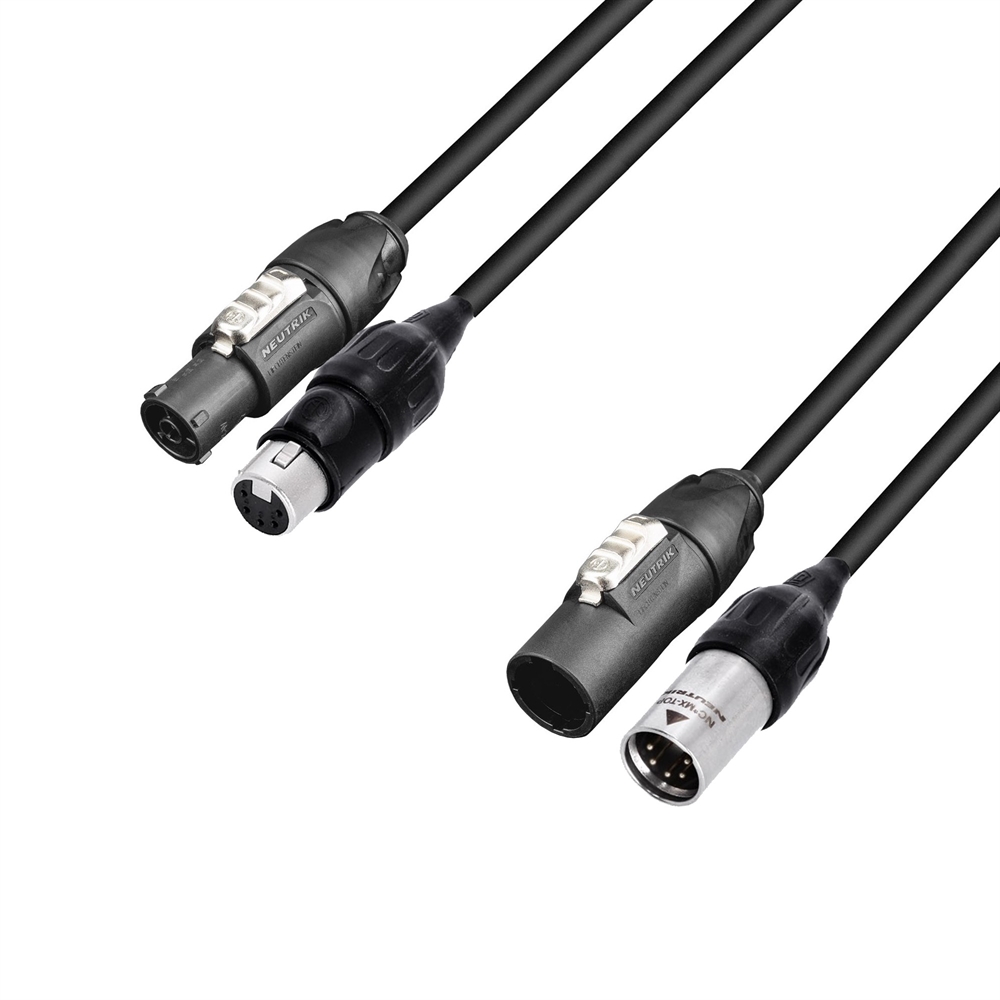

- With original Neutrik connectors (5-pole DMX to PowerCon True)
- For parallel power supply and DMX signal transmission
- Includes loose, transparent heat-shrink tubing for labelling the cable yourself
- Shielding 95
General
| Cable length | 1.5 m |
| Split end length | 40 cm |
| Cable sheath | PVC |
| Cable diameter | 17 mm |
| Cable colour | Black |
Line
| Connector type plug 1 | XLR 5-pole female |
| Model name plug 1 | Neutrik NC5FX-TOP |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 5-pole male |
| Model name plug 2 | Neutrik NC5MX-TOP |
| Contact material plug 2 | Silver plated |
| Conductor material | Oxygen-free copper (OFC) |
| Conductor diameter | 2 x 0,22 mm² |
| AWG | 24 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Characteristic impedance | 120 Ω |
| Shield | Braided copper shielding |
| Cable sheath | PVC |
| Cable diameter | 5 mm |
Mains line
| Plug type connector 1 | Mains plug device female IP65 |
| Model name connector 1 | Neutrik NAC3FX-W-TOP |
| Plug type connector 2 | Mains plug device male IP65 |
| Model name connector 2 | Neutrik NAC3MX-W-TOP |
| Conductor material | Oxygen-free copper (OFC) |
| Conductor diameter | 3 x 2,5 mm² |
| AWG | 13 |
| Cable sheath | PVC |
| Cable diameter | 10 mm |
Environmental
| Protection class | IP65 |
| Temperature range | -20 - 70 °C |
Dimensions & weight
Varenr.: A-8101PSDP50150NIP65
