COMBO chassis fatning V-pcb

COMBO chassis fatning V-pcb
  • På lager
  • Fjern lager, 1-4 hverdage
  • Bedømmelse for COMBO chassis fatning V-pcb
    Produktet er endnu ikke bedømt
  •
    19,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

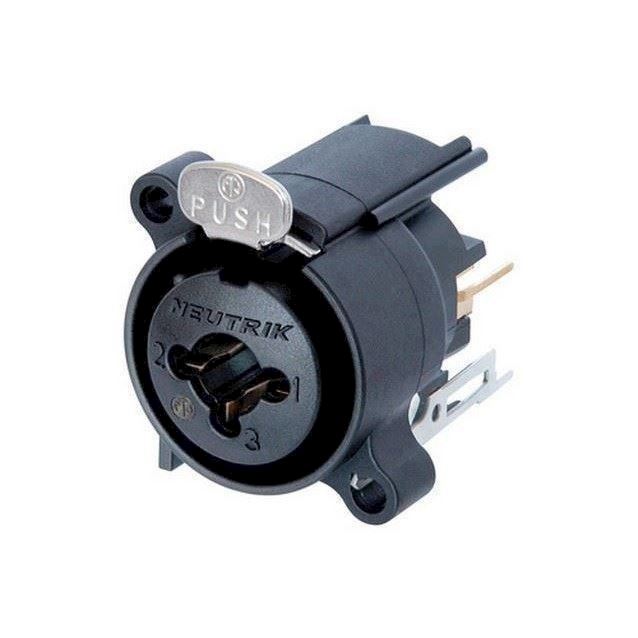

3 pole XLR female receptacle with 1/4 stereo jack, horizontal PCB mount. XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4 jack in the smallest available XLR housing.






Teknisk specifikationer Contact
resistance< 10 mΩ (inner) (XLR) Contact resistance< 10 mΩ
(outer) Dielectric strength1,5 kVdc Insulation resistance> 2 GΩ
(initial) Rated current per contact3 A (XLR) Rated current per contact3 A
(Jack) Rated voltage50 V Grounding OptionsS eparate ground contact to
mating connector shell and front panel Insertion force≤ 20 N With drawal
force≤ 20 N Lifetime> 1000 mating cycles Wiring Horizontal PCB
mount Locking device Latch lock Mounting directionrear Mounting screw
A-screw Contact platinggal 0.2 µm AuCo (XLR), gal 0.2 µm Ag (Jack RS),
Palladium, 0.1 µm Pd over 3 µ Contacts Bronze (CuSn6) Insert Polyamide
(PA 6.6 30 % GR) Locking element Steel Ck67 Flammability UL 94
HB Solderability Complies with IEC 68-2-20 Temperature range-30 °C to +80
°C
Varenr.: NEU-NCJ6FAV
