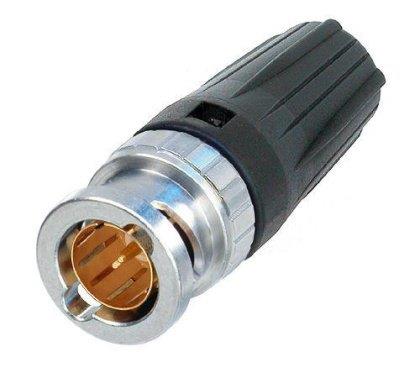

NBNC75BQP11 BNC stik til 4,8mm kabel (Belden 1695A, CommScope 2279V
NBNC75BQP11 rearTWIST HD BNC-kabelstikket tilbyder et 75ohm design og egner sig perfekt til HD-applikationer.
Egnede kabler: Belden 1695A, CommScope 2279V
Contact resistance: <= 3 mOhm (inner)
Contact resistance: <= 2 mOhm (outer)
Dielectric strength: 1,5 kVdc
Impedance: 75 Ohm
Insulation resistance: > 5 G Ohm
Rated voltage: VSWR: <=1.050/>32 dB up to 1 GHz, <=1.065/>30 dB up to 2 GHz, <=1.100/>26 dB up to 3 GHz
Cable O.D.: 6,3 mm
Cable retention: > 30 N (Center)
Crimp size: 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force: Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert: PTFE
Shell: Brass (CuZn39Pb3)
Shell plating: Optalloy®
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2
