NBNC75BFG7X BNC stik UHD kompatibel med bl.a. Mogami 2964 kabel

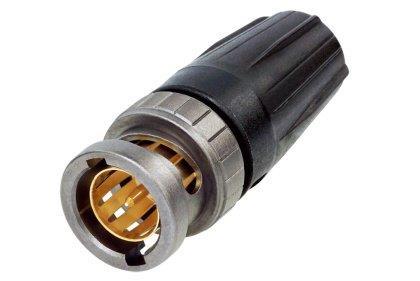

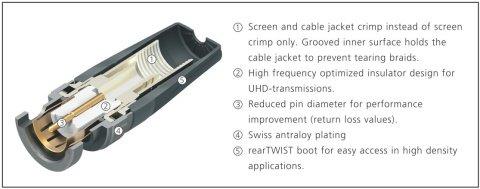

NBNC75BFG7X rearTWIST UHD BNC-kabelstikket er specifikt designet til højopløselige video-signaltransmissioner. Stikkets unikke isolator og kontakt pin-design sørger for at signaltabet er minimalt ved 4K og 8K signaler.
Egnede kabler:
Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
UHD-optimerede kabler:
Argosy Image 360, Belden 1855ENH, Belden 1855ECH, Belden 1855DNH, Belden 70080, Belden 70080NH, Belden 70080CH, Canford SDV-X-LFH, Draka HD Pro 0.6/2.8 AF, Klotz V062SH
Contact resistance: <= 3 mOhm (inner)
Contact resistance: <= 2 mOhm (outer)
Dielectric strength: 1.5 kVdc
Impedance: 75 Ohm
Insulation resistance: > 5 G Ohm
Rated voltage: VSWR: <=1.06 / >30 dB up to 6 GHz, <=1.13 / >24 dB up to 12 GHz, <=1.22 / >20 dB up to 18 GHz
Cable O.D.: 4.7 mm
Cable retention: > 30 N (center)
Crimp size: 5.0 Hex crimp (shield)
Crimp size (pin): 1.07 crimp
Insertion force: Lifetime: > 1000 mating cycles
Locking device: Bayonett
Cable anchoring: Jacket crimping
Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
Shell: Brass (CuZn39Pb3)
Shell plating: Antraloy
Insert: PP
Temperature range: -30 °C to +85 °C
Contact crimpability: Complies with IEC 60803 and IEC 60352-2
