| Impedance (Z) | 8 Ω |
| Transmission method | - |
| Frequency range | fx-5,000 Hz |
| Resonant frequency (fs) | 80 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | 40 W |
| Peak music power output | 80 W |
| Sensitivity | 87 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 0.79 mm/N |
| Moving mass (Mms) | 4.9 g |
| Mech. Q factor (Qms) | 3.05 |
| Electr. Q factor (Qes) | 0.67 |
| Total Q factor (Qts) | 0.55 |
| Equivalent volume (Vas) | 3.2 l |
| DC resistance (Re) | 6.2 Ω |
| Force factor (BxL) | 4.81 Tm |
| Voice coil induct. (Le) | 0.3 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 1.5 mm |
| Eff. cone area (Sd) | 55 cm2 |
| Magnet weight | 250 g |
| Magnet diameter | Ø 72 mm |
| Mounting cutout | Ø 90 mm |
| Mounting depth | 51.2 mm |
| Mounting hole diameter | Ø 82 mm |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |

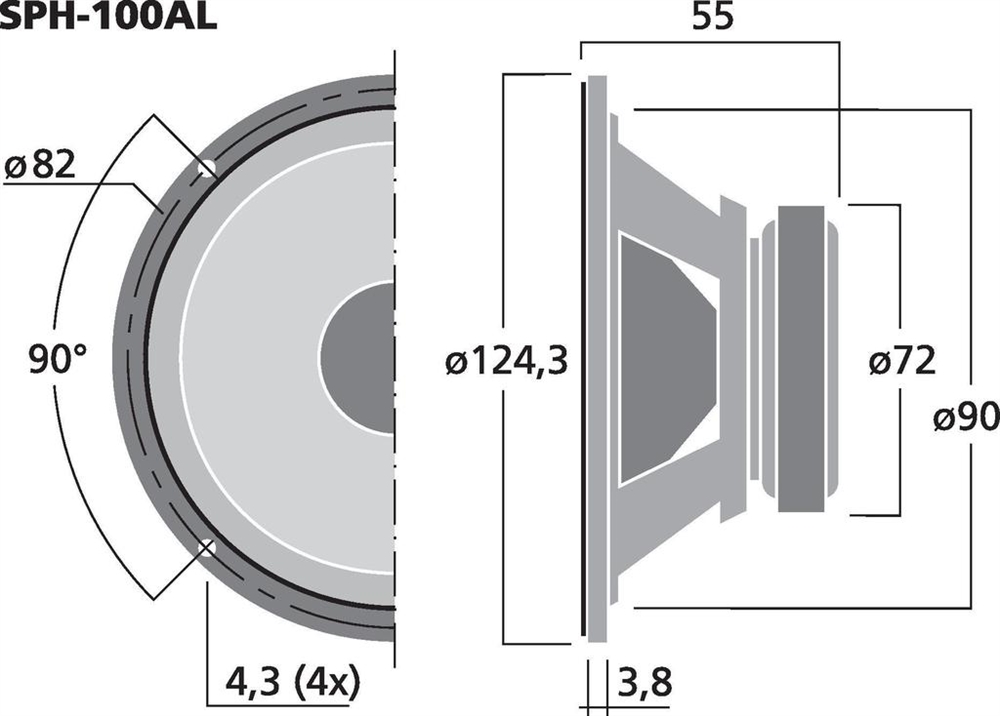

| Dimensions | Ø 124.3 mm x 55 mm |
| Outside diameter | Ø 124.3 mm |
| Width | Ø 124.3 mm |
| Height | - |
| Depth | 55 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.63 kg |
| Packing unit | 1 |
| Type of speaker | 4 |
