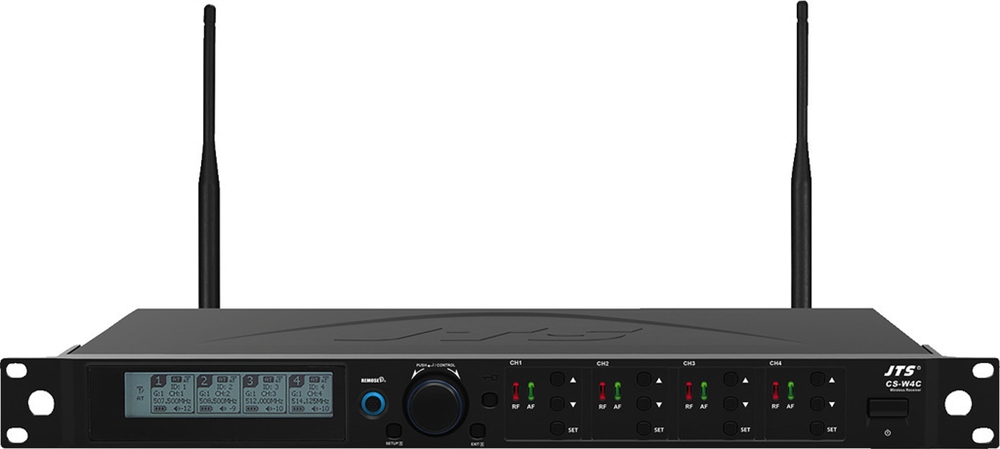

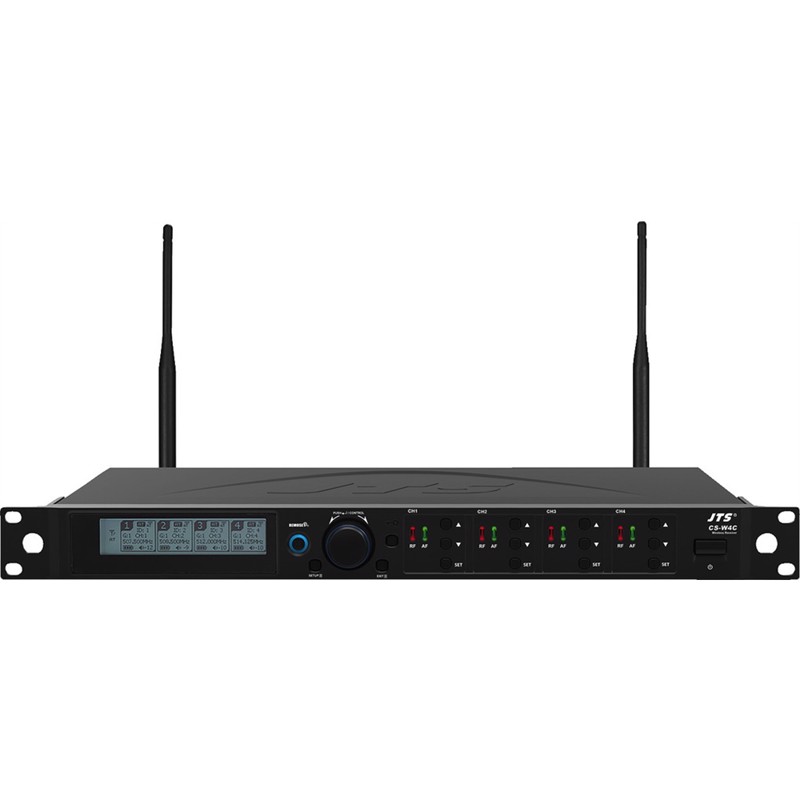

4-channel diversity UHF PLL wideband receiver for conference system - CS-W4C/5

Ikke på lager
Kontakt os.
Bedømmelse for 4-channel diversity UHF PLL wideband receiver for conference system - CS-W4C/5
Produktet er endnu ikke bedømt

4-channel diversity UHF PLL wideband receiver for conference system

Bandwidth: 36 MHz
6 groups, each with up to 22 compatible preset channels
1,441 selectable individual frequencies
RF output and mains voltage output for easily cascading up to 10 x CS-W4C/5 receiver without additional splitter
REMOSET technology for receiver/transmitter synchronisation
Removable antennas (BNC connection)
Auto-scan function
Pilot tone squelch and noise mute
Volume settings to be selected for each channel
Conference-specific priority settings
Conference modes: override, priority and open mode
Backlit display for indicating the status, e.g. for group/channel, frequency, battery, antenna A/B
LED for indicating RF level and AF level
Display for indicating battery status of the transmitters
Power supply for optional antenna booster
Link connections
Trigger output
XLR output per channel (bal.)
XLR output (bal.) and 6.3 mm output for mixed signal
Outputs mic/line, switchable
482 mm (19") rack installation, 1 RU

Technical specifications CS-W4C/5

CS-W4C/5
General information
Description	receiver unit
Carrier frequency range	506-542 MHz
Audio frequency range	60-16,000 Hz
Channels	4
THD	< 0.6%
Dynamic range	> 105 dB(A)
Admiss. ambient temp.	0-40 °C
Specifications transmitter
Specifications receiver
Audio signal receiver	630 mV/600 Ω XLR (line), 63 mV/600 Ω XLR (mic), 316 mV/600 Ω jack
Power supply receiver	˜ 110-240 V/50-60 Hz/20 VA
Width receiver	485 mm
Height receiver	45 mm
Depth receiver	260 mm
Weight receiver	2.4 kg
Connections receiver	5 x XLR, bal., 1 x 6.3 mm jack, unbal.

Varenr.: 1000017
