| Impedance (Z) | 2 x 8 Ω |
| Transmission method | - |
| Frequency range | f3-3,500 Hz |
| Resonant frequency (fs) | 26 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | 2 x 100 W |
| Peak music power output | 2 x 150 W |
| Sensitivity | 91 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 0.5 mm/N |
| Moving mass (Mms) | 55 g |
| Mech. Q factor (Qms) | 3.31 |
| Electr. Q factor (Qes) | 0.27 |
| Total Q factor (Qts) | 0.25 |
| Equivalent volume (Vas) | 84 l |
| DC resistance (Re) | 2 x 6.8 Ω/3.4 Ω |
| Force factor (BxL) | 11.1 Tm |
| Voice coil induct. (Le) | 2 x 1.1 mH/1.1 mH |
| Voice coil diameter | 50 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 4.5 mm |
| Eff. cone area (Sd) | 346 cm2 |
| Magnet weight | 1.2 kg |
| Magnet diameter | Ø 145 mm |
| Mounting cutout | Ø 232 mm |
| Mounting depth | 119 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |

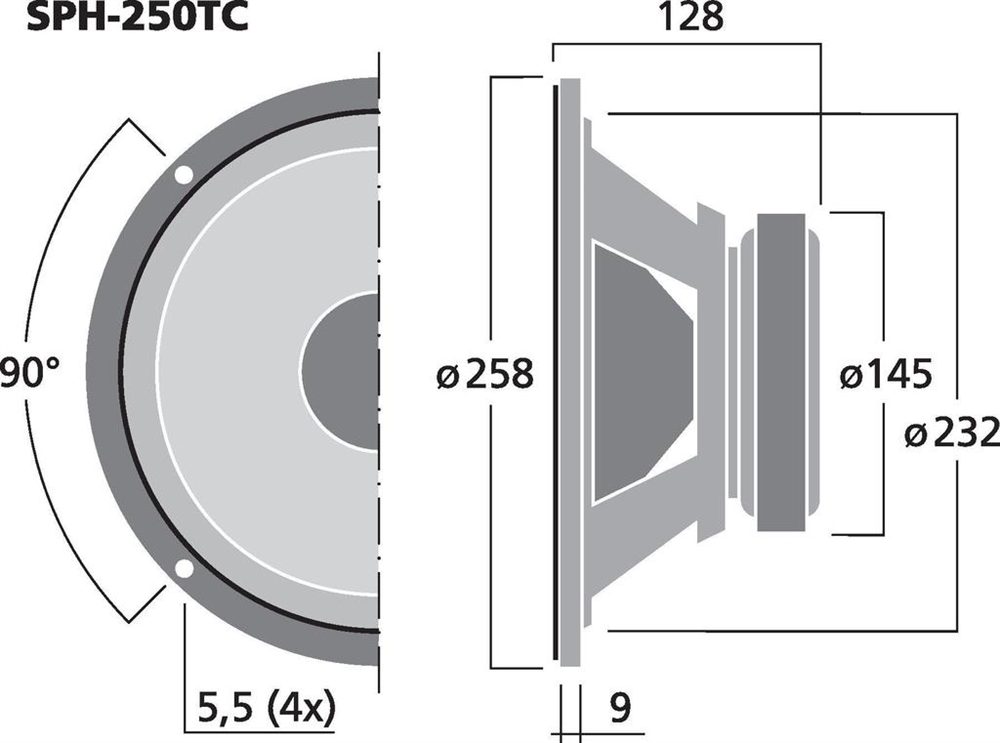

| Dimensions | Ø 258 mm x 128 mm |
| Outside diameter | Ø 258 mm |
| Width | Ø 258 mm |
| Height | - |
| Depth | 128 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 3.7 kg |
| Packing unit | 1 |
| Type of speaker | 10" |
