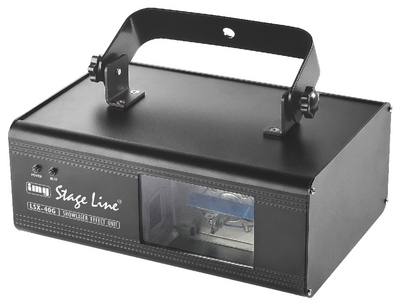

Laser effect unit,
with a green laser and control facility via DMX or sound.

• Green laser diode (40mW)
• Laser class: 3b
• DMX512 interface, 7 DMX channels, address can be adjusted via menu buttons, indication via display
• Switchable mode: stand-alone/sound
• Sound mode via integrated adjustable microphone
• 32 basic patterns, positionable and turnable, size can be changed
• Key-operated switch for a safe operation according to EN60825-1
• Power supply: 230V˜/50Hz/15VA
• Dimensions of unit: 252x140x200mm
• Weight: 1.9kg



The accessible laser radiation is hazardous to the human eye, often also to the skin! It is dangerous to look directly into the beam of classes 3b and 4 lasers. It may be possible to view a beam safely via diffusing reflectors.

When using a laser of the classes 3b and 4, the employer has to appoint an authorised laser user in writing (BGV B2 = Accident Prevention & Insurance Association regulation B2)! Authorised laser users must have the requisite qualifications!
