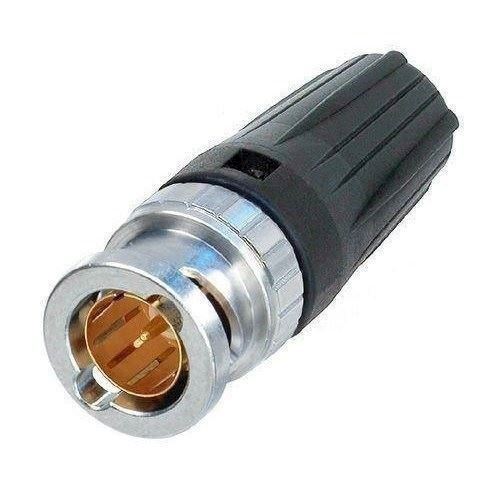

The RearTwist® BNC cable connector offers a true 75 Ù design and is perfectly suitable for HD applications.
The patented Rear Twist® boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Belden 1505A (ANH), Belden 8241F, Canare L-4CFB, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Suhner S0426, Sommer 600-0451, Sommer 600-162(F)

Crimp size:
Pin: 1.6 mm (square)
Shield: 6.47 mm (hex)


Features & Benefits

"RearTwist® Principe" locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507).
Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
True 75 Ù design meets the stringent HD requirements.
Snug-fit center pin assembly provides tactile feedback.
Excellent cable protection and retention.
Precise machined brass parts for outstanding durability.
Accessories include color coded boots in 10 standard colors, crimp tool and dies.
