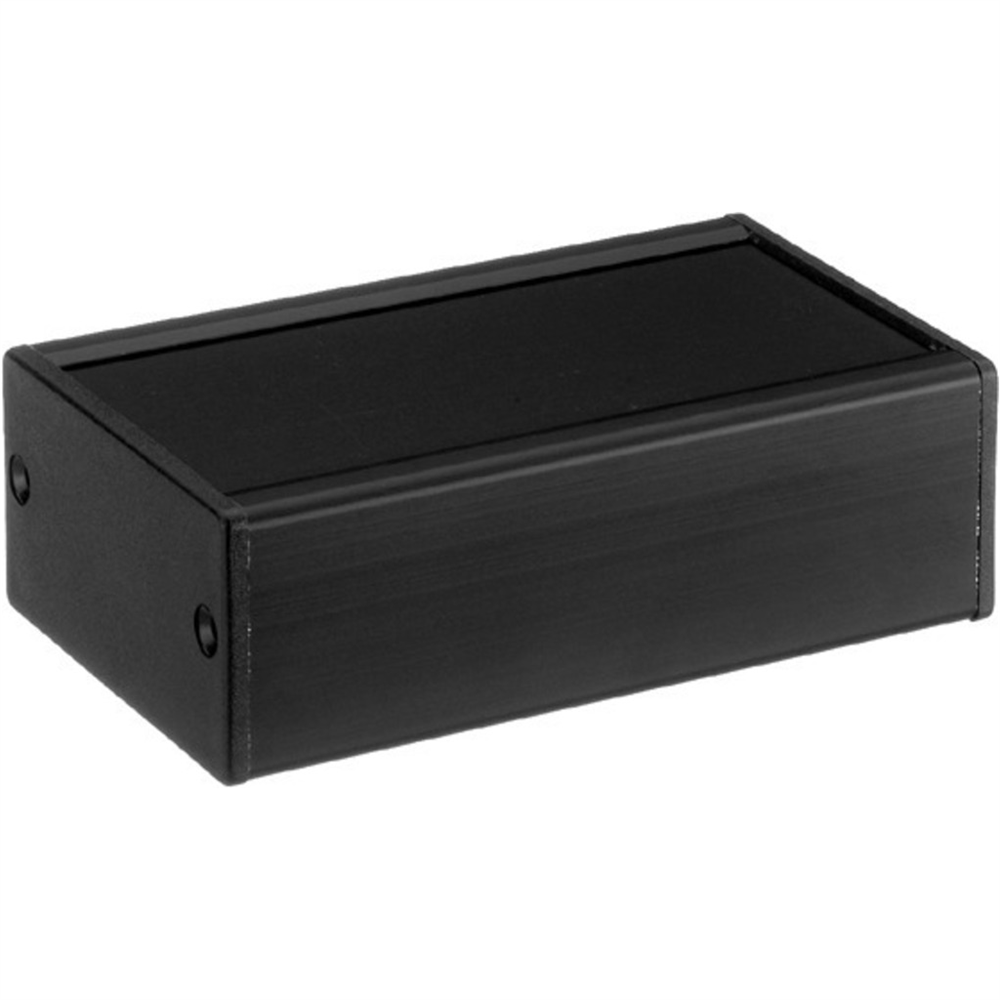

Series of Utility Cases

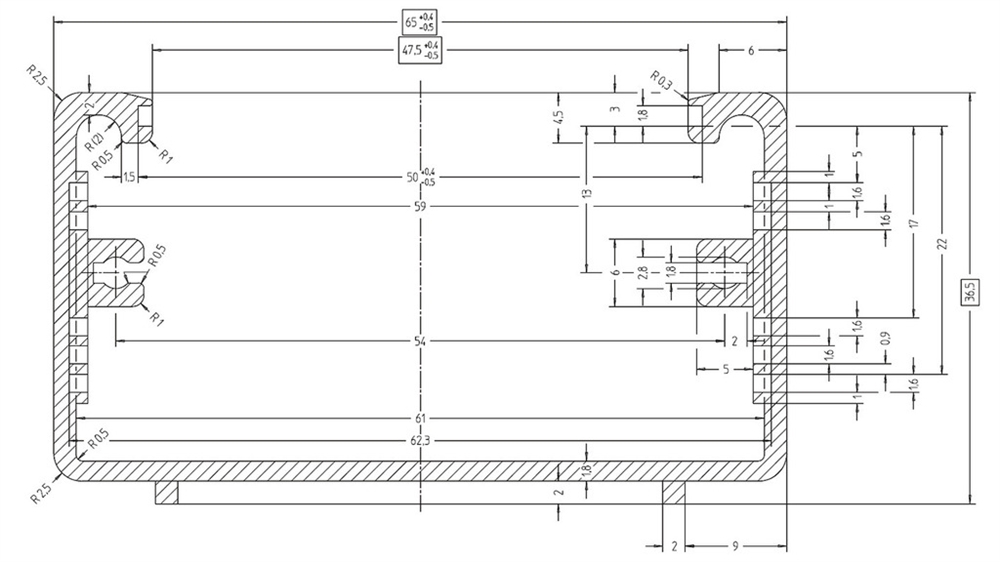

Made of extruded profile with insertion grooves for printed circuits in different heights (12/17/22mm distance to the front panel). Exchangeable front panel with protective foil of standard 1.5mm aluminium plate. Mat black ABS plastic side cover. The material surface is anodized and mat etched or black (SW).

Total height: 36.5mm.

Technical datasheet
Width	65mm
Length	107mm
PCB dimensions	62x100mm
