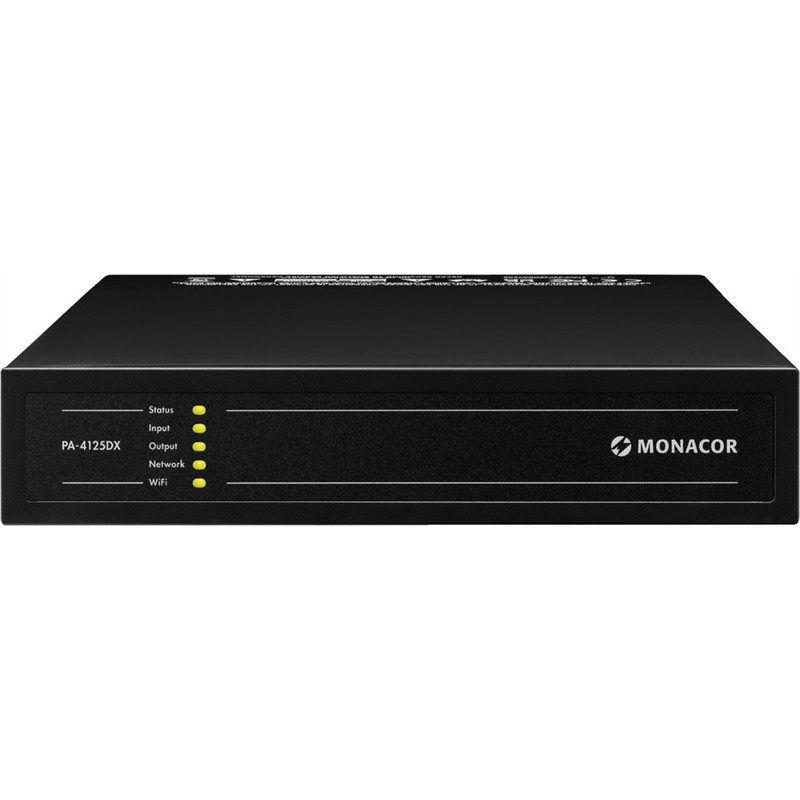

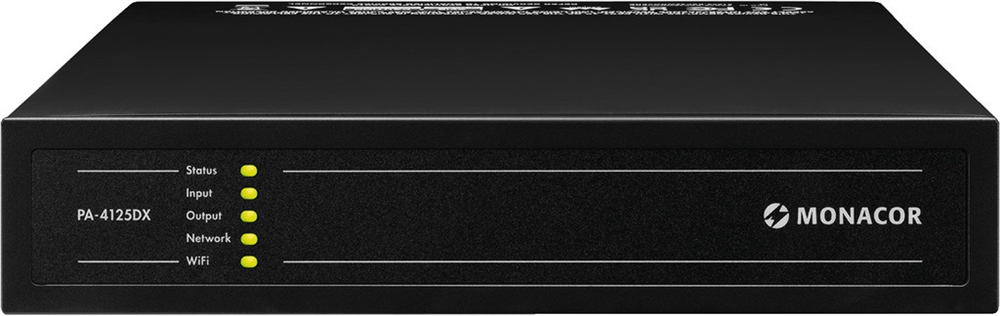

4-zone matrix mixing amplifier,
class D technology with DSP and professional features for general multi-room PA applications.

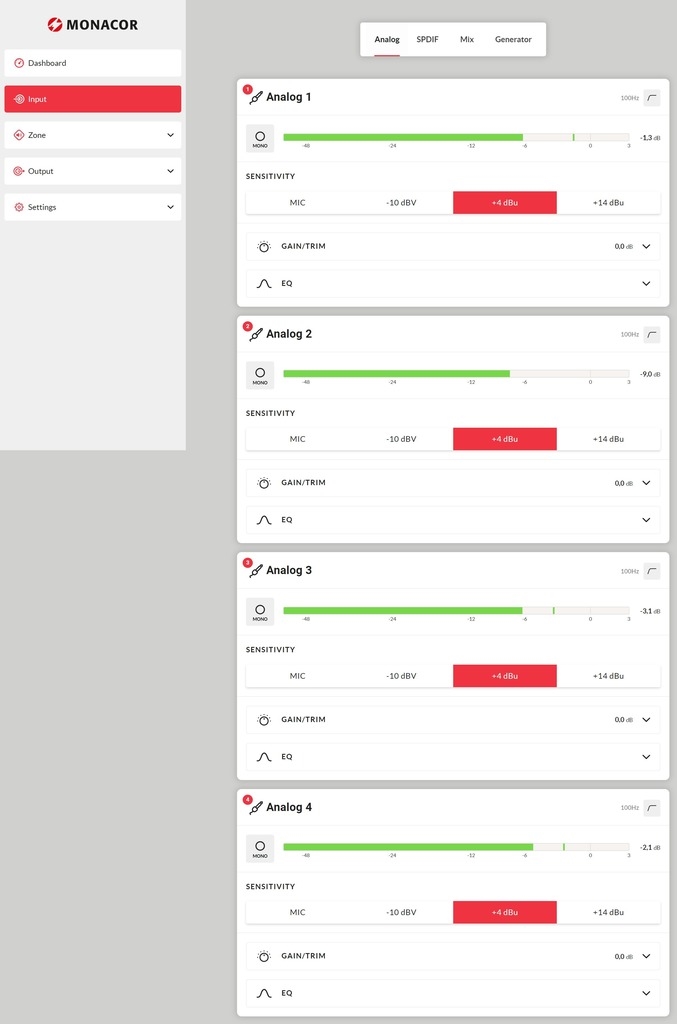

Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).
-
4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
-
100 V or 4/8 Ω operation
-

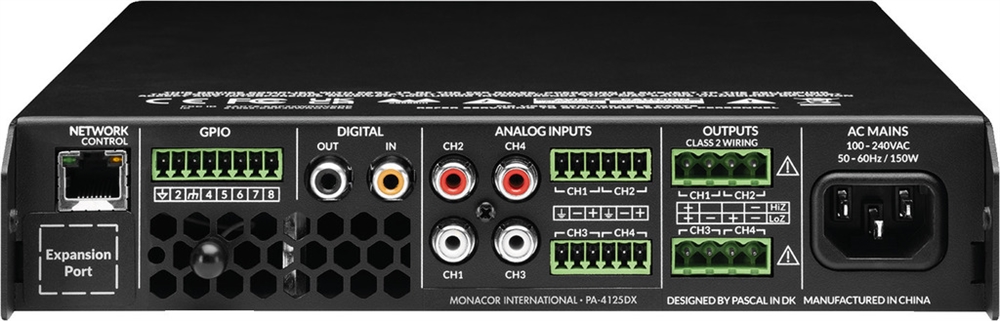

4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
-
1 digital input/output via S/PDIF RCA jacks
-
4 zone outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
-
GPIO connection for wall modules, external volume control, external mute switch or power switch, etc.
-
Network connection via LAN or WLAN
-
Convenient operation and configuration via user interface HTML5
-

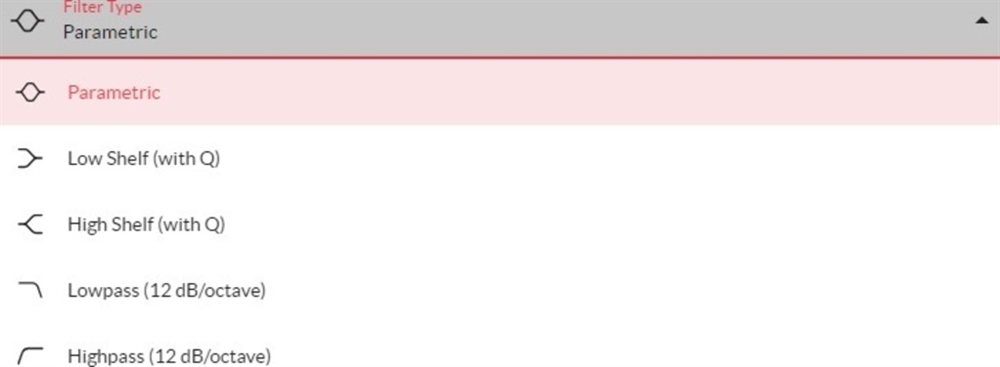

Various high pass/low pass filters
-
Parametric equalizer
-

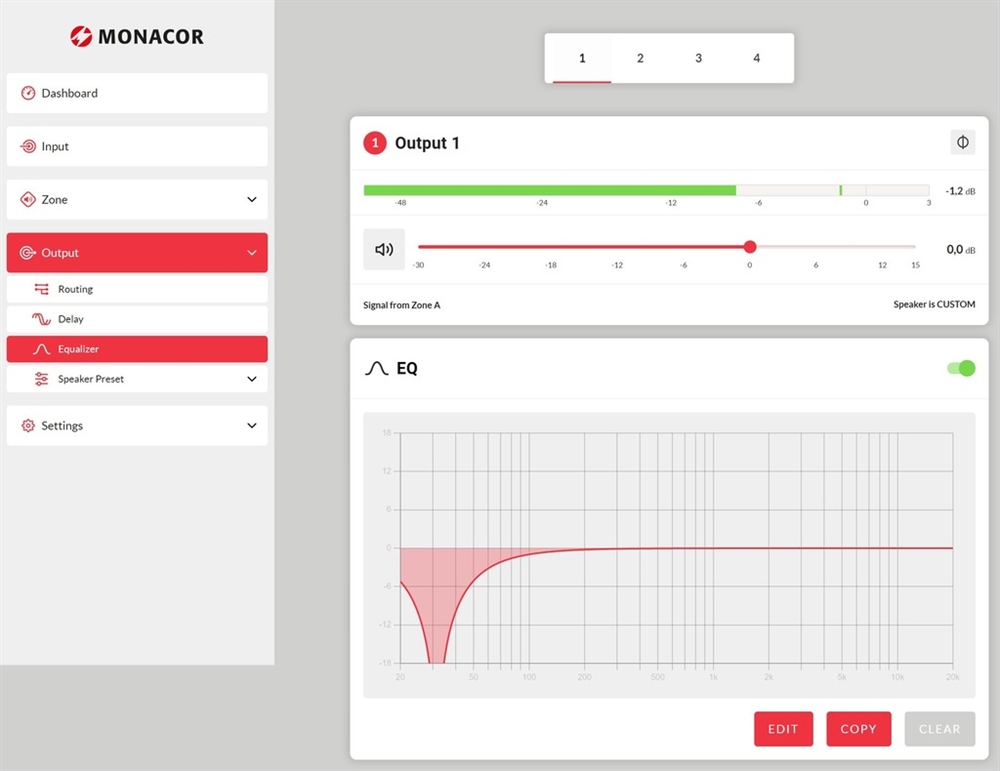

Output with separate FIR filters
-
Speaker matching: 10 ms
-
Switchable output phase
-
Adjustable compressor/limiter
-
Adjustable delay
-
Mix inputs
-

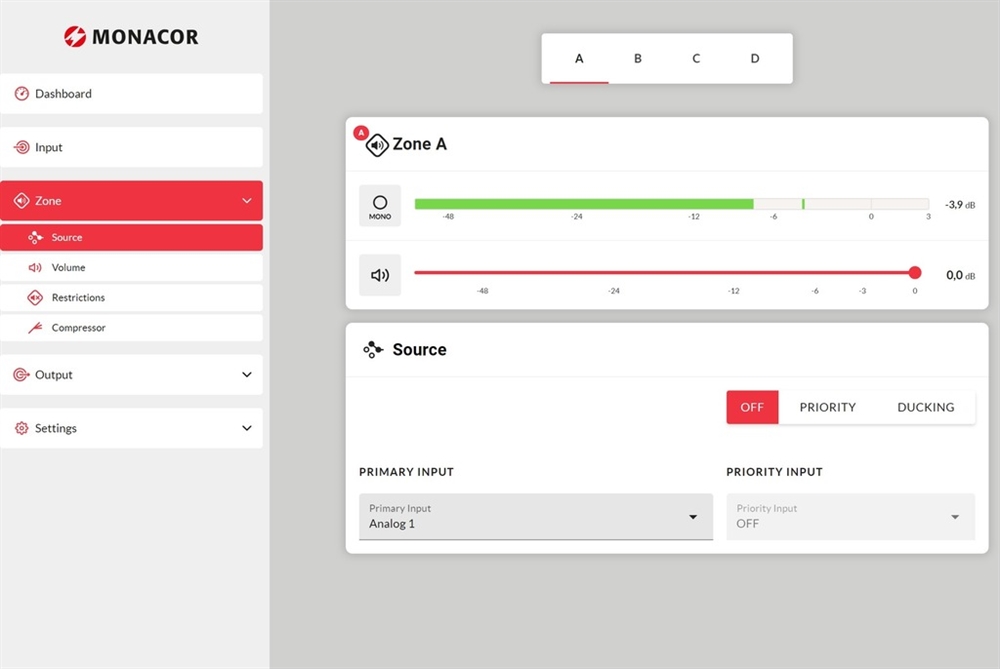

Talkover with priority routing
-
Built-in sine wave noise generator
-

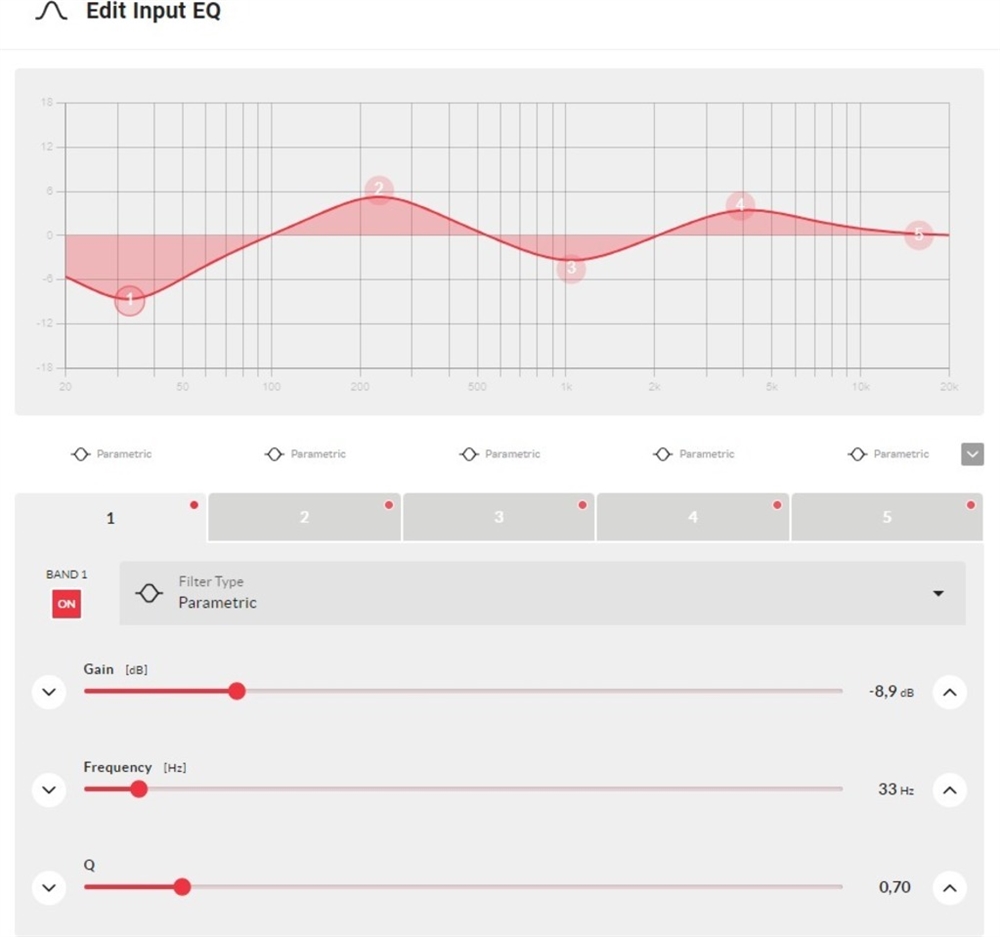

Parametric 5-band equalizer for input
-
Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload
