Product type | Power Amplifiers |
Type | PA Power Amplifiers |
Rated ouput power (1kHz @ 2 Ohms) | 2 x 1200 W |
Rated ouput power (1kHz @ 4 Ohms) | 2 x 950 W |
Rated ouput power (1kHz @ 8 Ohms) | 2 x 600 W |
Rated ouput power (1kHz @ 4 Ohms, bridged) | 2200 W |
Rated ouput power (1kHz @ 8 Ohms, bridged) | 1800 W |
Output circuitry | Class H |
Frequency response | 20 - 20000 Hz |
THD | < 0.1 % |
Signal-to-noise ratio | 106 dB |
Damping factor | > 450 |
Crosstalk | >76 dB |
Gain | 39 dB |
Input sensitivity | 0.775 V |
Protection circuits | short circuit, thermal overload, clip limiter, DC protection |

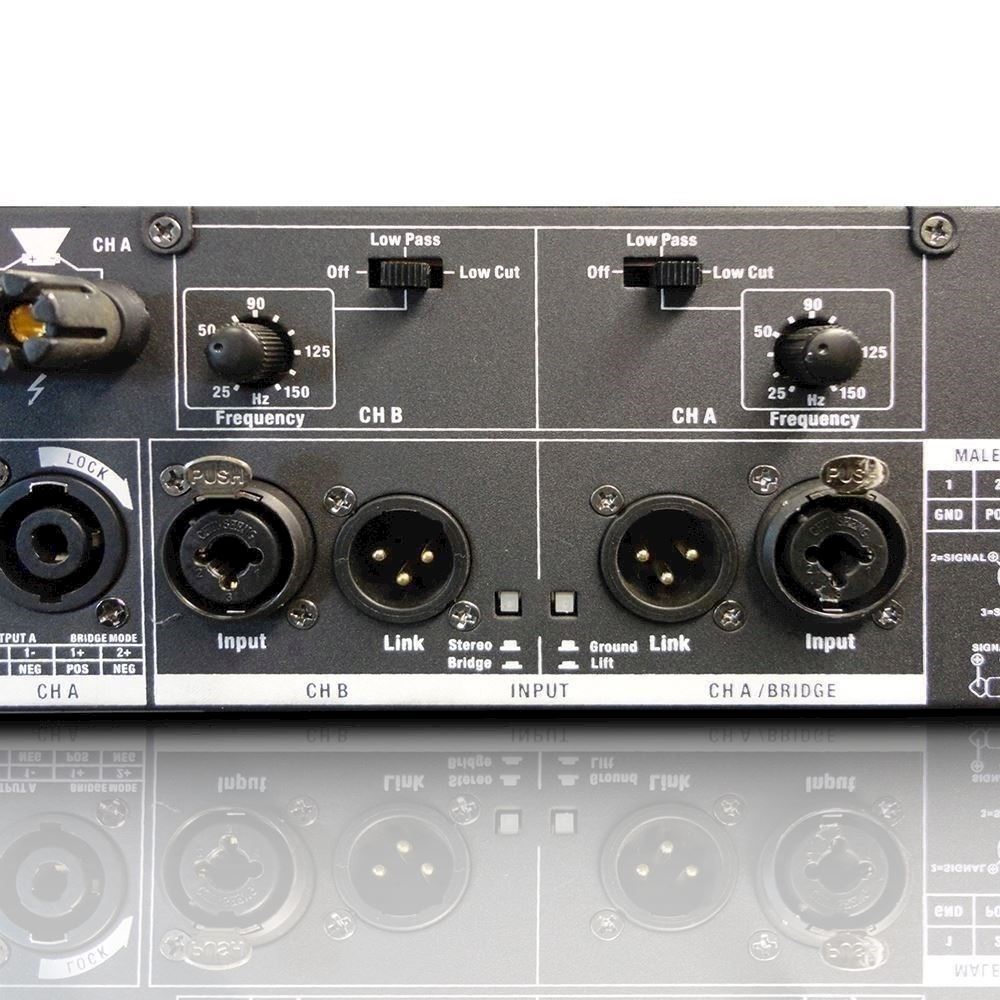

Controls | 2 x highpass/lowpass (switchable), 2 x volume, ground lift, mains switch (on/off), bridge/stereo mode selector |
Indicators | Power, Protect (protection circuit engaged), Signal, level, Limit |
Loudspeaker outputs | 2 |
Speaker output connections | Speakon compatible, Terminal posts |
Cooling | highly efficient, automatic |
Operating voltage | transformer, 230 V AC / 50-60 Hz |
Weight | 17,6 kg |
Features | Volex mains socket |
