FEATURES

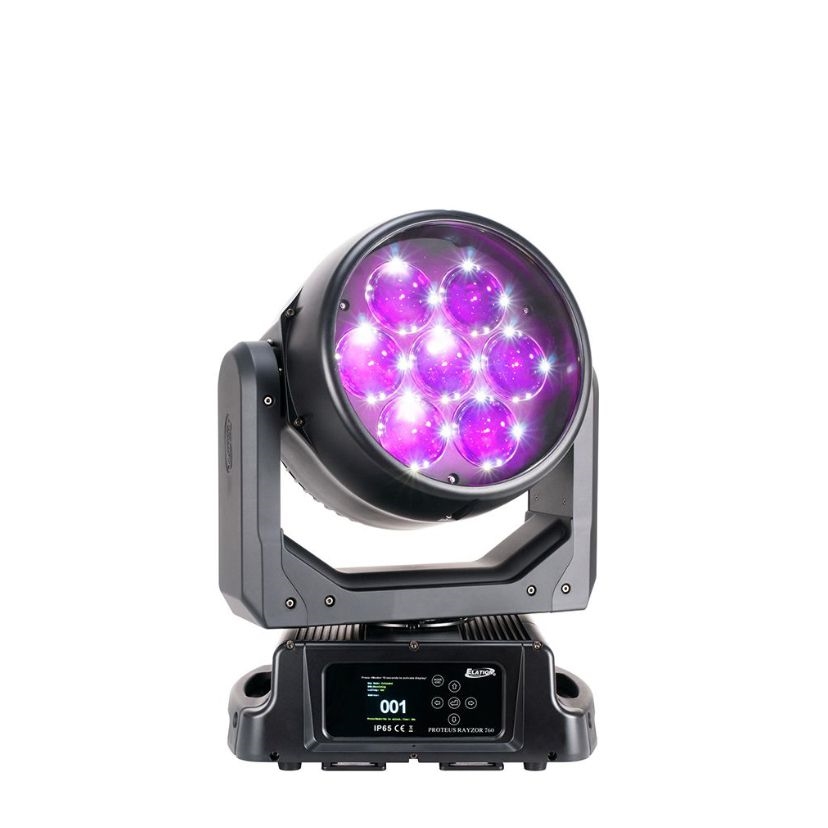

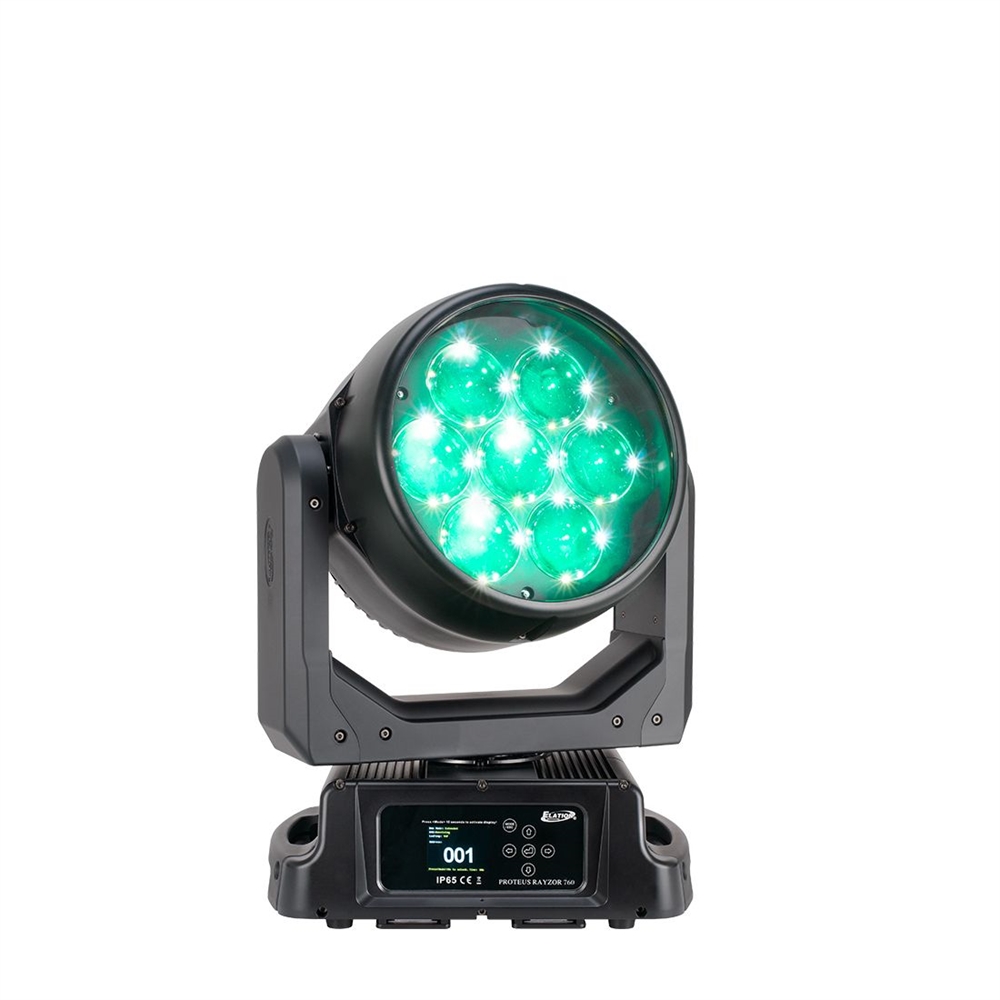

IP65 Rated LED Wash Effects Fixture
7x 60W OSRAM RGBW LED with Pixel Control
28x 2W SparkLED™ Effect with Pixel Control (patent pending)
Extreme Zoom 5° for mid-air beam to 77° for even washes
Fast and precise 360° continuous Pan and Tilt rotation
Beam FX and Smooth Wash fixture in a compact IP65 certified housing
SOURCE
(7) 60W Osram RGBW LEDs
(28) 2W White SparkLED™
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
7,200 Total Lumen Output
CRI 80
Zoom Range 5° - 77°
Beam Angle 5.4° - 56.4°
Field Angle 8.1° - 74°
EFFECTS
Motorized Zoom
Linear Color Temperature Presets (2,700 - 8,000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
Pan Angle: 540°/630°
Tilt Angle: 270°/360°
COLOR
RGBW Multi-Chip LEDs
White SparkLEDs
Variable Color Temperature (2,700K – 8,000K)
CONTROL / CONNECTIONS
3 DMX Channel Modes (25 / 52 / 80 channels)
360° Continuous Pan and Tilt Movement
DMX Adjustable Refresh Rate (900 -25,000 Hz)

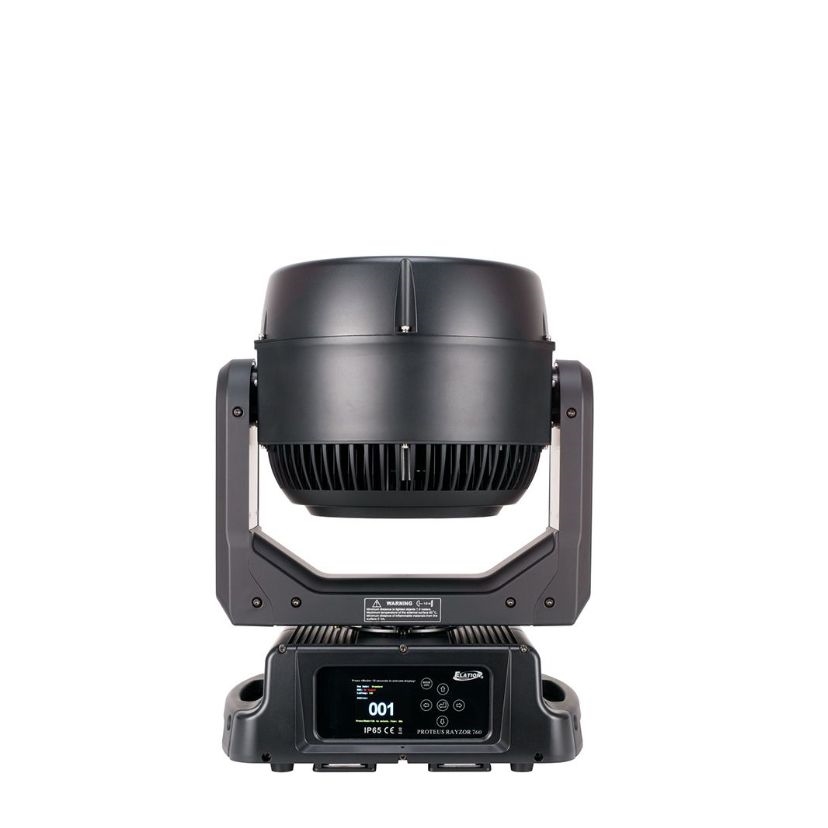

(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
RDM Support
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
IP65 locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 363.4mm (14.31 in)
Width: 259.97mm (10.24 in)
Height: 493.44mm (19.43 in)
Center-to-Center: 421.5mm (16.6”)
Weight: 18.6kg (41.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 2,387
