FEATURES

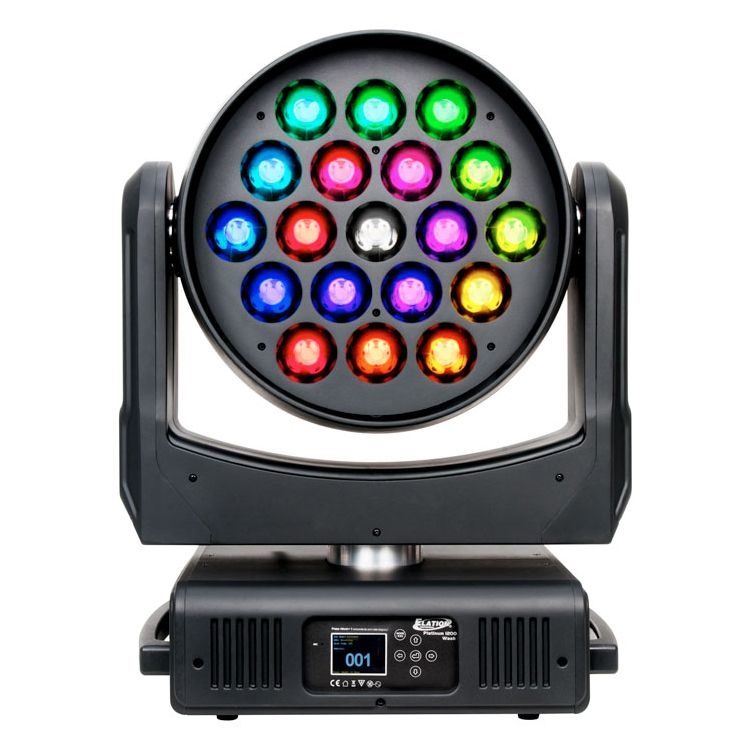

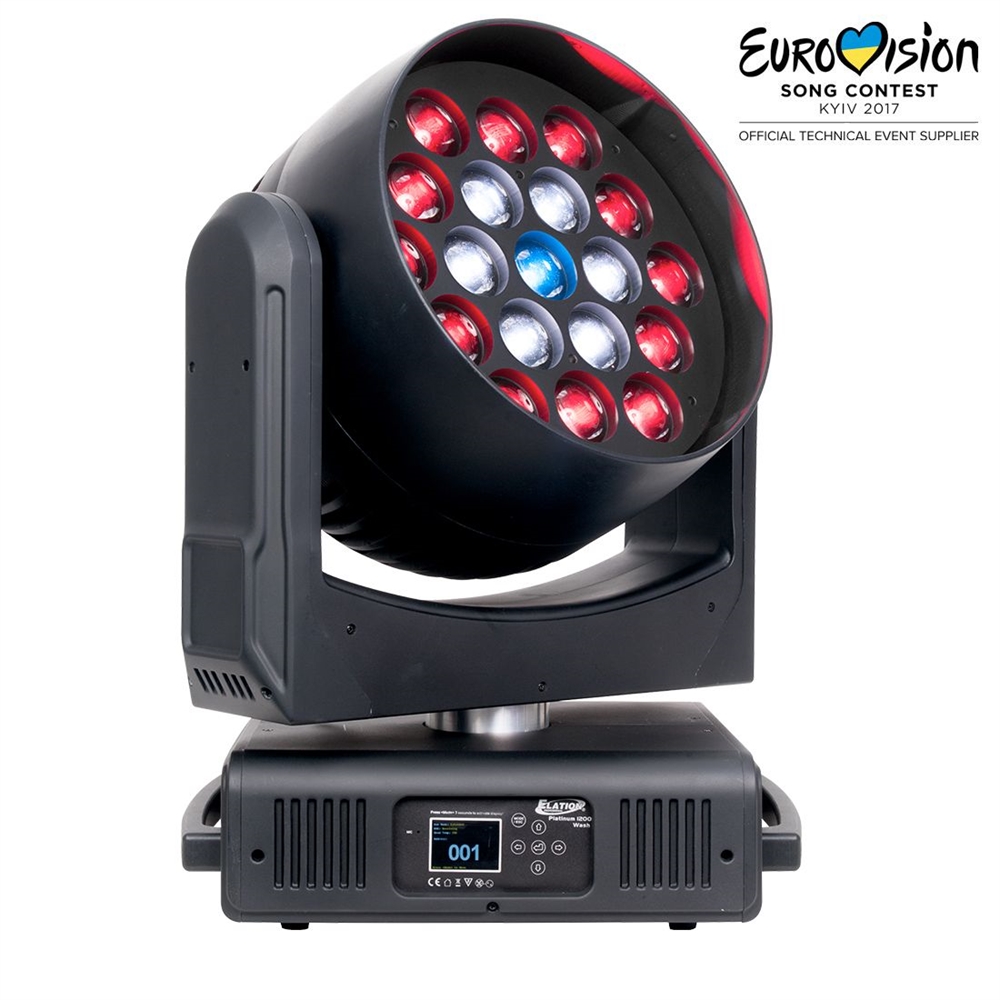

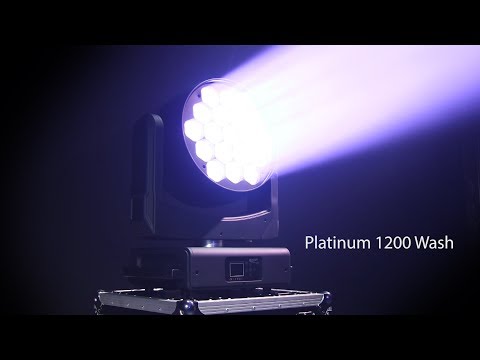

High Power Moving Head Wash Luminaire
19x 60W Osram™ RGBW LEDs
Pixel or Pixel Ring Controlled LEDs
8° - 77° Wide Zoom Range
Pan/Tilt Lock
Advanced Cooling Control Systems
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE

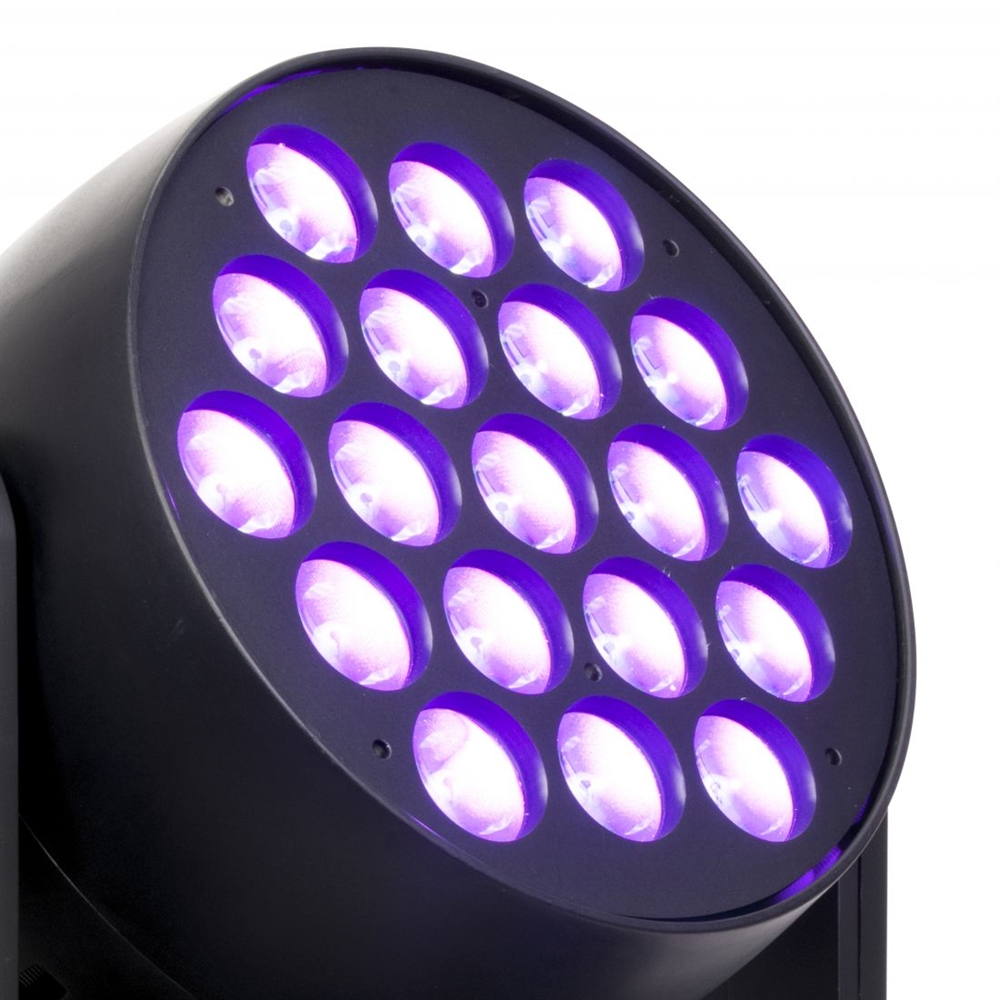

19x 60W Osram™ Multi-Chip LEDs
50,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
41,730 LUX 3,877 FC @ 5m (16.4’) (Min. Zoom)
3,637 LUX 338 FC @ 5m (16.4’) (Max. Zoom)
EFFECTS
Pixel or Pixel Ring Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBW Multi-Chip LEDs
Variable Color Temperature (2,700K – 8,000K)
CONTROL / CONNECTIONS
3 DMX Channel Modes (17 / 35 / 93)
DMX, Art-NET, sACN and Kling-NET Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 - 25,000Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display

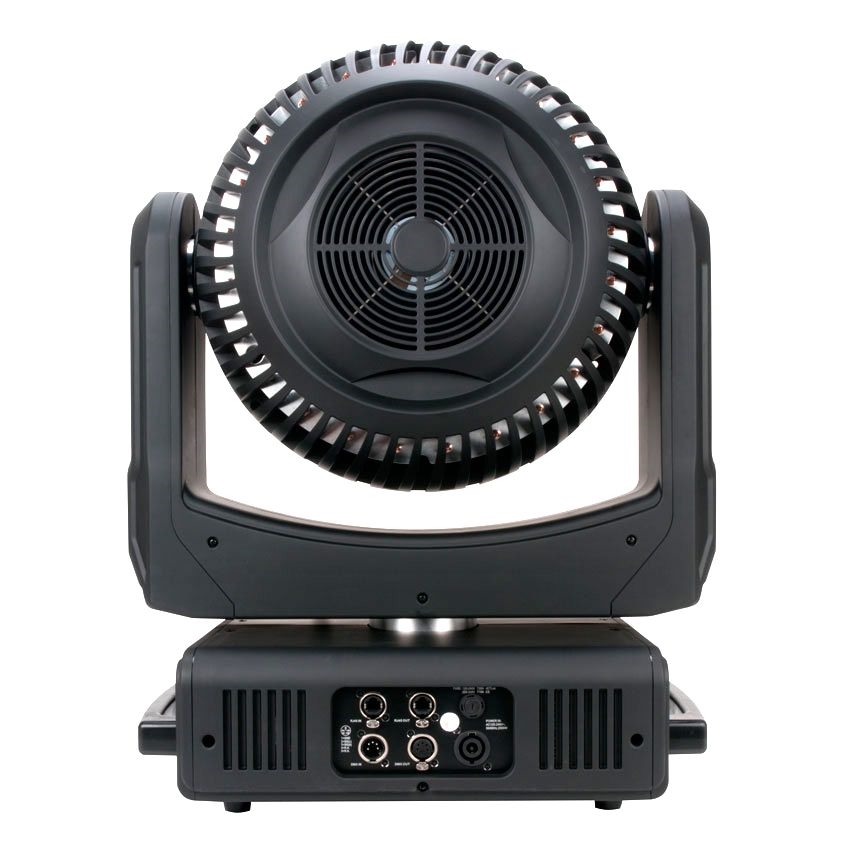

Locking 5pin XLR DMX In/Out
Locking RJ45 Ethernet In/Out (Art-NET, sACN and Kling-NET)
Locking Power 32A In
SIZE / WEIGHT
Length: 533mm (21.0”)
Width: 410mm (16.1”)
Vertical Height: 588mm (23.2”)
Weight: 39 kg (86.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
2000W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III
1521000318 PRO Case 1x Platinum 1200 Wash
1521000319 PRO Case 2x Platinum 1200 Wash
