Compact Spot Moving Head - Cameo

Fjernlager
Kontakt os
Bedømmelse for Compact Spot Moving Head - Cameo
Produktet er endnu ikke bedømt

Indhent tilbud.Vis uden moms

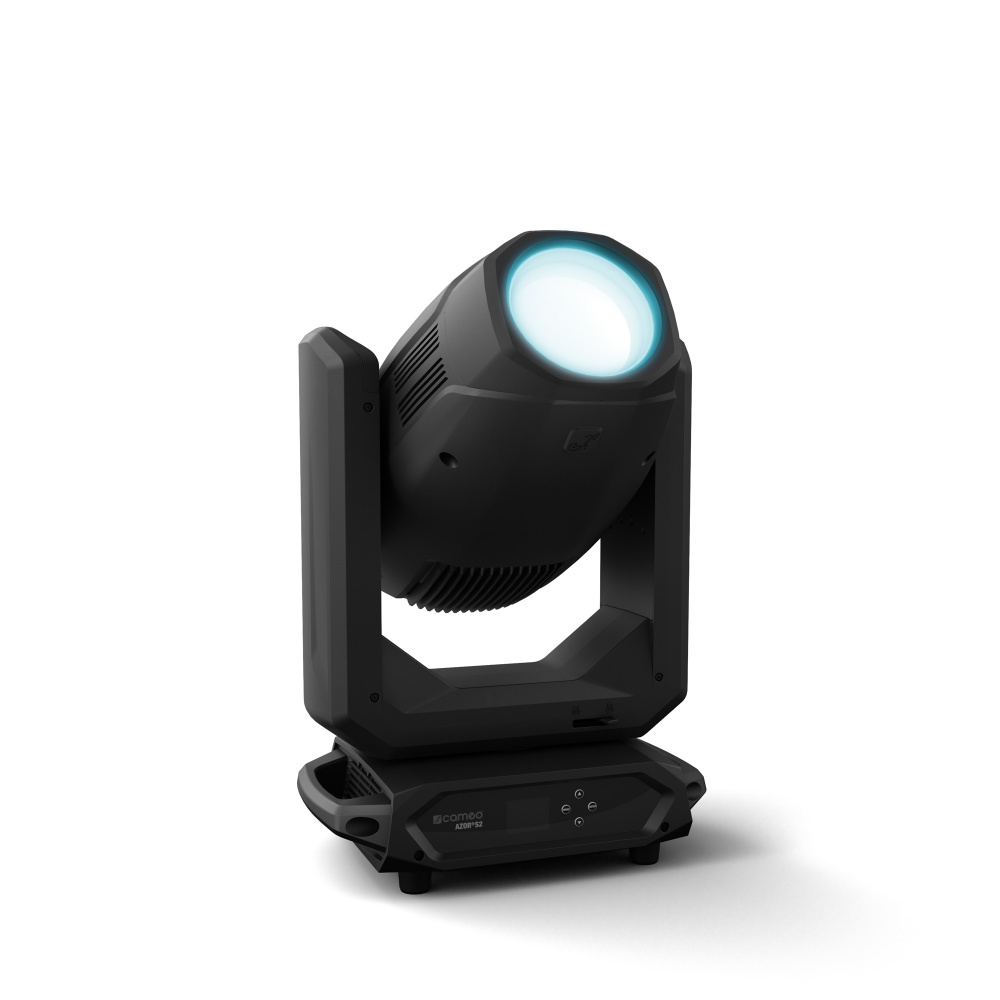

Every year, countless artists, bands, actors and presenters stand on small to medium-sized stages and need light! For all these events, Cameo has developed the AZOR® S2. The compact spot moving head is the ideal partner for lighting designers and event service providers who are looking for a powerful and versatile LED show light that does not lack professional features despite its compact size.

The AZOR® S2 is based on a 300 W LED light source with 13,000 lumens of luminous flux and a wide zoom range of 5°-50° for precise adjustment of the light beam on any stage. The integrated rotating CMY colour mixing system is complemented by an additional colour wheel with 8 dichroic filters to perform lightning-fast colour changes and split colours in conjunction with the 630° pan and 270° tilt movement.

The AZOR® S2 is even more flexible thanks to the two gobo wheels with 8 rotating or 11 static gobos (each plus open). Additional effect options are created by the different prisms, both of which can be rotated and indexed.

Thanks to the adjustable PWM frequency (650 Hz - 25 kHz), the AZOR® S2 is also suitable for use in TV and broadcast applications as well as wherever a camera transmits the action and is dependent on flicker-free LEDs in the picture.

The compact spot moving head can be controlled via DMX512, RDM or wirelessly via W-DMX using the optional Cameo iDMX adapter. On the spotlight itself, buttons and an OLED display provide a convenient basic setup.

Compact spot moving head
300 W LED illuminant with 13,000 lm luminous flux
Zoom range: 5° - 50°
CMY colour mixing
Additional colour wheel with 8 dichroic colour filters
Rotating gobo wheel with 8 indexable/rotatable, exchangeable glass gobos + open
Static gobo wheel with 11 gobos + open
Selectable PWM frequencies up to 25 kHz for flicker-free operation
Neutrik True1-compatible inputs/outputs
OLED display with 4 buttons

LED Moving Lights

Type

Spot

Colour spectrum

Cold white

Number of LEDs

Color temperature

6800 K

LED type

300 W

Colour mixing system

CMY

Refresh rate

650 - 25000 Hz

Dispersion

5 - 50 °

Number of colours

8 + open and stepless colour wheel positioning

Number of gobos

11 fixed + 8 rotatable & inzable + open

DMX input

5-Pol XLR

DMX output

5-Pol XLR

Protocols

W-DMX (via iDMX Stick + Link)

Control

DMX512, iDMX Stick compatible, RDM

DMX mode

21-channel basic, 24-channel standard, 28-channel extended

DMX Functions

CMY, Colour wheel, Device Settings, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost, Gobo Wheel 1, Gobo wheel 1 rotation, Gobo wheel 1 rotation fine, Gobo Wheel 2, Iris, Pan/Tilt, Pan/Tilt fine, Prism 1/2, Prism Selection, Strobe, Zoom, Zoom Fine

PAN movement

540°, 630°

TILT movement

270°

Standalone modes

Master / Slave mode, User Preset 1-4

Controls

Down, Enter, Mode, Up

Indicators

Battery supply for mains-independent system settings (automatically rechargeable battery), OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

470 W

Fuse

T4AL 250 V

Power connector

TRUE1 compatible input and output (max. output current 12A)

Max. output current

9 A

Housing material

ABS plastic, Metal

Cabinet colour

Black

Protection class IP

IP20

Cooling

temperature-controlled fan

Luminous flux

13000 lm

Maximum Ambient Temperature

0 - 40 °C

Accessories (included)

2 x omega mounting, Power cord

Varenr.: A-CLAZORS2
