Autodiskant - DT-284 - CARPOWER

Autodiskant - DT-284 - CARPOWER
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for Autodiskant - DT-284 - CARPOWER
    Produktet er endnu ikke bedømt
  •
    709,00DKK ved 1 sæt/pk. med 2 stk.
Vis uden moms
Billigst på PriceRunner


Autodiskant

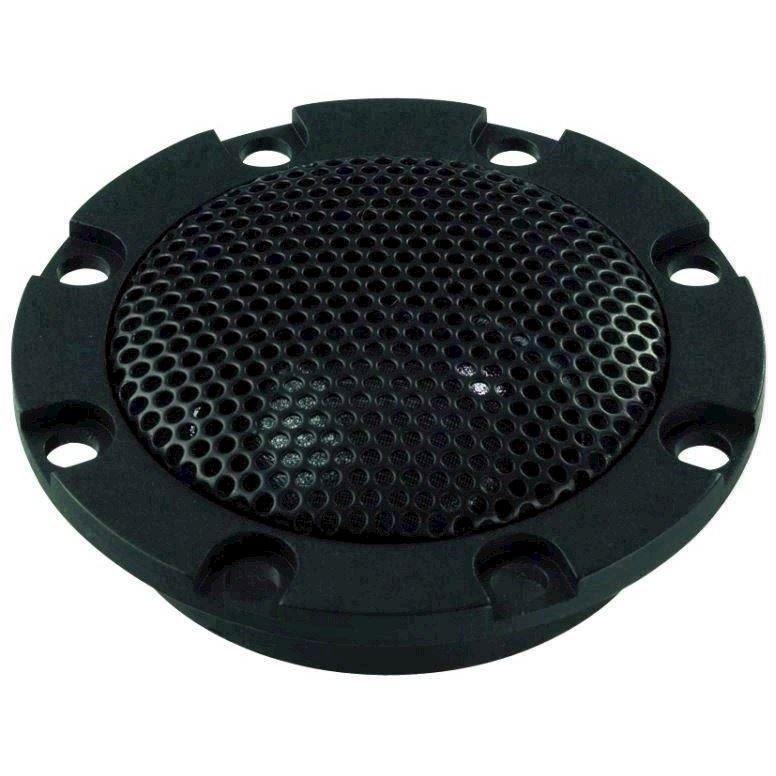

The Tweeter for Perfect Car Hi-fi Applications:
DT-284 "The Dome". This tweeter provides everything expected from a top class tweeter: a sensationally linear frequency response, high level reserves, low crossover frequency, compact size and a distinct and appealing design!
Pair of dome tweeters, 60 W, 4 Ω
  • 28 mm silk cone
  • Aluminium voice coil
  • Neodymium magnet
  • High-quality ABS housing with 8-hole screw connection
  • Perfect sound of extra low distortion
  • Highest level stability
  • Exceptionally long excursion
A crossover network is required for operation! Ideal: CDN-2X


Impedance (Z)4 Ω
Transmission method-

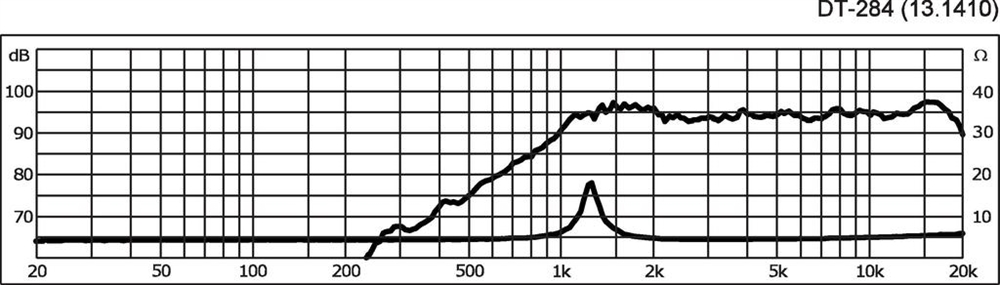

Frequency rangefx-20,000 Hz
Resonant frequency (fs)1,300 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)2,000 Hz
Power rating60 W
Peak music power output100 W
Sensitivity91 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameterØ 28 mm
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-

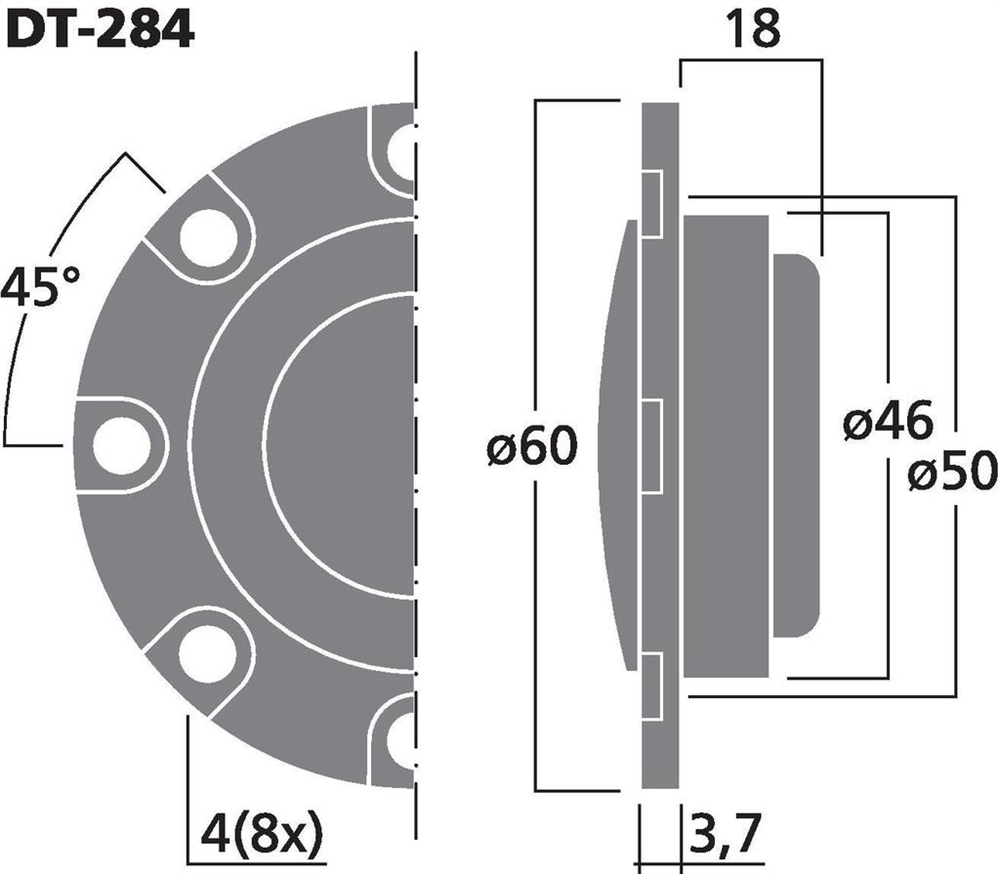

Magnet diameterØ 46 mm
Mounting cutoutØ 50 mm
Mounting depth18 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 60 x 21.7 mm
Outside diameterØ 60 mm
WidthØ 60 mm
Height-
Depth21.7 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.18 kg
Packing unit2
Type of speaker-

Varenr.: 131410
