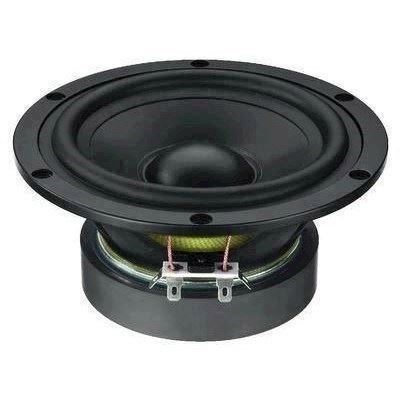

5'' højttaler - SPH-5M - MONACOR

5\'\' højttaler - SPH-5M - MONACOR
  • Ikke på lager
  • Forventes uge 32
  • Bedømmelse for 5'' højttaler - SPH-5M - MONACOR
    Produktet er endnu ikke bedømt
  •
    349,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


Hi-fi bass-midrange speaker, 80WMax, 8 ohm

Hi-fi bass-midrange speaker, 40 W, 8 Ω
  • High-quality hi-fi bass-midrange speaker of long excursion
  • Damped low-resonance polypropylene cone
  • Robust diecast aluminium basket of an elegant design with 6-hole screw connection
  • Magnet system with drilled pole core and protruding rear pole plate
  • For general applications in compact bass-reflex, TML and closed speaker systems
  • Very well-suited also as a midrange speaker in 3-way speaker systems
HOBBY HiFi 04/2012
"Impressive subwoofer down to 34 Hz."


Impedance (Z)8 Ω
Transmission method-

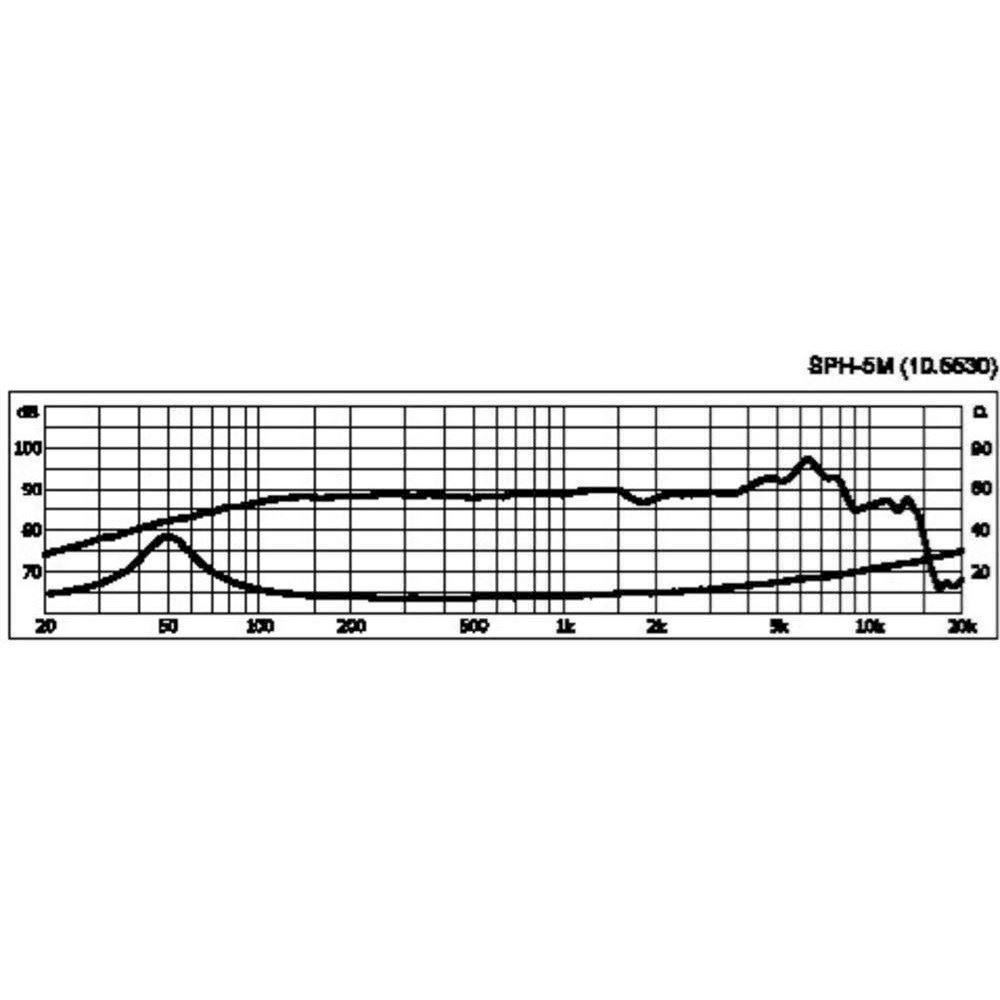

Frequency rangef3-4,000 Hz
Resonant frequency (fs)45 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating40 W
Peak music power output80 W
Sensitivity88 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)1.06 mm/N
Moving mass (Mms)11.73 g
Mech. Q factor (Qms)2.89
Electr. Q factor (Qes)0.47
Total Q factor (Qts)0.41
Equivalent volume (Vas)13.47 l
DC resistance (Re)6.3 Ω
Force factor (BxL)6.42 Tm
Voice coil induct. (Le)0.54 mH
Voice coil diameterØ 25 mm
Voice coil formeraluminium
Linear excursion (XMAX)± 3.5 mm
Eff. cone area (Sd)95 cm2
Magnet weight620 g
Magnet diameterØ 100 mm
Mounting cutoutØ 121 mm
Mounting depth70 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

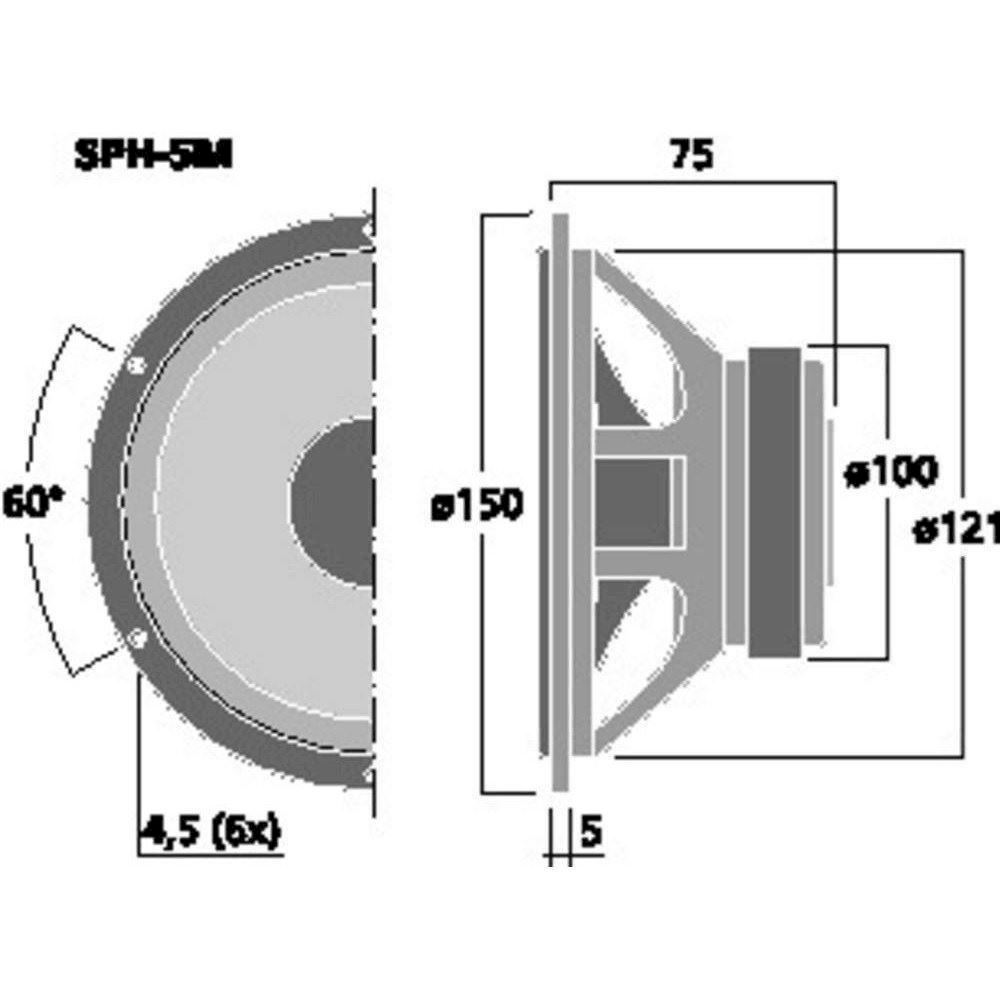

DimensionsØ 150 mm x 75 mm
Outside diameterØ 150 mm
WidthØ 150 mm
Height-
Depth75 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight1.305 kg
Packing unit1
Type of speaker5.5"


Varenr.: 105530
